Name: MakerPi ComproJet Binder Jetting 3D Printer with High Efficiency MultiMaterial IndustrialGrade Performance
Brand: MakerPi
Price: 36 USD

Home >

MakerPi ComproJet Binder Jetting 3D Printer with High Efficiency Multi-Material Industrial-Grade Performance

Categories	Binder Jetting 3d Printer
Supporting Material:	Metals, Ceramics, Sand,Polymers etc
usage:	Matel printer, Ceramics Printer, Sand printer, Polymers printer
Printhead System:	Piezoelectric printhead with negative-pressure ink delivery system
Packing Size:	656279cm
Special Functions:	Printhead cleaning, printhead moisturizing
Resolution:	Physical resolution 600 DPI,printing resolution 1200 DPI
Printing Accuracy:	Dimensional accuracy 0.1-0.2mm, layer height ≥0.03mm
Brand Name:	MakerPi
Connector Type:	USB
Printing Material:	Metals, Ceramics, Sand,Polymers, Medical Powders, Gypsum, And More
production capacity:	500units/month
application:	Prototyping
Build Material:	Metals, Ceramics, Sand
Operating System:	Windows OS, Linux, MacOS, Other
Printer connectivity technology:	USB, Wifi
voltage:	110V/220V
weight:	100
dimension(lwh):	customize
Filament Type:	Sand, Metal, Ceramics
Input Power:	Power Adapter
warranty:	1 Year
Model Number:	ComproJet
Certification:	CE Fcc RoHS
MOQ:	1
Supply Ability:	10units
Delivery Time:	30days
Print Technology:	Binder Jetting
Product Size:	700x560x620mm
Build Volume:	160x60x60mm, 50x50x50mm, 30x30x30mm
Printing Modes:	Experimental Mode,Calibration Mode,Standard Mode
Plug Specification:	US Plug, UK Plug, AU Plug, Japan Plug, EU Plug
Plate Type:	Flatbed
Place of Origin:	Guangdong, China
Price:	$36,765
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Packaging Details:	Wooden case
condition:	New
Connectivity:	Wired
Positioning Accuracy:	Printhead positioning accuracy lμm

Contact Now

Add to Cart

Company Info.

Shenzhen Soongon Technology Co., LTD

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

MakerPi ComproJet Binder Jetting 3D Printer with High Efficiency Multi-Material Industrial-Grade Performance

Parameters

Working Size	160x60x60mm;50x50x50mm(optional);30x30x30mm(optional)
Equipment Size	700x560x620mm
Resolution	Physical resolution 600 DPI, printing resolution 1200 DPI
Printing Accuracy	Dimensional accuracy 0.1-0.2mm, layer height ≥0.03mm
Printing Speed	15-35 seconds per layer
Positioning Accuracy	Printhead positioning accuracy 1μm, build area stitching accuracy 5μm
Printing Modes	Experimental Mode,Calibration Mode,Standard Mode

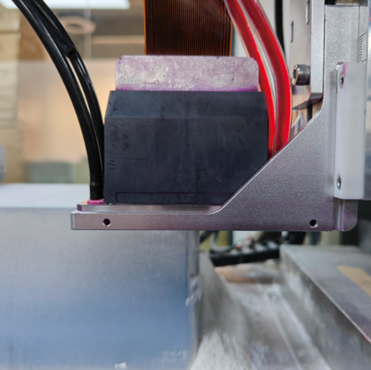

Printhead System	Piezoelectric printhead with negative-pressure ink delivery system

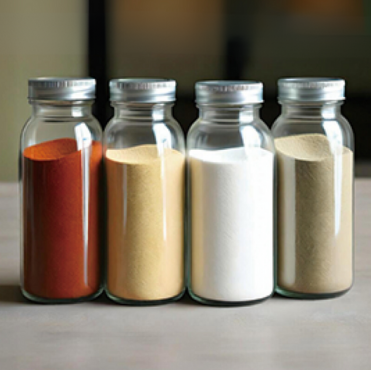

Supported Materials	Metal powders, ceramic powders, polymers, sand,, food, biological solutions, cell solutions, wax, and more
Addition Functions	Printhead cleaning, printhead moisturizing,print baking (UV,IR), and cylinder heating

Workflow

Spreading Powder Jet Adhesive

Evenly Spread A Thin Layer The Spray Head Accurately Of Powder (The Material Sprays Liquid Adheslve In

Can Be Metal, Ceramic, The Specified Area Based

Sand Casting, Polymer, Etc.) On The Sliced Data Of The

On The Printing Platform. Digital Model, Causing

Local Adhesion Of The

Power Particles.

Repeat Layer By Layer After Processing

Repeat The Steps Of Applying Remove The Printout, Powder And Spraying Eliminate The Loose Adhesive Until All Layers Are Powder That Has Not Completed. Adhered,And Enhance The Strength Through

Processes Such As

Sintering, Infiltration,

Or Curing.

Features

A.Material Diversity

Supports A Variety Of Materials Including Metals, Ceramics, Sand,Polymens, Medical Powders, Gypsum, And More.

B.High Efficiency

Adopting A Spray Head Array For Full Coverage Printing Significantly Improves Printing Speed, Making It Suitable For Largn-scale Rapid Manulacturing.

C.No Support Needed

Print Various Complex Structures Without Support.

D.Low Cost

It Has Advantages In Terms Of Equipment Cost, Usage Cost, And Maintenance Cost.

E.Avoid High Temperatures

No Need For Laser Melting Of Materials, Making It Friendly To Temperature-sensitive Materials.

F.High Solid Content

High Solid Content Results In Less Shrinkage, Higher Density, And Higher Strength After Degreasing Sintering.

Equipment Selling Points

A.Scientific Research

Desktop-size (700*560*620mm], Industrial-grade Performance,Multi-parameter, Digital, Multi-mode, Micro-experiment, Expancable,High Cost-eflectiveness.

B.Customizablo

With Independent Intellectual Property Rights, We Offer Flexible Customization Solutions To Meet Diverse Needs.

C.Expandable

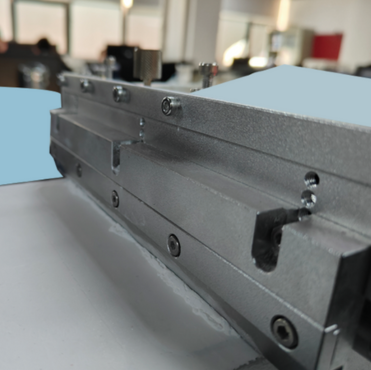

The Powder Spreading Module And Inkjet Module Are Designed Independently And Modularly For Easy Expansion,

D.Industrial-Grade Performance

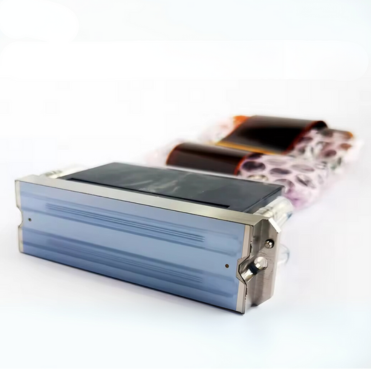

Equipped With An Industrial-grade Piezoelectric Printhead (RicohG5) System, Linear Motor System, And Ipm-level Positioning Accurcy.

E.Negative Pressure System

Effectively Prevents Ink From Flowing Or Dripping, Ensuring High Ink Viscosity Compatibility And Precite Droplet Control, Meeting The Demands For High-precision And High-stability Printing.

F.Multi-Material Compatibility

Supports A Wiide Range Of Materials, Including Metals, Ceramics,Polymers, Sand, Phammaceuticals, Foad, Biclagical Solutions, Cell Solutions, And Wax.

G.Multi-Size

Compatibility; Supports Multiple Working Dimensions, Including 160*60*60mm,50°50*50mm,And 30*30*30mm.

H.Double Powder Warehouse

Featurres A Dual-cylinder Structure With A Forming Cylinder And A Stability.Materlal Cylinder For Enhanced Convenience, Efficlency, And Stability.

Other Functions:

Print Head Cleaning, Print Head Moisturizing, Baking During Printing, Powder Warehouse Heating

Application

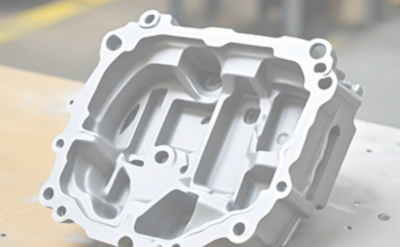

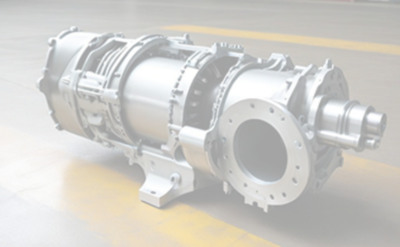

Aerospace

Production Of Complex-structured Metal Components (E.G, Aerospace Parts).

Scientific Research & Exporimontation

New Materials, New Processes, Muliti-materials, And Interdisciplinary Scientific Research Applications

Medical Field

Customized Ceramic Implants Or Bone Models.

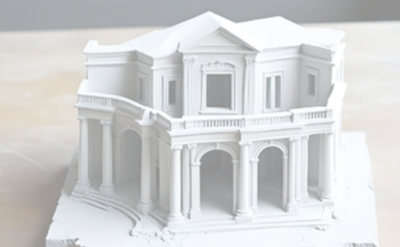

Architectural Models

Printing Architectural Prototypes Or Artistic Installations Using Gypsum Or Sand.

Foundry Industry

Rapid Manufacturing Of Sand Casting Molds And Cores (E.G., Automative Engine Cylinder Casting).

Consumer Goods

Low-cost Production Of Jewelry Or Functional Prototypes.

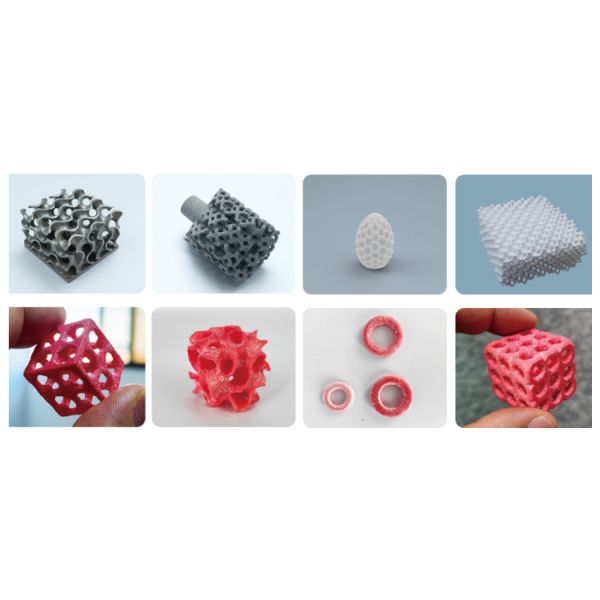

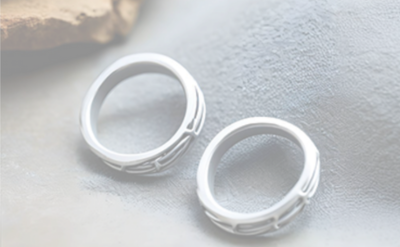

Print Product Display
