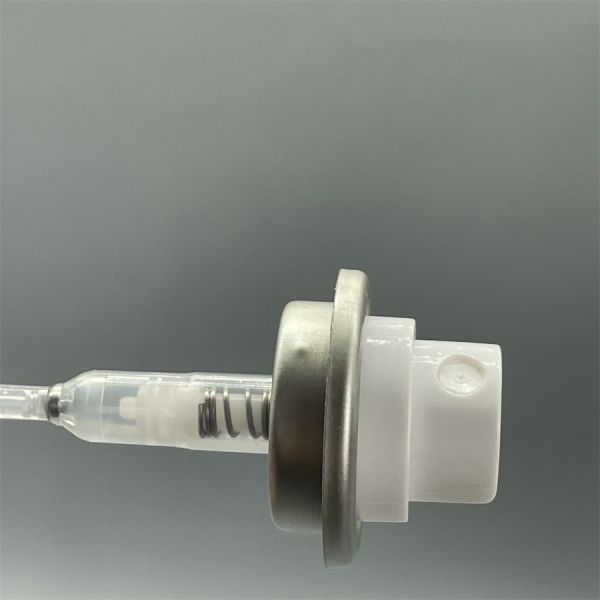

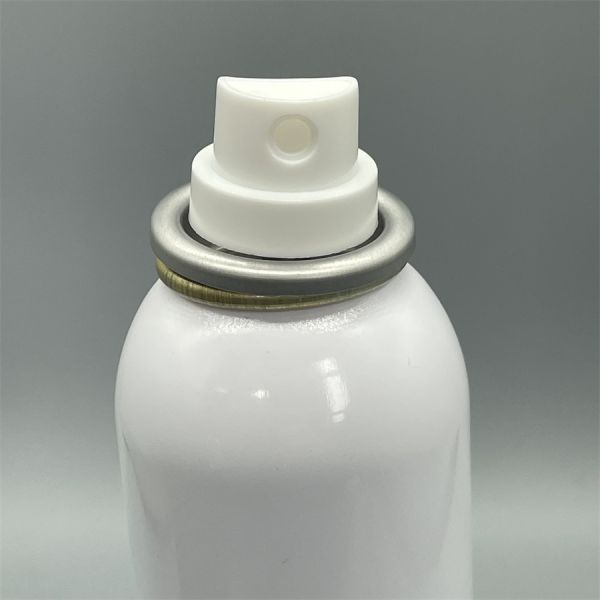

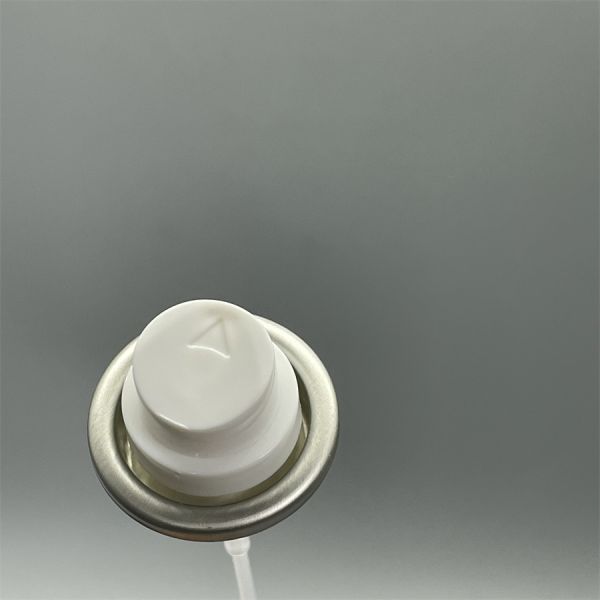

Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage
The 0.15cc precision mist pump aerosol head is designed to deliver a consistent, ultra-fine spray for a wide range of liquid formulations. Ideal for perfumes, facial mists, toners, and personal care products, it ensures even distribution while minimizing product waste.
Engineered for compatibility with standard 1-inch aerosol systems, this pump integrates seamlessly with various packaging formats. Its optimized nozzle and actuator design provide smooth, low-effort operation, allowing for precise and controlled dispensing.
Manufactured using high-quality, corrosion-resistant materials, the pump offers excellent sealing performance to prevent leakage, contamination, and evaporation helping maintain product integrity throughout its lifecycle.
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Mist Spray Pump |
| Standard Size | 1 inch (25.4mm ± 0.15mm) |
| Material | Tinplate / Aluminum |
| Dip Tube Length | Customizable to container height |
| Finish Options | Plain / Clear Lacquer / Gold Lacquer |
| Inner Opening Diameter | 25.4 ± 0.07mm |
| Outer Opening Diameter | 31.2 ± 0.1mm |
| Inner Gasket Material | Buna / Neoprene / Butyl |
| Dip Tube Material | Polyethylene |
| Component | Material | Options / Specifications |
|---|---|---|

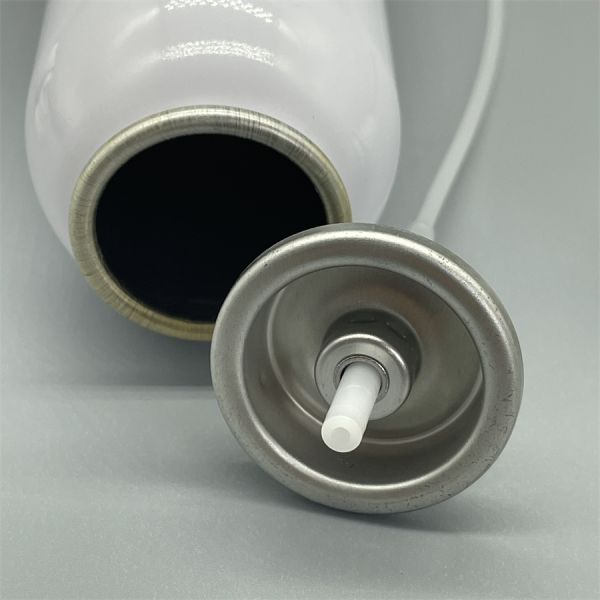

| Mounting Cup | Tinplate | With or without dimples |
| Aluminum | Gold lacquer / Microflex finish | |
| Outer Gasket | Buna | — |
| Inner Gasket | Buna / Neoprene / Butyl | — |
| Stem | Nylon | 1×0.46mm, 1×0.51mm, 2×0.51mm, 2×0.61mm, 4×0.61mm |
| Spring | Stainless Steel | — |
| Housing | Nylon | Φ4.3mm (Spray Area: 14.52mm²) |
| VPH Spray Area | — | 6.7mm² |
| Steel Ball | Stainless Steel | Φ3.5mm |




Q: Is the pump easy to clean?
A: Yes, the simplified internal structure allows for easy cleaning
and maintenance.
Q: What is the service life of the pump?
A: It is designed for long-term use under normal conditions,
depending on usage frequency and formulation compatibility.
Q: Can it be customized for different containers?
A: Yes, certain components can be tailored to meet specific
container requirements.
Q: Will it affect the fragrance or formulation?
A: No, the materials are designed to remain neutral and preserve
the original formulation quality.
|
