Durable Roll Shutter Door Machine With 16mm Wall Plate PLC Control System

Categories Roller Shutter Door Roll Forming Machine
Place of Origin: CHINA
Brand Name: HENGFU
MOQ: 1 Piece
Packaging Details: Plastic Film & Steel Wire Fixed
Delivery Time: 45Days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Tile Type: Galvanized Steel / Color Steel
Certification: CE, SGS
Condition: New
Customized: Customized
Usage: Roller Shutter Door, Garage Door
Transmission Method: Gear Transmission
Control System: PLC
Transport Package: Plastic Film & Steel Wire Fixed
Hydraulic Pump Power: 4kw
Main Motor Power: 4kw
Frame Thickness: 16mm Wall Plate
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

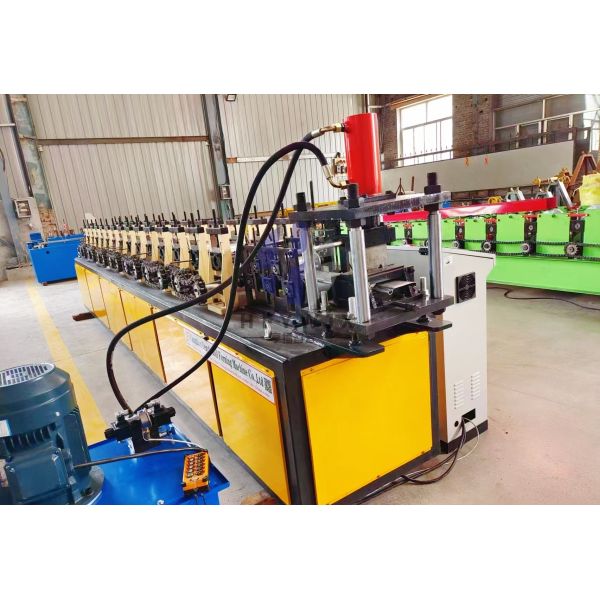

Durable Roll Shutter Door Machine With 16mm Wall Plate PLC Control System

Durable Long Service Life Roller Shutter Door Roll Forming Machine

The Roller Shutter Door Roll Forming Machine is a brand-new, high-performance production equipment designed for door manufacturing and construction industries. It is engineered to efficiently and continuously produce high-quality roller shutter door profiles, delivering a reliable, automated solution for modern door production workshops.

Built for durability, the machine features a heavy-duty frame made of 80×80 square tubes with 15 forming passes. Its 16mm-thick wall plate and Φ50mm solid 45# steel main shafts ensure excellent structural rigidity, even during long-term high-intensity operation.

Powered by a stable gear transmission system, it runs smoothly with a 4kW main motor and a 4kW air-cooled hydraulic pump station. It supports a steady production speed of 15-16m/min, effectively boosting efficiency and shortening manufacturing cycles.

Equipped with post-forming double-blade shearing for burr-free cutting, it is controlled by a Delta PLC and frequency conversion system, ensuring a cutting length tolerance of ≤1mm. Additional features like 35mm galvanized pull rods, Type 4 cycloidal reducer, and multilingual support (Chinese/Russian) further enhance its stability and ease of use.

Technical Specifications
Model NORoller Shutter Door Roll Forming Machine
ConditionNew
The machine itself80*80 square tube heavy frame
Number of molding passes15
Shaft material45# steel (solid shaft, Φ50mm)
Transmission structureGear transmission
Frame thickness16mm wall plate
Hydraulic pump station4kw (with air cooling)
Cutting section motor4kw main motor
Production speed15-16m/min
Control systemIndustrial PLC + frequency control (Delta brand)
Cutting methodPost-forming double-blade shearing
Pull rod35mm galvanized
ReducerType 4 cycloidal series
Operation languageChinese, Russian
Product Gallery
Frequently Asked Questions
Can the machine produce stainless steel sheets? What are the requirements for the equipment?
Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.
What are the available cutting methods?
Hydraulic Flying Shear
Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
