P32 Automatic 2" Hydraulic Hose Crimping Machine with Quick Change Tool

Categories Hose Crimping Machine
Brand Name: MENSION
Model Number: P32
Certification: CE RoHS
Place of Origin: CN
MOQ: 1 Set
Price: Contact Us
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Supply Ability: 1000 Sets Per Month
Delivery Time: 2 - 7 Working Days
Packaging Details: One Plywood For One Set
Crimping Range: 14 - 87mm
Hose Size: 1/4 - 2.5inch
Die Sets: 13
Color: Blue
Max. Opening: 31mm
Crimping Force: 650T
Product Name: P32 AC Hose Crimping Machine
Application: Workshops · Constr. Mach · Hyd. Repair · Mining Equip
System Pressure: 31.5Mpa
Power: 3.75KW
Size: 650*550*1360mm
Weight: 310Kg
Wty: 3Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

P32 Automatic 2" Hydraulic Hose Crimping Machine with Quick Change Tool

P32 AC Hose Hydraulic Crimping Machine
The P32 hydraulic hose crimping machine is designed for large-scale hydraulic hose assembly.Its high-quality components deliver superior durability and reliability.The quick-change die system shortens setup time and greatly boosts productivity for industrial use.
Key Features
  • High production efficiency for hose crimping operations
  • Quick and easy die change and installation process
  • Optional emergency stop device for enhanced safety
  • Numerical control hose crimper with precision operation
  • Crimps up to 2-inch 4-layer hydraulic hoses and 3-inch industrial hoses
  • Rapid crimping and retracted process cycles
  • Constructed with high-quality materials and renowned brand components
  • Delivers precision-formed crimping results
Technical Specifications
ModelP32 AC Hose Crimping Machine
Crimping Range14 - 87 mm
Crimping Force650 Tons
Hose Size1/4 - 2.5 inch
Maximum Opening31 mm
Die Sets13
Die Set TypeP32
System Pressure31.5 MPa
Accuracy0.01 mm
Control SystemMS
Standard Voltage220 V
Motor Power3 KW
Dimensions (L x W x H)650 x 550 x 1360 mm
Weight310 kg
P32 AC Hose Crimping Machine overview
P32 Hose Crimper Die Sets
Die NumberCrimping RangeLength
6 *6 ... 8 mm55 mm
8 *8 ... 10 mm55 mm
10 *10 ... 12 mm55 mm
12 *12 ... 14 mm55 mm
1414 ... 16 mm55 mm
1616 ... 19 mm55 mm
1919 ... 22 mm55 mm
2222 ... 26 mm70 mm
2626 ... 30 mm70 mm
3030 ... 34 mm70 mm
3434 ... 39 mm75 mm
3939 ... 45 mm75 mm
4545 ... 51 mm90 mm
5151 ... 57 mm90 mm
5757 ... 63 mm100 mm
6363 ... 69 mm110 mm
6969 ... 74 mm110 mm
74 *74 ... 78 mm110 mm
78 *78 ... 87 mm110 mm
Note: * indicates non-standard die sets. Customized die sets are available upon request. Special voltage configurations including 110V, 208V, 240V, and 415V are available.
Optional Features
  • UC control system upgrade
  • Position limit device for enhanced precision
Forged from top-grade materials
Supplier of well-known brands
Top driving force
Manual control panel
Foot switch control, freeing up your hands
Precision control with millimeter-level adjustment
High-strength premium mold with quick change function

Crimping Applications
The P32 hydraulic hose crimping machine is designed for comprehensive crimping applications across various industrial hose types and sizes.

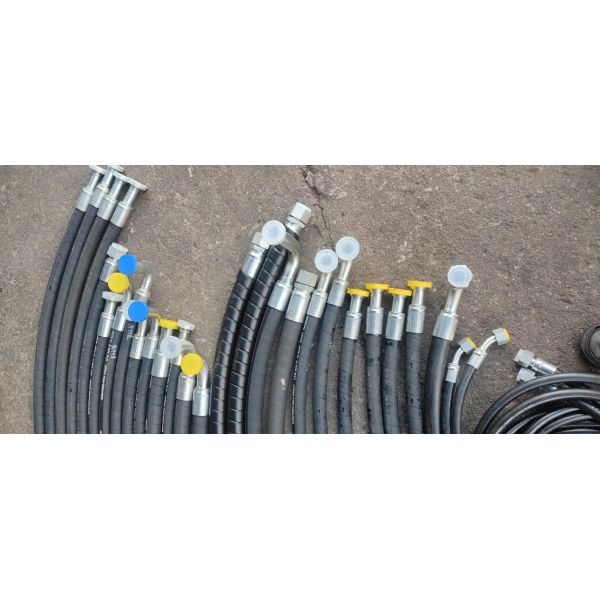

P32 crimping machine applications and use cases P32 hose crimping machine in operation
