| Categories | M8 Connectors |
|---|---|
| Brand Name: | KRONZ |
| Model Number: | KAWPN32X00/0032N/0032/16X16N/16X16 |
| Certification: | CE |
| Place of Origin: | Guangdong, China |
| MOQ: | 5 |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 100000 pieces per month |
| Delivery Time: | 5-8 Working Days |
| Packaging Details: | Polybag Packing |
| Input Power: | 2W |
| Input Voltage: | 24VDC (±25%) |
| Input Current: | 3mA |
| Output Current: | Max. 500mA |
| Isolation Voltage: | 500V |
| Isolation Method: | Optocoupler |
| Company Info. |
| Kronz (guangzhou) Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

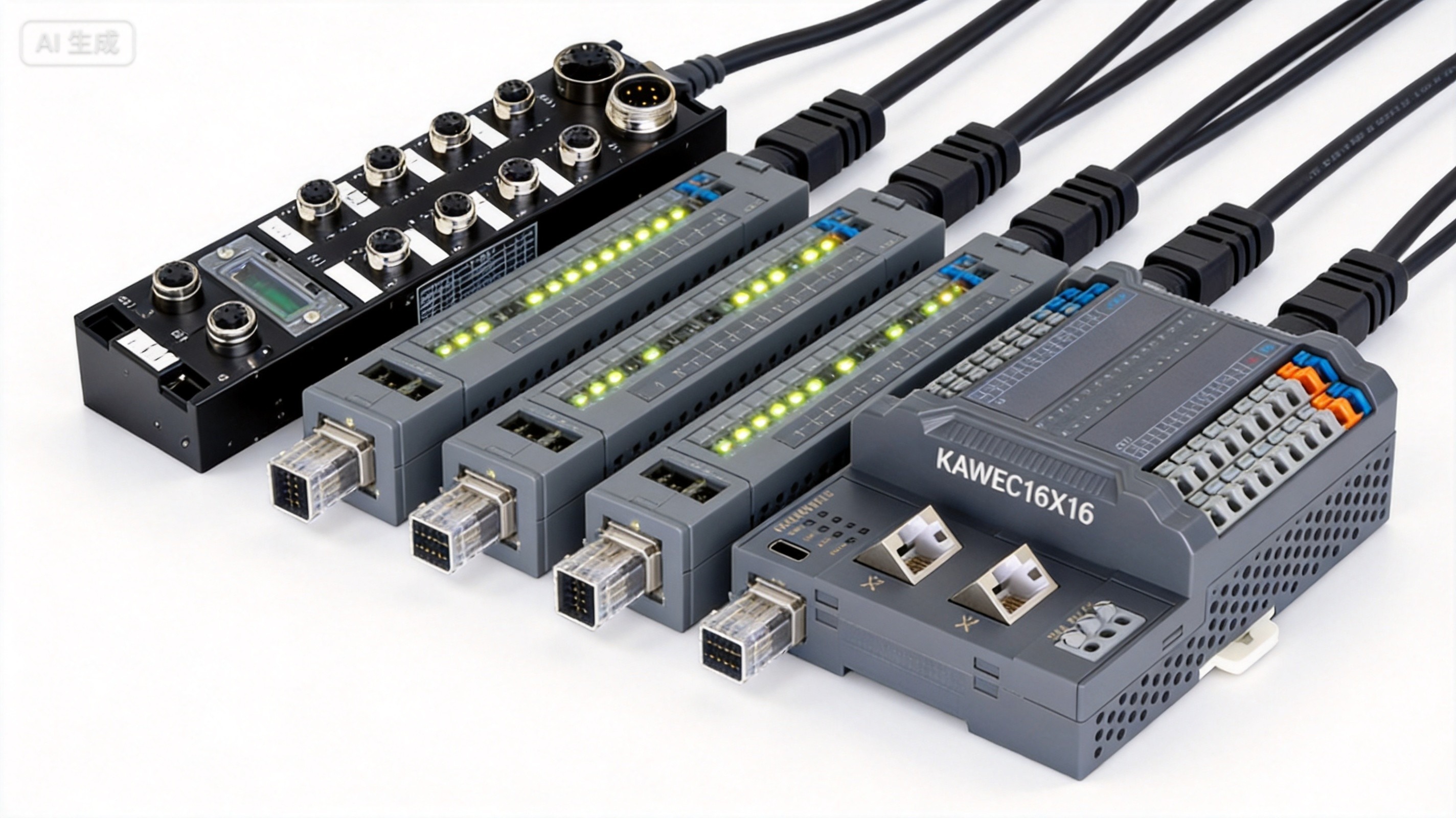

The KAWEC Series EtherCAT Digital I/O Modules from KRONZ are built for industrial automation systems that demand reliable real-time communication. These modules support EtherCAT protocol for fast data exchange, offering multiple configurations to match different application needs.
The lineup includes three types: 32-channel digital input modules, 32-channel digital output modules, and 16DI+16DO mixed I/O modules. Both NPN and PNP output types are available across the range.
All modules mount on standard 35mm DIN rails and feature compact 100 x 100 x 42.5mm form factors. The dual RJ45 ports (X1/X2) plus Type-C interface allow flexible network wiring in control cabinets.
| Model | Type | DI | DO | Output Type |
|---|---|---|---|---|
| KAWEC32X00 | Digital Input Module | 32 | -- | -- |
| KAWEC0032N | Digital Output Module | -- | 32 | NPN |
| KAWEC0032 | Digital Output Module | -- | 32 | PNP |
| KAWEC16X16N | Digital I/O Module | 16 | 16 | NPN |
| KAWEC16X16 | Digital I/O Module | 16 | 16 | PNP |
| Specification | Value |
|---|---|
| Input Power Consumption (MAX) | 2W |
| Input Voltage | 24VDC (±25%) |
| Input Channels | 32 (DI modules) / 16 (mixed) |
| Output Channels | 32 (DO modules) / 16 (mixed) |
| Input Type | NPN/PNP |
| Output Type | NPN or PNP |
| Input Logic 1 Signal | 15~30V |
| Input Logic 0 Signal | -3~3V |
| Output Logic 1 Signal | 15~30V |
| Output Logic 0 Signal | -3~3V |
| Input Current (Typical) | 3mA |
| Output Current (Typical) | Max. 500mA |
| Isolation Method | Optocoupler Isolation |
| Isolation Voltage | 500V |
| Accreditation | CE |
| Dimensions | 100 * 100 * 42.5mm |
| Operating Temperature | -10~55°C |
| Storage Temperature | -20~80°C |
| Protection Rating | IP20 |
| Protocol | EtherCAT |
| Interface | 2*RJ45 (X1/X2) + Type-C |
| Mounting | DIN Rail (35mm) |
KRONZ (Guangzhou) Electronics Co., Ltd. is headquartered in Guangzhou, China. The company focuses on fieldbus communication solutions and manufactures industrial control modules supporting EtherCAT, PROFINET, EtherNet/IP and other protocols. KRONZ products serve automation applications across multiple industries worldwide.
|
