Outdoor Front Service LED Display Flip Front Open Panel Wall Mounted Billboard

Categories Front Service LED Display
Brand Name: Bako Vision
Model Number: Front Service LED Billboard
Certification: CE
Place of Origin: China
MOQ: 1 Square Meter
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000sqm/ Month
Delivery Time: 15~20 days
Packaging Details: Plywood case / Flight Case
Panel Size: 1280 x 1280mm or customized
Pixel Pitch: 4mm, 5mm, 6mm, 8mm, 10mm
Maintenance: Full front access
Material: Steel / Aluminum
Control: On line or off line
Installation: Wall mounting / Pillar standing
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Outdoor Front Service LED Display Flip Front Open Panel Wall Mounted Billboard

Front Service Outdoor LED Display Flip Front Open Panel Wall Mounted Billboard


Description:

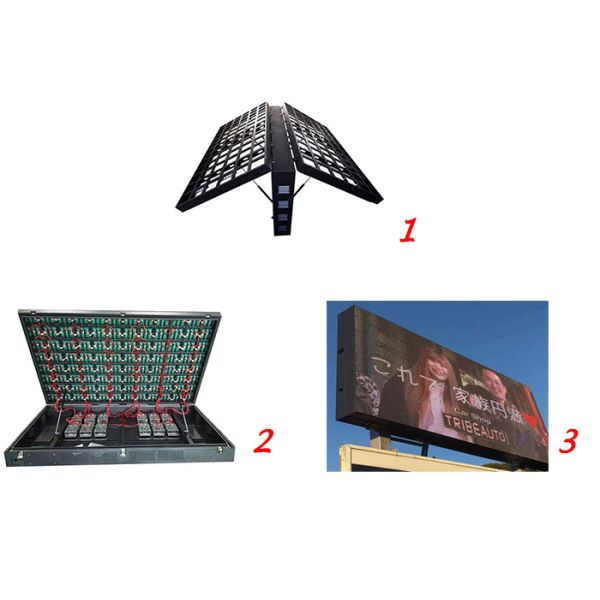

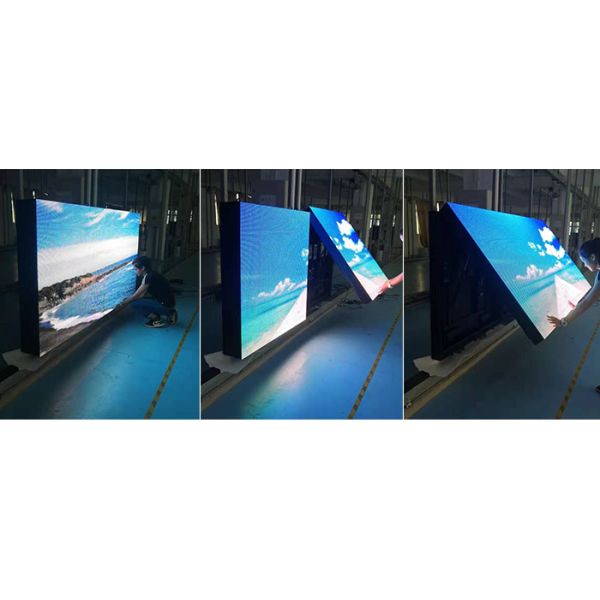

1. Flip front open cabinet, no need to reserve maintenance space


2. IP65 Front & Back


3. Hydraulic support structure for easy maintenance


4. Available Pitch : 3mm, 4mm, 6mm, 8mm, 10mm


Parameters:


Physical Pitch4mm5mm6.67mm8mm
Pixel ConfigurationSMD 1818SMD 2727SMD 2727SMD 2727
Pixel Density62,500 pixels/m²40,000 pixels/m²22,376 pixels/m²15,625 pixels/m²
Module Dimensions (W × H) (mm)320 × 160320 × 160320 × 160320 × 160
Panel Dimensions (mm)
NO.of Modules Per Panel (W × H)3 × 63 × 63 × 63 × 6
Physical Resolution of Module (W × H)80 × 4064 × 3248 × 2440 × 20
Physical Resolution of Panel (W × H)240 × 240192 × 192144 × 144120 × 120
Panel MaterialSteel / AluminumSteel / AluminumSteel / AluminumSteel / Aluminum
Weight (m²)65 / 45kg65 / 45kg65 / 45kg65 / 45kg
Gray Scale16 bit16 bit16 bit16 bit
Colours281 trillion281 trillion281 trillion281 trillion
Contrast Ratio2,000 : 12,000 : 12,000 : 12,000 : 1
Average Power Consumption360 W/m²360 W/m²360 W/m²360 W/m²
Max Power Consumption900 W/m²900 W/m²900 W/m²900 W/m²
Brightness>6,500 nits>6,500 nits>6,500 nits>6,500 nits
Refresh Rate>1,920 Hz>1,920 Hz>1,920 Hz>1,920 Hz
Viewing Angle160°(V)140°(H)160°(V)140°(H)160°(V)140°(H)160°(V)140°(H)
Expected Lifetime100,000 Hrs100,000 Hrs100,000 Hrs100,000 Hrs
ServicingFrontFrontFrontFront
IP RatingIP65IP65IP65IP65
Operating Temp/Humidity-20℃- 50℃ / 10% - 90%-20℃- 50℃ / 10% - 90%-20℃- 50℃ / 10% - 90%-20℃- 50℃ / 10% - 90%
Storage Temp/Humidity-20℃-50℃ / 10% - 90%-20℃-50℃ / 10% - 90%-20℃-50℃ / 10% - 90%-20℃-50℃ / 10% - 90%
Scan Method1/16 Scan1/16 Scan1/16 Scan1/16 Scan



Project Reference:



LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.


BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.


BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.


BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
