| Categories | Flexible LED Display |
|---|---|
| Brand Name: | Bakovision |
| Model Number: | BS Series |
| Certification: | CE ETL FCC CCC |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | $20/pc |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10,000 sqm/month |
| Delivery Time: | 15 days |
| Packaging Details: | Wooden case or flight case |
| Physical Pitch: | 2/2.5/3/4 mm |
| LEDs: | SMD2121 |
| Expected Lifetime: | 100,000Hrs |
| Driving Method: | 1/8 |
| Servicing: | Front |
| Viewing Angle: | 160°/140° |
| Refresh Rate: | >1920Hz |
| Brightness: | >1500nits |
| Company Info. |
| LED Vision Technology Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Ultra Thin Soft Ribbon Rubber Flexible LED Display for any Shape and Size
Specification:
| Physical Pitch | 2.5mm | 3mm | 4mm | 6.66mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 160,000 pixels/Sqm | 111,111 pixels/Sqm | 62,500 pixels/Sqm | 22,545 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 240 x 120 | 240 x 120 | 240 x 120 | 320 x 160 |
| Panel Dimensions (mm) | Custmized | Custmized | Custmized | Custmized |
| Physical Resolution of Module (W x H) | 96 x 48 | 80 x 40 | 60 x 30 | 48 x 24 |
| Weight | 8.2 kg/Sqm | 8.2 kg/Sqm | 8.2 kg/Sqm | 8.2 kg/Sqm |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 9W | 10W | 10W | 10W |
| Max Power Consumption | 12W | 13W | 13W | 13W |
| Brightness | >1,000nits | >1,000nits | >1,500nits | >1,500nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Driving Method | 1/40 | 1/40 | 1/8 | 1/8 |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 40 | IP 40 | IP 40 | IP 40 |
| Certification | CCC, CE, RoHS | CCC, CE, RoHS | CCC, CE, RoHS | CCC, CE, RoHS |
| Operating Temp/Humidity | -20℃ - 60℃ / 10℃ - 90℃ | -20℃ - 60℃ / 10℃ - 90℃ | -20℃ - 60℃ / 10℃ - 90℃ | -20℃ - 60℃ / 10℃ - 90℃ |
| Storage Temp/Humidity | -40℃ - 80℃ / 10℃ - 90℃ | -40℃ - 80℃ / 10℃ - 90℃ | -40℃ - 80℃ / 10℃ - 90℃ | -40℃ - 80℃ / 10℃ - 90℃ |
Features

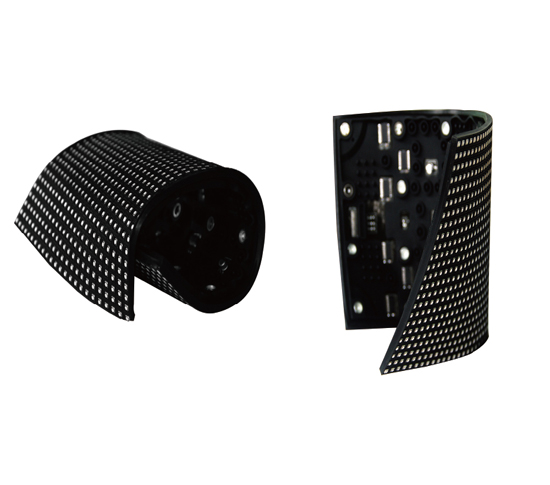

1. Durable soft rubber module for any creative shape and size. Convex, concave and twisted available.

2. Ultra thin and lightweight. Only 0.18kg per module, 5mm thickness, saving space, shipping cost and installation cost.

3. Creative and customized installation forms.

4. Integrated SMD, IC, Circuit for easy maintenance and heat dissipation.
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

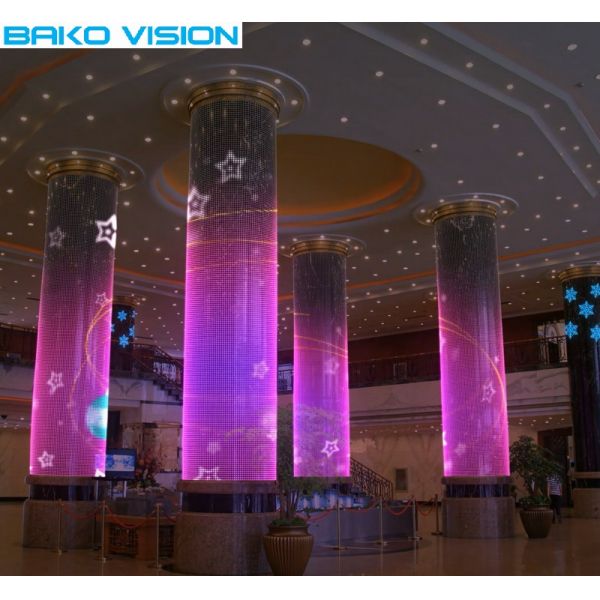

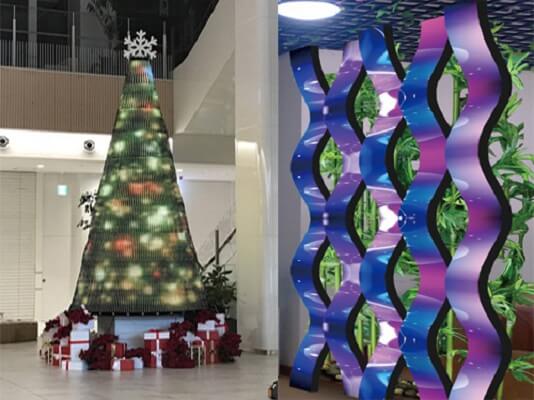

Case

Why choose us?
1. Superior quality
We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.
2. Attractive design
Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.
3. Professional consulting services
Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.
4. Perfect after-sales services
Tags: Flexible LED Display, Soft Ribbon Rubber
|
