PCBA Consumer Electronics Desktop Vinyl Cutter SMT Printed Circuit Board Assembly

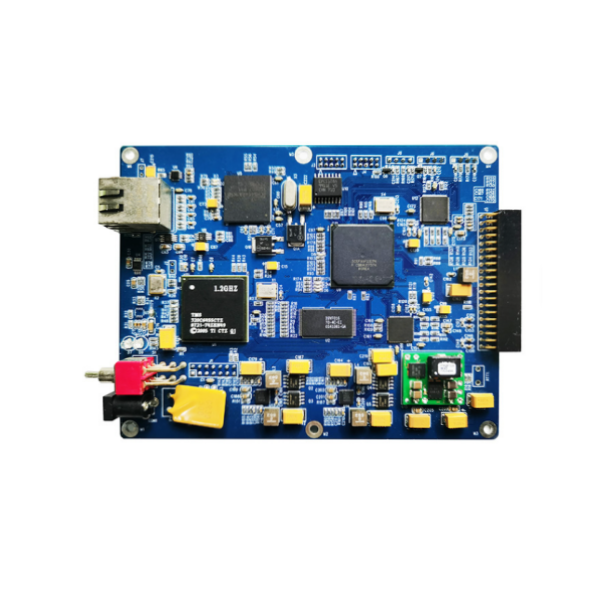

PCBA Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

PCBA Applications

• Sticker and Decal Production: Cuts custom shapes for laptops and windows.

• Heat Transfer Vinyl (HTV) : Prepares designs for t-shirts and bags.

• Signage Lettering: Produces adhesive letters for storefronts.

• Card Making and Scrapbooking: Cuts decorative paper elements.

• Prototype Stencil Cutting: Creates masking stencils for painting.

• Small Business Merchandise: Makes labels and logos in-house.

• Classroom Crafts: Supports school art and STEM projects.

PCBA Features

1. Stepper Motor Drivers: Controls X and Y axis movement precisely.

2. Servo/PWM Cutter Control: Raises/lowers blade with adjustable force.

3. Optical Sensor: Detects registration marks for print‑then‑cut.

4. Microcontroller Unit: Interprets HPGL or G‑code commands.

5. USB Interface: Receives design files from computers.

6. SD Card Reader: Enables standalone operation without PC.

7. Limit Switch Inputs: Homes axes and prevents over‑travel.

8. Blade Offset Calibration: Adjusts for vinyl thickness and tip size.

9. Power Management: Drives motors and logic from 12‑24V adapter.

10. Status LED Driver: Indicates idle, cutting, or error states.
