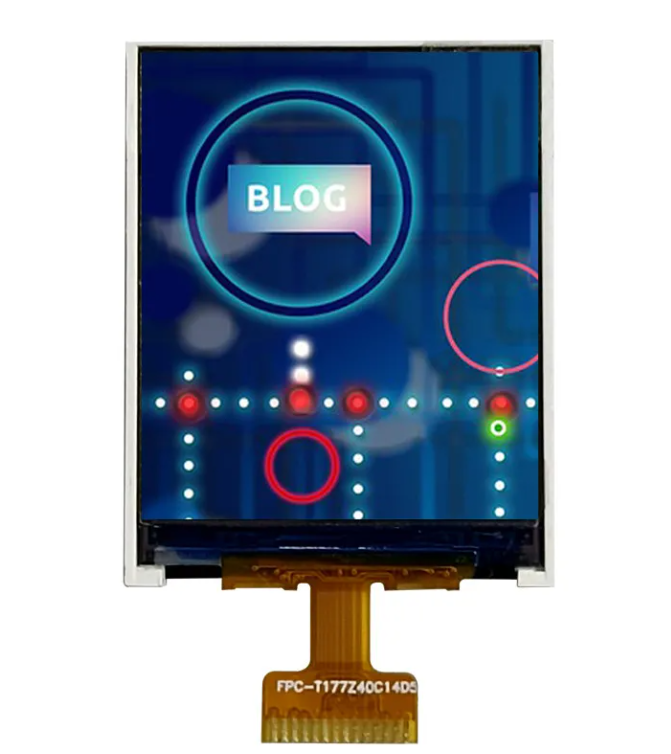

1.77 Inch SPI 128x160 ST7735 Driver Touch Screen
Product Specifications
| Product: | 1.77 Inch TFT Display | Resolution: | 128x160 |
| Touch Screen: | Optional | Cover Glass Dimension: | Customizable |
| Viewing Direction: | 12:00 | Interface: | SPI |
| Pin Number: | 14 Pins | Connection: | Soldering |
| Surface Luminance: | 200 Cd/m² | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | -20°C To +70°C | Storage Temp.: | -30°C To +80°C |
Product Introduction
This is a 1.77-inch TFT color touch screen with a resolution of
128×160 pixels. It uses the ST7735S driver chip and communicates
via SPI serial interface. It integrates resistive or capacitive
touch panels and is specifically designed for miniaturization and
low-power embedded scenarios.
Core Parameters
- Display size: 1.77 inches (effective display area approximately
28.03×35.04mm)
- Resolution: 128 (width) × 160 (height) pixels
- Driver chip: ST7735S (includes built-in display RAM, power and
clock circuits)
- Communication interface: 3-wire / 4-wire SPI (up to 15MHz),
compatible with 3.3V/5V master controller
- Touch type: Optional resistive (low cost) or capacitive (high
sensitivity) touch screen
- Display color: 65K/262K true color (RGB565 format)
- Operating voltage: 2.6-3.3V (typical 2.8V), industrial-grade
temperature range -20°C to +70°C
- Brightness / viewing angle: Standard 200-400cd/m², TN panel viewing
angle approximately 120°
Main Features
- Compact and lightweight: Module thickness approximately
2.15-4.25mm, suitable for compact space integration
- SPI interface simplifies wiring: Only 4-5 control lines required,
saving MCU pins and PCB area
- Low power consumption: Single power supply, no additional driver
circuit needed, suitable for battery-powered devices
- High compatibility: Supports mainstream embedded platforms such as
Arduino, STM32, and 51 microcontrollers, with abundant sample
programs
- Anti-glare and ESD protection: Some models have anti-glare
treatment on the surface, suitable for outdoor viewing; ESD
protection up to 8KV
Main Applications
- Consumer electronics: Smart watches, bracelets, MP3/MP4 players,
Bluetooth earphone charging cases display, small game consoles
- Industrial control: Portable instruments, sensor terminals, PLC
operation panels, equipment status display, industrial remote
controllers
- Medical equipment: Blood glucose meters, electrocardiogram
monitors, portable ultrasound, small medical terminals
- Smart home: Smart switch panels, thermostats, doorbell displays,
small household appliances (rice cookers, blenders) operation
interfaces
- Vehicle and outdoor: Motorcycle/electric vehicle dashboards, GPS
navigation, outdoor detectors, handheld terminals
- Education and makers: Arduino/Raspberry Pi development boards for
learning, DIY electronic projects, course design demonstrations

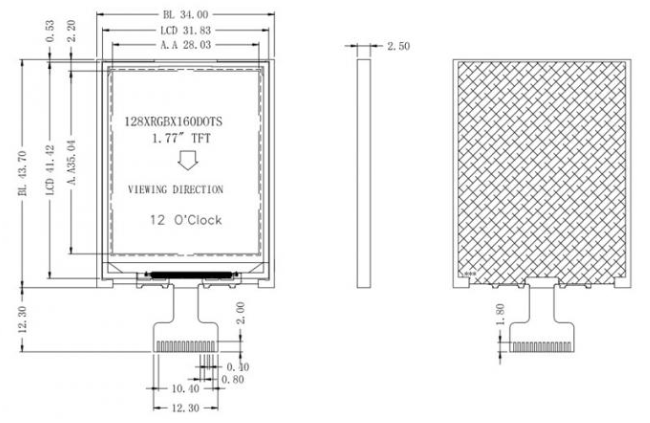

Product Drawing
