Rexroth A10VSO71DRG Variable Displacement Axial Piston Pump with High Efficiency and Compact Design

Rexroth A10VSO71DRG Variable Displacement Axial Piston Pump with High Efficiency and Compact Design

Rexroth A10VSO71DRG Variable Displacement Axial Piston Pump with High Efficiency and Compact Design
Rexroth A10VSO71DRG Variable Displacement Axial Piston Pump with High Efficiency and Compact Design
Categories Hydraulic Motor
Brand Name: OUSTER
Model Number: A10VSO71
Place of Origin: CHINA
MOQ: 1
Price: 288-1518
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 500PCS/MONTH
Delivery Time: 2-7DAYS
Packaging Details: WOODEN BOX
Color: metal color
Warranty: one year
Delivery time: In stock /based on warehouse situation
Packge: paper box/wooden box
Sizes: standard design
Material: steel iron and copper
Shipping way: By courier/by air/by sea
Ship cost: not include
Painting: non/blue/black/grey/as your like
Application Fields: Construction machinery
Contact Now
Company Info.
QUZHOU OUSTER HYDRAULIC CO.,LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Rexroth A10VSO71DRG Variable Displacement Axial Piston Pump with High Efficiency and Compact Design

A10VSO71 Variable Displacement Axial Piston Pump
High-performance hydraulic solution for industrial applications featuring compact design, high efficiency, and reliable performance.
Product Overview
The Rexroth A10VSO is an axial piston variable displacement hydraulic pump renowned for its compact design, high efficiency, and reliable performance. Widely used in engineering machinery, ships, and industrial equipment.
Technical Specifications
Core Parameters
  • Displacement: 28-140 cm³/rev (140 cubic centimeters per revolution)
  • Rated Pressure: 32 MPa (320 bar)
  • Maximum Pressure: 350 bar
  • Applicable Medium: Hydraulic Oil
  • Temperature Range: 30°C to 90°C
  • Installation: Flange Mounting
Working Principle
Variable displacement achieved by changing the swashplate angle, enabling stepless adjustment of pressure and flow rate output.
Key Features
  • High efficiency with advanced axial piston design
  • Smooth operation and long service life
  • Variable control for automatic or manual flow adjustment
  • Energy-efficient operation reducing power loss
  • Compact and lightweight design for easy installation
  • Compatible with both open and closed hydraulic systems
Applications
Ideal for equipment requiring stable and reliable hydraulic power sources:
  • Marine: Deck machinery (anchors, winches), servo systems
  • Construction Equipment: Concrete pump trucks, rollers, pavers
  • Industrial Machinery: Automated production lines requiring efficient hydraulic drive
Product Configuration
Available in multiple versions and configurations:
Standard Versions
Size (NG)1828457188100140
Standard VersionAvailableAvailableAvailableAvailableAvailableAvailableAvailable
High-speed Version--Available-Available-H
Control Options
Control TypeCode
Two-point control, direct operatedDG
Pressure controller hydraulicDR
Flow controller hydraulic (X-T open)DFR
Pressure-flow power controlDFLR
Hydraulic Fluid Requirements
Designed for operation with HLP mineral oil according to DIN 51524. Optimal operating viscosity range: 36 to 16 mm²/s.
Viscosity and Temperature Guidelines
OperationViscosityTemperature
Cold Start≤ 1600 mm²/s≥ -40°C
Continuous Operation400 to 10 mm²/s-25°C to +110°C
Short-term Operation≥ 7 mm²/sMaximum 115°C
Note: Maximum component temperature should not exceed 115°C. Maintain cleanliness level of at least 20/18/15 according to ISO 4406.
Product Images

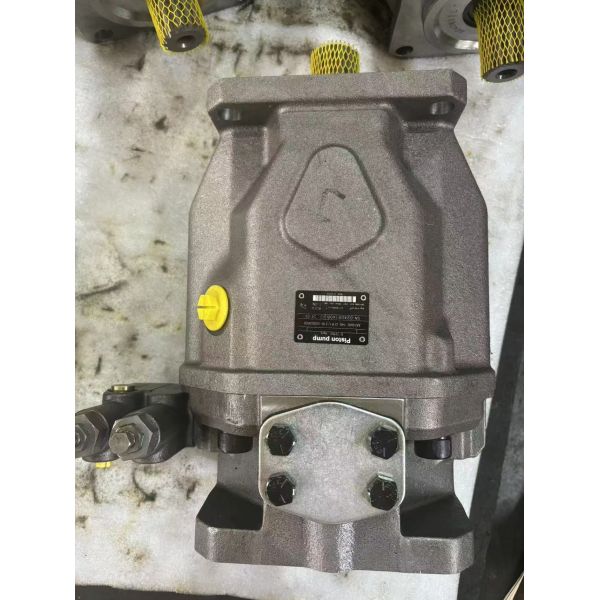

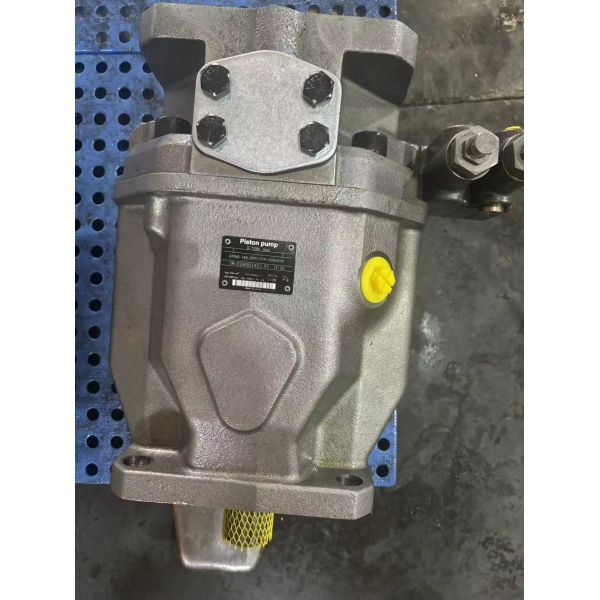

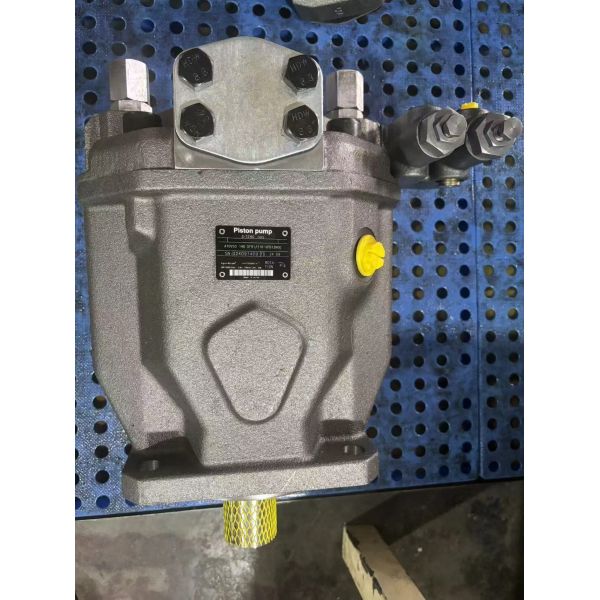

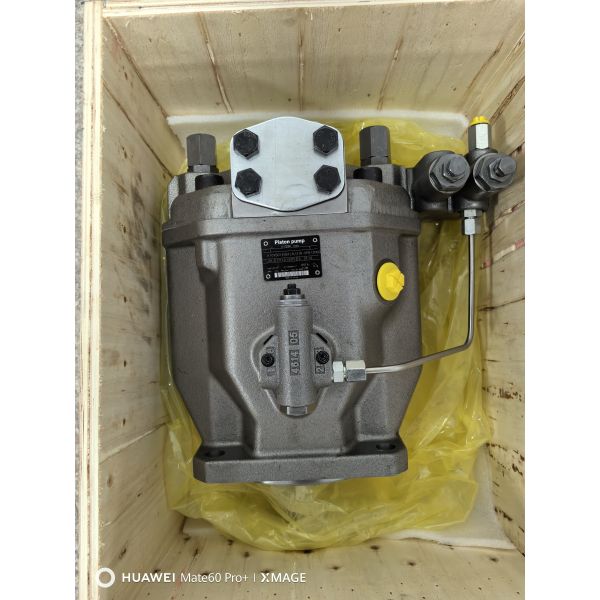

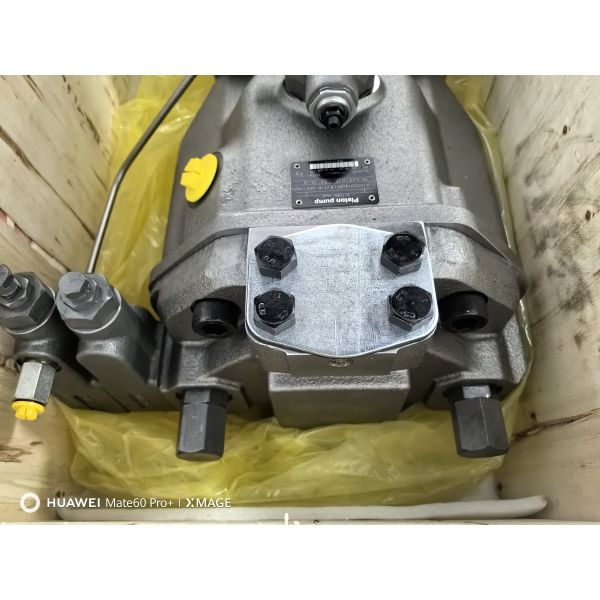

Rexroth A10VSO hydraulic pump front view Rexroth A10VSO hydraulic pump side view Rexroth A10VSO hydraulic pump technical details A10VSO pump installation diagram A10VSO pump cross-section A10VSO pump components
