PVC Profile Extrusion Line With Synchronized Haul-off For Multi Profiles

Categories PVC Profile Extrusion Line
Brand Name: LB
Model Number: LB-108
Certification: CE,ISO9001
Place of Origin: ZHANGJIAGANG
MOQ: 1 SET
Price: Negotiable(USD,EUR)
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Delivery Time: 45 WORKING DAYS
Packaging Details: STANDARD PACKAGE
Profile Size: ACCORDING TO CUSTOMERS' DRAWING
Application: Production of PVC profiles for windows, doors, pipes, and other construction materials
Calibration Table: SIX MTERS LONG
Mats Materials: PVC
Controlsystem: PLC control system with touch screen
Extruder Model: CONICAL TWIN SCREW EXTRUDER
Power: 15-25 KW
Panel Thickness: 6, 7, 8 ,9 mm
Dimentions: 24*1.5*2.6m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PVC Profile Extrusion Line With Synchronized Haul-off For Multi Profiles

PVC Profile Extrusion Line With Synchronized Haul-off For Multi Profiles

This specialized PVC profile production line is engineered to manufacture diverse PVC profiles with precision. Custom solutions and molds are developed based on specific drawing sections of PVC profiles.

Production Capabilities

The extrusion line incorporates a conical twin screw extruder compatible with both PVC powder and granules. Features include degassing system for superior material plasticization and high-speed mold technology for enhanced productivity.

Technical Specifications
ModelLB180LB240LB300LB600
Max Product Width (mm)180240300600
Screw ModelSJ55/110SJ65/132SJ65/132SJ80/156
Motor Power22KW37KW37KW55KW
Cooling Water (m³/h)57710
Compressor (m³/h)0.20.30.30.4
Total Length (m)18222225
Component Details
Conical Twin Screw Extruder
  • Specially engineered screws designed for processing dry PVC powder blends
  • Features permanent magnet synchronous motor for high energy efficiency
  • PLC control system for centralized production line management
Plate Mould System
  • Double strand mold configuration for PVC trunking production
  • Optimized channel design ensuring high flow performance
  • Precision profile manufacturing capabilities
Haul-off & Cutting Combination
  • Even force distribution across s with high-quality rubber components
  • Pneumatic pressure system for easy adjustment and product protection
  • Customizable cutting options including swarfless and saw cutting methods

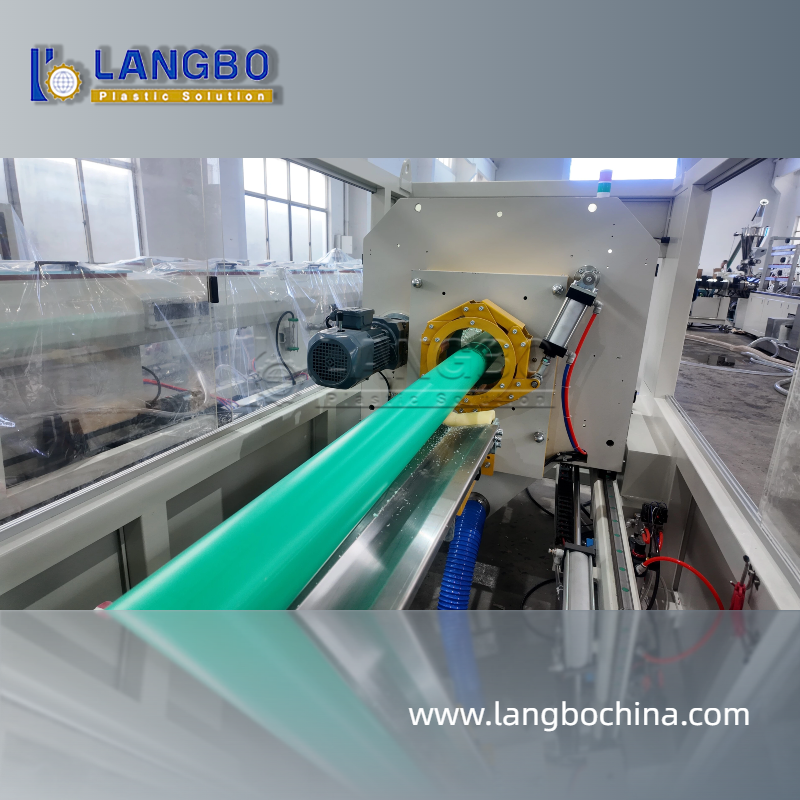

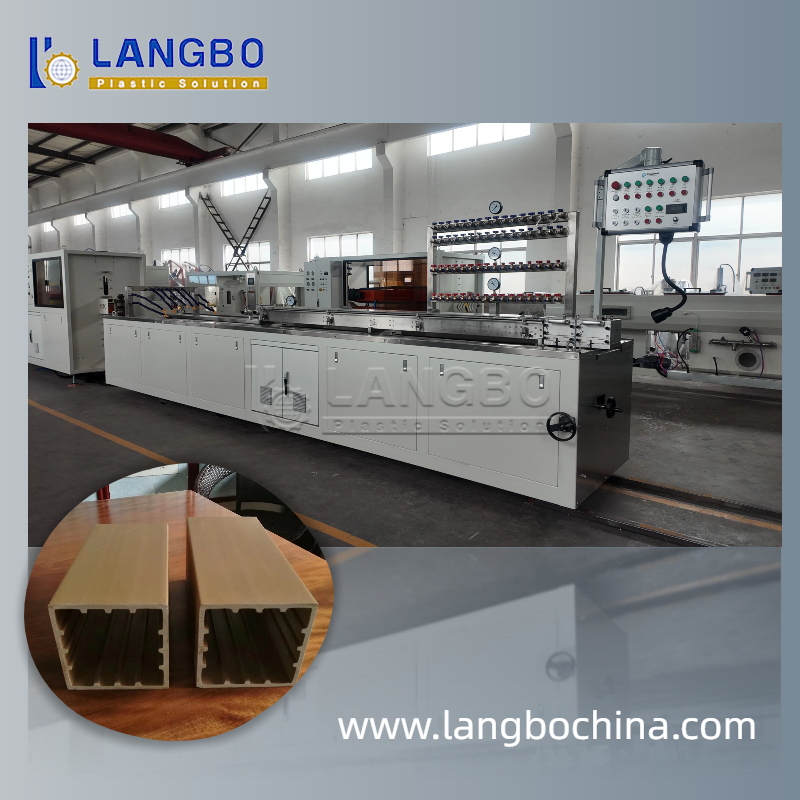

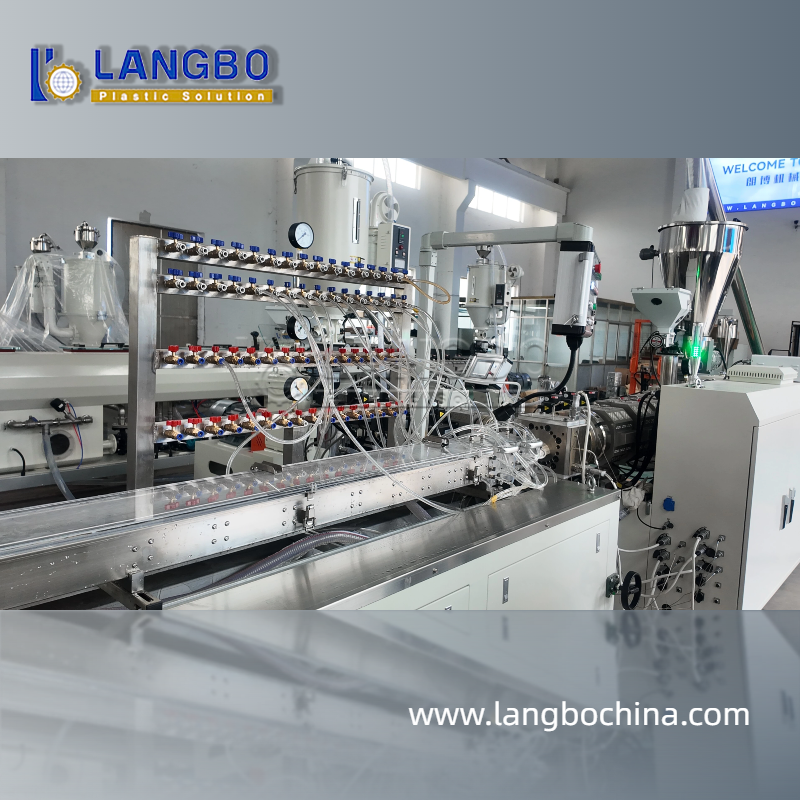

Production Line Images
