WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion

Categories WPC Decking Machine
Brand Name: LB
Model Number: LB-300
Certification: CE,ISO
Place of Origin: ZHANGJIAGANG
MOQ: 1 SET
Price: Negotiable(USD,EUR)
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Delivery Time: 45 WORKING DAYS
Packaging Details: STANDARD PACKAGE
Warranty: 1 YEAR
Output Capacity: 400KG/H
Rawmaterialcompatibility: Wood fiber, plastic powder, additives
Screwdiameter: 65 mm
Controlsystem: PLC control with touch screen
Machineweight: 3500 kg
Cutter: SAW CUTTER
Screw Design: Double-screw
Raw Material: WPC & ADDITIVES
Processing Method: EMBOSSING
Profile Size: ACCORDING TO CUSTOMERS' DRAWING
Width: 200,240,300,400mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion
Conical Twin Screw Extruder

Designed for PVC profile applications with flexibility in material choices, high performance, and long durability.

  • High flexibility in raw material combinations
  • Gentle and homogeneous plastification
  • Barrel with air cooling system
  • AC motors for low energy consumption
  • Control panel with color touch screen
Energy Saving System (LESS)

Lima Energy Saving System provides significant vacuum energy savings.

  • Vacuum energy savings up to 80%
  • Vacuum pumps driven by individual frequency inverters
  • Low noise level operation
  • Closed circuit water system
Crawler Track Haul-off Units

Flexible solutions with independent tracks and continuous speed adjustment.

  • Flexibility in pad dimensions
  • Two independent tracks with gearboxes
  • Speed adjustment by inverter

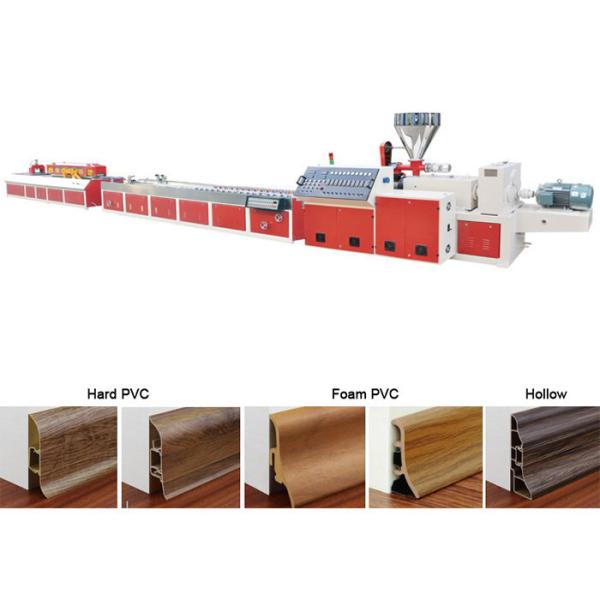

Complete Extrusion Line Components
Conical Twin Screw Extruder: Special screw and barrel design for perfect mixing and homogeneous output with motors for minimal electricity consumption.
Mould: Ideal viscosity design with polished contact surfaces to minimize friction losses.
Calibration Table: Stainless steel construction to prevent corrosion with customized design for profile characteristics.
Crawler Track Haul-off: Inverter-controlled speed adjustment synchronized with material output rate.
Saw Cutter: High-efficiency cutting with integrated dust collection system.
Tip-off Unit: Pneumatic cylinder operation.
Production Specifications
MODELPROFILE SIZE (mm)EXTRUDER MODELMOTOR POWER (kw)
LB-108108SJZ51/10518.5 AC
LB-180180SJZ55/11022 AC
LB-300300SJZ65/13237 AC
LB-600600SJZ80/15655 AC
LB-800800SJZ80/15655 AC
LB-12401240SJZ92/188110 D
