HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter

Categories PE Pipe Extrusion Line
Brand Name: LB
Model Number: LB-80/156
Certification: CE / ISO
Place of Origin: ZHANGJIAGANG
MOQ: 1 SET
Price: negotiation(USD,EUR)
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Delivery Time: 45 WORKING DAYS
Packaging Details: NORMAL PACKAGE
Extrudertype: Single Screw Extruder
Cutter: Planetary cutter
Type: SJ-65 SJ-90 SJ-65/33,Extrusion
Coolingmethod: Water Cooling Tank
Pipe Diameter: 16-160MM
Screwdiameter: 45mm - 120mm
Production Speed: 1-10m/min
Heatingzones: 4 - 6 zones
Dragger: crawling traction
Automatic Grade: Full-automatic
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter

HDPE Pipe Extrusion Line | Uniform Wall Thickness Large Diameter

Our HDPE Pipe Extrusion Line specializes in producing multi-layer pipes with uniform wall thickness for large diameter applications. This advanced production line utilizes co-extrusion technology to create pipes with functional features while optimizing raw material costs.

Technical Overview

Multi-layer pipes are manufactured using co-extrusion pipe line technology. This specialized process enables significant raw material cost savings while producing pipes with enhanced functional characteristics.

  • Cost-effective production using recycled materials as middle layers for PE thick wall pipes
  • Versatile layer configurations including PP-R layers and structural enhancements like glass fiber reinforcement
  • Ideal for hot water supply pipes requiring specialized material properties
Application Scenarios

PE pipe extrusion lines are engineered for diverse applications including:

  • Water supply systems
  • Gas distribution networks
  • Agricultural irrigation
  • Drainage systems
  • Cable conduits
  • Industrial piping applications

These lines process PE100/PE80 materials with diameters ranging from 16-1200mm, offering excellent chemical resistance, high strength, and consistent quality. All systems comply with ISO and ASTM standards, making them suitable for various infrastructure and industrial applications.

Technical Specifications
ModelPipe Diameter (mm)ExtruderExtruder Power (kW)Capacity (kg/hr)
LB-6320-63SJ65/3355AC150
LB-11020-110SJ65/3355AC150
LB-16075-160SJ75/3390AC280
LB-25090-250SJ75/33110DC350
LB-315110-315SJ90/33160DC450
LB-450160-450SJ90/33160DC450
LB-630315-630SJ120/33280DC850
LB-800500-800SJ150/33315DC1100
LB-1200710-1200SJ150/34400DC1350
Product Images

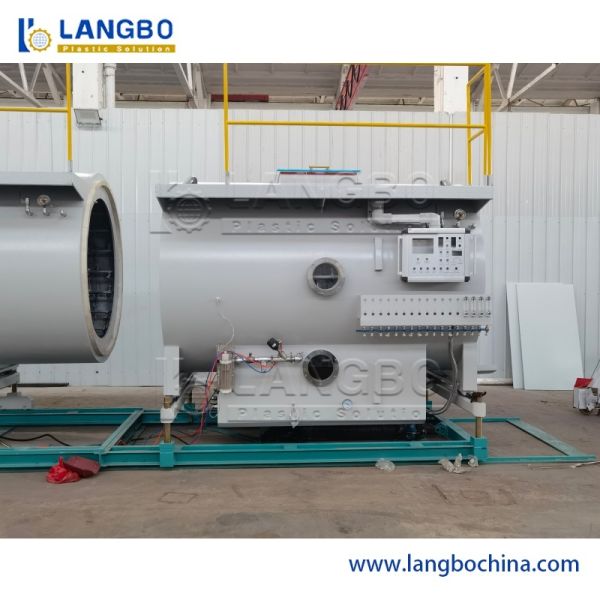

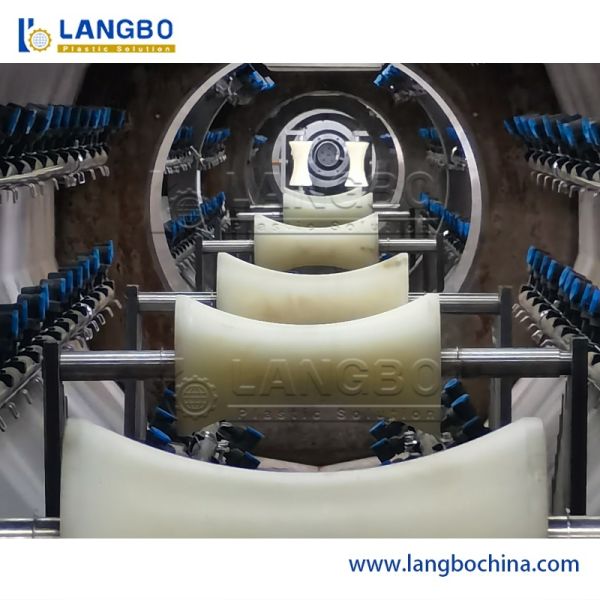

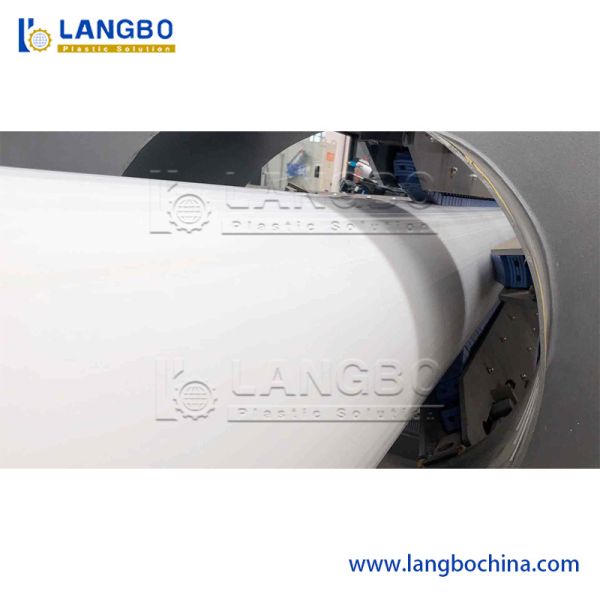

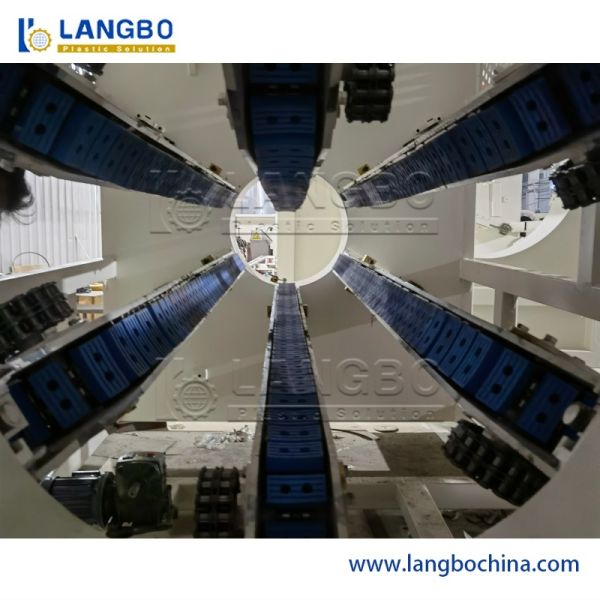

HDPE Pipe Extrusion Line manufacturing equipment overview Close-up view of HDPE pipe extrusion process HDPE Pipe Extrusion Line control panel and operation interface Finished HDPE pipes with uniform wall thickness
