| Categories | Motor Thermal Protector |
|---|---|
| Electrical Characteristics: | 1~30amps/125volts AC |
| Technical Parameters: | Action temperature from 60℃~180℃, Every 5 ℃ a specification. Temperature is optional and customized. |
| Temperature tolerance: | ±8℃,±10℃. |
| Trip off current range: | 1~30A. |
| Trip off time: | 4~10s. |
| Company Info. |
| Nanjing Haichuan Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

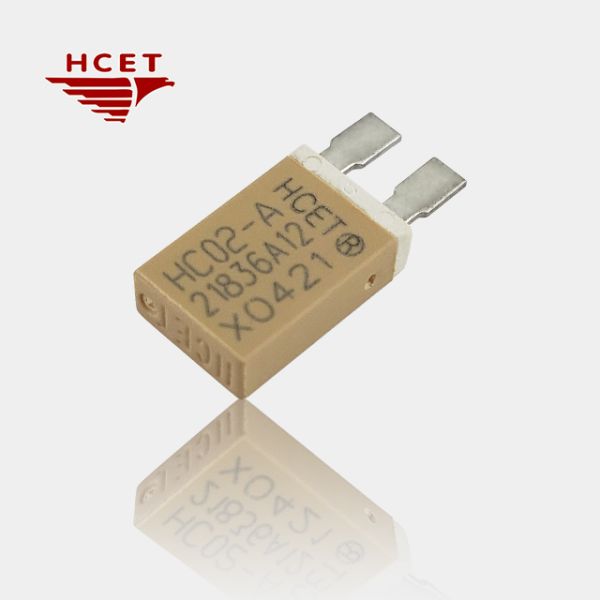

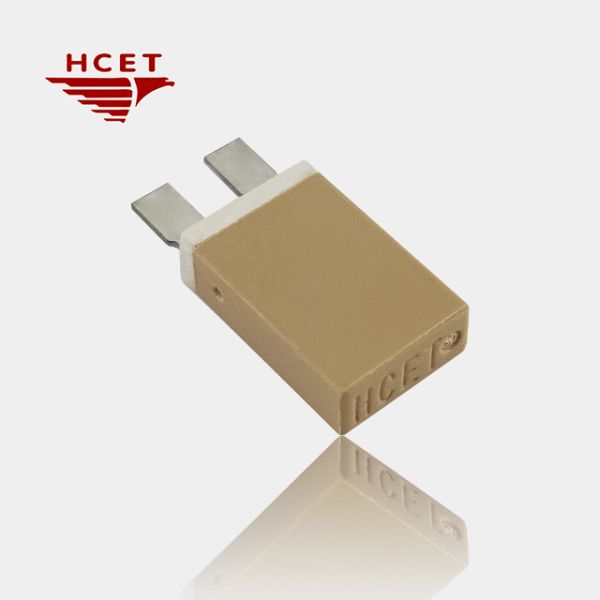

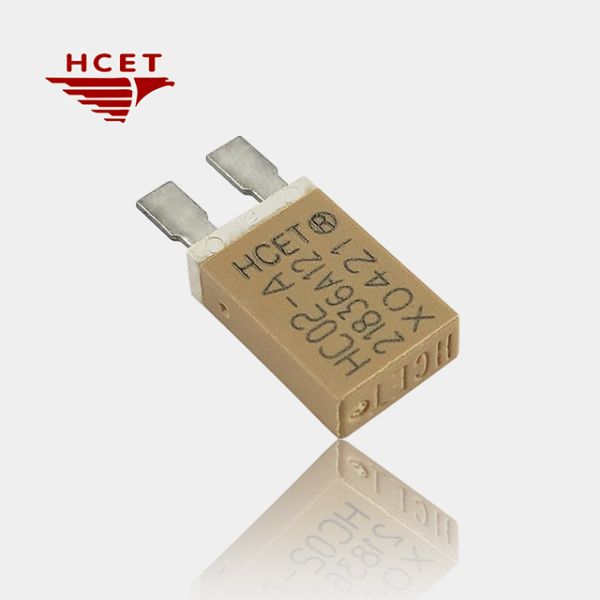

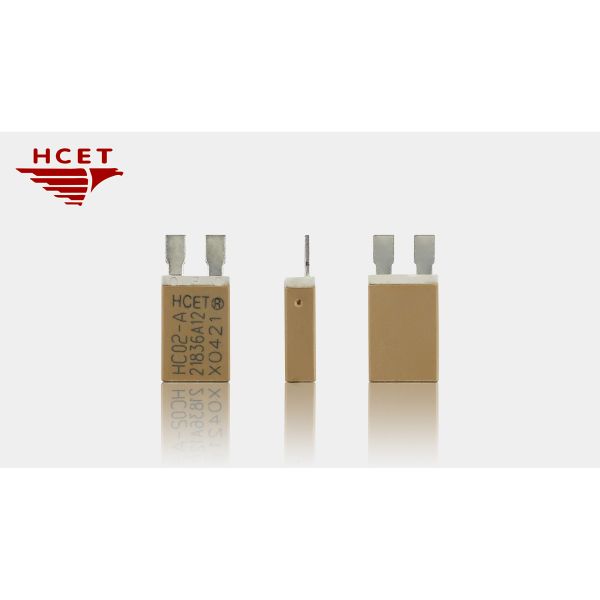

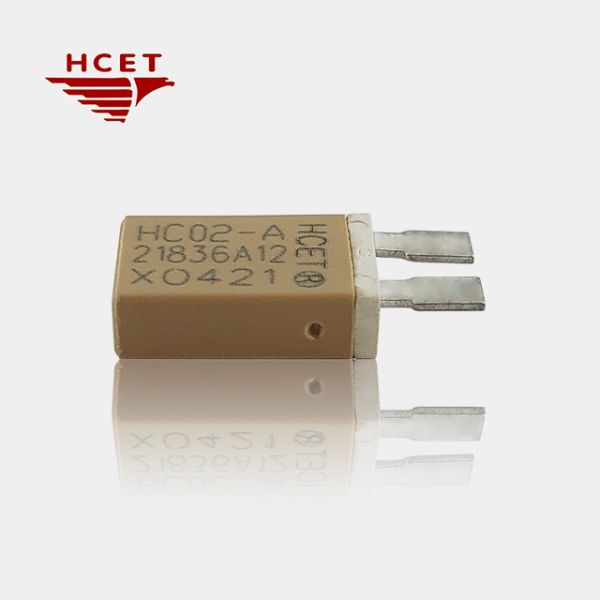

The HC02 series overload (overcurrent) protector features a high-temperature resistant plastic shell, serving as a precise protection element with integrated over-temperature functionality. It offers accurate control of current overload, effectively preventing damage to sensitive equipment like motors and transformers from excessive temperature and current. Choose from a variety of enclosures and wires to suit your specific needs.
Accurately controls current overload and over-temperature.
Prevents damage to motors, transformers, and other sensitive components.
High-temperature resistant plastic shell for longevity.
Available with various enclosures and wire configurations.
| Category | Specification | Value | Notes |
|---|---|---|---|
| Electrical Characteristics | DC Voltage | 1~30amps/15volts DC | |
| Electrical Characteristics | DC Voltage | 1~15amps/30volts DC | |
| Electrical Characteristics | AC Voltage | 1~30amps/250volts AC | |
| Electrical Characteristics | AC Voltage | 1~30amps/125volts AC | |
| Technical Parameters | Action Temperature | 60℃~180℃ | Every 5 ℃ a specification. Optional & customized. |
| Temperature Tolerance | Tolerance | ±8℃, ±10℃ | |
| Trip Off Current | Range | 1~30A | |
| Trip Off Time | Time | 4~10s |
|
