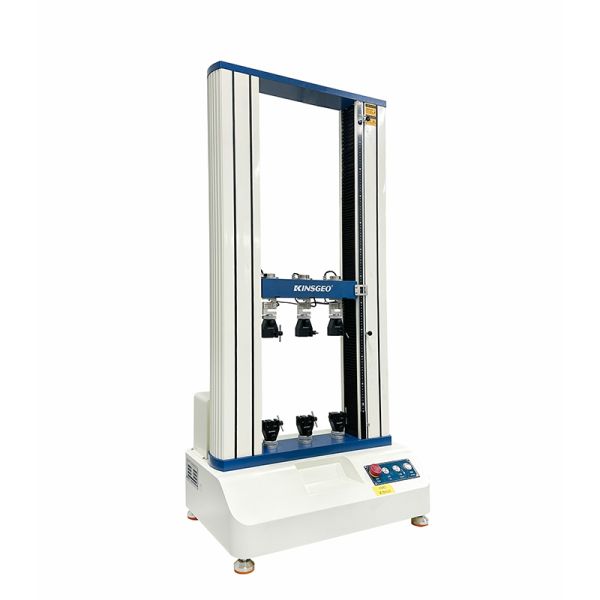

Three-Station Synchronous Peel Strength Tester

Categories Peel Adhesion Test Equipment
Brand Name: KINSGEO
Model Number: KJ-1066A
Certification: CE/ISO
Place of Origin: China
MOQ: 1 set
Price: USD/4800/SET
Payment Terms: T/T
Supply Ability: 60Sets/month
Delivery Time: 15 work days
Power: 220V/50HZ
Usage: Adhesive Shear Force Tester
Product name: Tape peeling tester/Adhesive peeling test equipment
Warranty: 1 Year
Application: Adhesive Tape tester,adhesive
Load: 100~2000kg
Weight: About 180kg
Capacity: 200
Power supply: AC220V 10% 50HZ
Dimention: 80*52*150cm
Function: Adhesive Tape test machine
Accuracy: ±0.5%
Accuracy class: 0.5 class
Stroke protection: Upper and lower protection, prevent over preset
Emergency stop device: Handling emergencies
Motor: Japan Panasonic Servo Motor
Optional accessories: Customized clamps by appointed, force sensors, , printer, and operation manual
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Three-Station Synchronous Peel Strength Tester

This machine is mainly used to test the 180° peel strength and release force of adhesive tapes, self-adhesive labels and similar products. It also supports tensile test and shear test for various materials, to evaluate the adhesion performance and physical properties of adhesive products.

The equipment can complete three groups of tests simultaneously, greatly improving testing efficiency. Multiple samples from the same batch can be tested and compared at the same time. It also supports single or multiple independent station testing, with all data displayed on one coordinate graph.
Design Standards Compliance
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ISO 527, ASTM D628, ASTM D5459, ASTM D5458, ASTM D5748, ASTM D-882, ASTM D 1922, ASTM D638, ASTM D412
Technical Specifications
ModelKJ-1066D
Speed Range0.5-500mm/min
MotorJapan ervo Motor
Capacity Options1~20 kg
Resolution1/500,000
Effective Testing Space600mm MAX
Accuracy±0.5%
Operation MethodWindows XP, Win7 operation, computer control
Standard AccessoriesComputer, printer, system operation manual
Optional AccessoriesCustomized clamps, force sensors, printer, operation manual
Weight400KG
Dimensions85*60*130 cm (W*D*H)
Power Requirements1PH, AC220V, 50/60Hz
Safety FeaturesUpper and lower stroke protection, force protection system, emergency stop device
