Touch Screen FIFO LIFO Vertical Buffer Automatic PCB Buffer With SMEMA Compatible

Categories PCB Handling Equipment
Brand Name: HSTECH
Model Number: HS-HC250
Certification: CE,ISO
Place of Origin: China
MOQ: 1 PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 100 PC/Month
Delivery Time: 25-30 days
Packaging Details: Wooden
Control: Touch Screen
Signal: SMEMA
Air pressure: 4-6Bar
Product name: PCB Buffer
Power supply: 220V,50/60Hz,±10%
Warranty: 1 year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Touch Screen FIFO LIFO Vertical Buffer Automatic PCB Buffer With SMEMA Compatible

Touch Screen FIFO LIFO Vertical Buffer Automatic PCB Buffer With SMEMA Compatible
This PCB Buffer serves as a buffer device between SPI, AOI, and other inspection equipment and main mounting equipment. It temporarily stores and buffers PCB boards to achieve seamless connection of production line processes, helping SMT production lines achieve automation and improve production efficiency.
Key Features
  • User-friendly soft touch LED membrane control panel
  • FIFO, LIFO, Loader, Unloader, Reject mode selection
  • Fast, smooth, and precise indexing
  • Pneumatic clamps for magazine alignment
  • Regulated pneumatic pusher pressure
  • Integrated threshold system
  • Additional magazines buffering capacity available upon request
  • SMEMA compatible
Technical Specifications
ModelHS-GH350
Transport height910±20mm
Transportation directionL~R, or R~L
Board cycle timeApprox 20 seconds
Magazine change over timeApprox 30 seconds
Track fixed sideFront side
Operation sideFront side
PCB thicknessMin 0.6mm
Pitch selection1-4 (10mm pitch)
Power supply220V, 50/60Hz, ±10%
Power0.05kW
Air pressure4-6Bar
Air consumptionMax 10L/min
Number of magazinesUpper: 1 magazine, Bottom side: 1 magazine
SignalSMEMA
Available Models
ModelHS-HC250SHS-HC330MHS-HC390LHS-HC460XL
Efficient PCB length50*50~350*250mm50*50~455*330mm50*50~530*390mm50*50~530*460mm
Magazine size355*320*563mm460*400*563mm535*460*570mm535*530*570mm
Machine dimension1250*1200*1600mm1460*1360*1600mm1610*1480*1600mm1610*1620*1600mm
Weight170kg230kg300kg330kg
Application Areas
  • Buffer device for connecting equipment: Import PCB boards from upstream inspection equipment to downstream placement equipment, achieving seamless connection and process balance
  • PCB board temporary storage function: Temporarily store qualified PCB boards for subsequent placement, buffering production rhythm between processes
  • Optimize production scheduling: Rationally schedule PCB boards into the buffer zone according to production plans and real-time information
  • Improve production automation level: Automatic transmission between equipment reduces manual operations and human error risks
Packing & Delivery
ItemPCB Buffer
Package1 set into one wooden carton as safety condition
External Dimension1250*1600*1200mm
Weightabout 170-330kgs
Deliveryabout 15-20 working days
PaymentD/P, T/T, Western Union, MoneyGram
PortShenzhen
ShipmentA. By Courier: 4-7 Working days by special offer
B. By Air: 7 Working days at appointed airport
C. By Sea: 20-25 Working days at appointed port

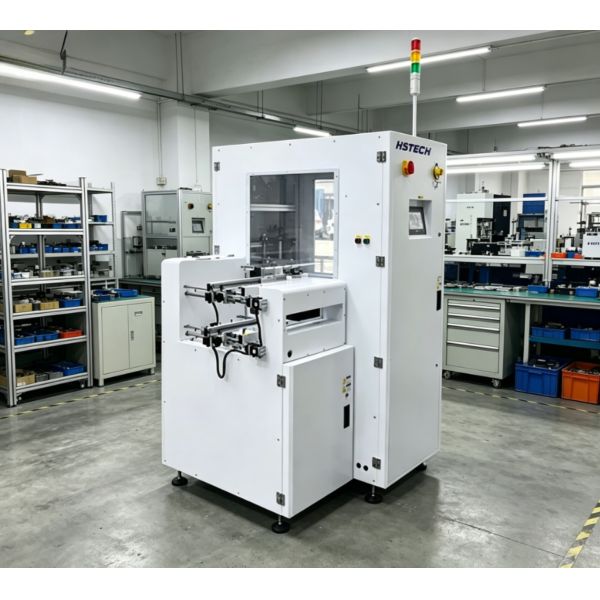

Touch Screen FIFO LIFO Vertical Buffer Automatic PCB Buffer PCB Buffer equipment close-up view PCB Buffer operational demonstration PCB Buffer in production line environment
