Precision DC Spot Welding for Post-CNC Stainless Steel Components

The Xinwei DN(B) Series Fixed-Type DC Spot Welding Machine is purpose-built for manufacturers producing precision components that require consistent, high-quality resistance welds after CNC machining. Using Direct Current (DC) welding technology with MFDC power control, this machine delivers concentrated heat input and minimal spatter — critical for stainless steel fan guards, enclosures, and assemblies where surface finish and weld integrity are non-negotiable.

Key Technical Advantages

DC Welding Power Source — Superior Weld Quality on Stainless Steel

Unlike conventional AC welders, the DC output provides concentrated, directional heat at the weld interface. For stainless steel applications, this means reduced heat-affected zone, minimal oxidation, and virtually spatter-free joints — eliminating post-weld cleanup and preserving surface finish on visible components like fan guards and decorative enclosures.

High-Precision Pneumatic Control — Consistent Force, Consistent Welds

The upper electrode is driven by a high-precision air cylinder with a dedicated air reservoir that buffers supply fluctuations. This ensures every weld cycle applies identical electrode force — the single most critical variable for repeatable nugget formation. For high-volume production of CNC-machined parts, this eliminates random weld failures and reduces quality inspection reject rates.

Infinitely Adjustable Stroke & Cushioned Motion

Both working and auxiliary strokes are independently and infinitely adjustable. Combined with independently controllable descent and ascent speeds, the machine cushions mechanical impact on precision workpieces. For delicate post-CNC components with machined surfaces, this prevents surface marring and dimensional distortion during the welding cycle.

Rapid Cycle Time — High-Volume Production Ready

A direct-acting, high-flow solenoid valve dramatically improves system response and cycling speed. The optimized aerodynamic design also reduces compressed air consumption. For manufacturers running multi-shift production, this translates to higher throughput per shift and lower operating costs.

Upper Insulation Design — Enhanced Electrical Safety

The secondary circuit employs an upper insulation configuration, providing stable, reliable isolation that prevents short-circuit risks. This design improves equipment safety in diverse working conditions and extends transformer and electrode service life across continuous production environments.

Applications

Working Principle

The DN(B) Series operates on MFDC (Mid-Frequency Direct Current) resistance welding: three-phase AC input is rectified to DC, then inverted to medium-frequency AC, stepped down through a welding transformer, and finally rectified to DC at the output. This MFDC topology delivers precise heat control with near-unity power factor. The DC current passes through water-cooled copper electrodes into the workpiece stack, generating localized resistive heating at the sheet interface. When the material reaches its plastic state, pneumatic pressure forges the metallurgical bond — all within milliseconds and with minimal energy dispersion to surrounding material.

Technical Specifications

After-Sales and Support

• Free Spare Parts — Critical wear components included for first-year operation
• Field Installation — On-site setup and commissioning by Xinwei engineers
• Operator Training — Hands-on training for your production team
• Video Technical Support — Remote diagnostics and troubleshooting
• 1-Year Core Component Warranty

Frequently Asked Questions

Why DC instead of AC for stainless steel?

DC welding delivers concentrated, unidirectional heat with significantly less spatter and oxidation compared to AC. For stainless steel components where surface finish matters — such as fan guards, medical enclosures, and food equipment — this eliminates post-weld cleanup and preserves the material's corrosion resistance.

What is the advantage of MFDC topology?

MFDC (Mid-Frequency Direct Current) converts standard 50/60Hz input to 1000Hz medium frequency before rectification. This dramatically reduces transformer size, improves power factor to near-unity, and provides finer heat control — enabling consistent welds even on coated or dissimilar-thickness materials.

Can this machine be integrated into an automated production line?

Yes. The DN(B) Series supports I/O integration with PLC-controlled automation systems. The pneumatic control system and rapid cycle times make it well-suited for robotic part handling and inline production.

What tooling and electrodes are included?

Each machine ships with one set of water-cooled copper electrodes. Custom electrode geometries for specific workpiece profiles can be designed and manufactured by our in-house tooling team. Contact us with your part drawings for a custom solution.

Request Your Welding Solution

Send us your workpiece drawings or samples for a free DC welding feasibility test. Our engineering team will evaluate your application, recommend the optimal DN(B) configuration, and design custom electrodes for your specific component geometry.

Send Drawing / Request Welding Test / Get Solution

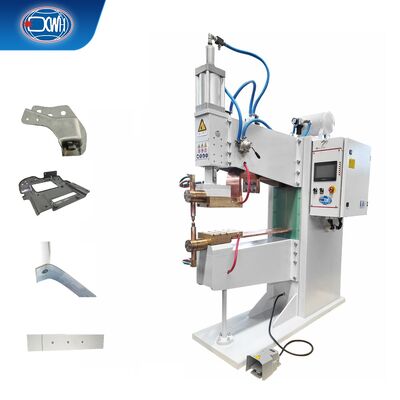

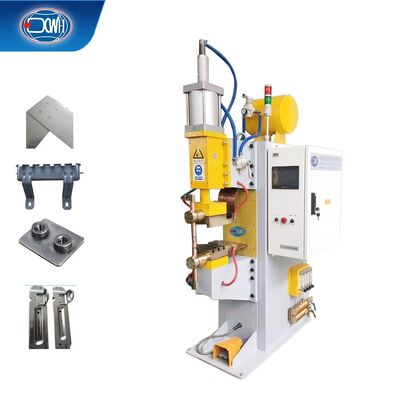

Original Product Images For Review
