| Categories | Seam Welding Machine |
|---|---|
| Place of Origin: | Sichuan, China |
| Weight (KG): | 800 |
| Brand Name: | Xinwei |
| Delivery Time: | 25-45 working days |
| Supply Ability: | 15 sets per month |
| Warranty of Core Components: | 1 Year |
| Certification: | CE, RoHS, ISO |
| Payment Terms: | L/C,D/P,D/A,T/T,Western Union |
| Welding Diameter: | Customized |
| Warranty: | 1 Year |
| Voltage: | 380V |
| Video Outgoing-Inspection: | Provided |
| Machinery Test Report: | Provided |
| Product Name: | Automatic Aluminum Resistance Seam Welding Machine |
| Power (kW): | 160-200 |
| Price: | $6,000-30000/ set |
| MOQ: | 1 set |
| Application: | Aluminum Components |
| Model Number: | XW-ASW200 |
| Company Info. |
| Chengdu Xinwei Welding Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

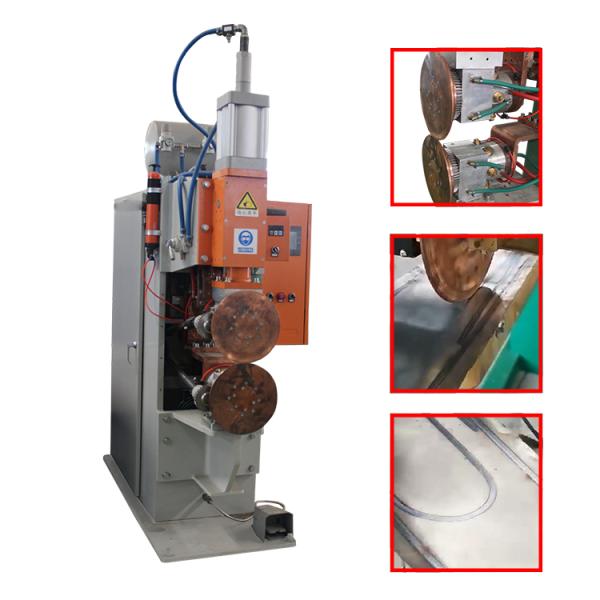

Xinwei automatic aluminum resistance seam welding machine is designed for continuous welding of aluminum tanks, containers and sheet metal components. The machine combines roller electrode technology, stable AC/DC power control and precise welding parameter adjustment to achieve reliable and leak-proof aluminum seam welding performance.
Compared with steel welding, aluminum requires different welding parameters because of its electrical and thermal properties. Standard welding machines often fail to deliver reliable results on aluminum components.
Automatic resistance seam welding provides controlled heat generation and repeatable welding quality for aluminum applications.
Aluminum welding requires precise control because aluminum has high electrical conductivity and rapid heat transfer characteristics. Xinwei engineers optimize:
to achieve stable and repeatable aluminum seam welding performance across different aluminum alloys and product specifications.
The AC/DC welding power system allows engineers to select suitable welding parameters according to aluminum material characteristics and production requirements.
Optimized welding parameters help maintain consistent seam quality when processing aluminum components.
Roller electrode technology creates continuous welded seams suitable for airtight and liquid-tight applications.
Automatic operation reduces manual dependence and improves production repeatability.
Horizontal and vertical welding configurations can be customized according to different product structures.
| Feature | Benefit |
|---|---|
| Aluminum-Optimized Parameters | Reliable welding on aluminum alloys with different conductivity characteristics |
| Roller Electrode Technology | Continuous overlapping weld points for leak-proof sealed seams |
| AC/DC Power Configuration | Flexible power matching for different aluminum grades and thicknesses |
| Water Cooling System | Sustained electrode performance during continuous production runs |
| Automatic Operation | Reduced manual dependence with repeatable welding quality |
| Customizable Fixtures | Tailored tooling for specific aluminum product dimensions and shapes |
Fuel tanks, industrial containers and storage vessels requiring continuous leak-proof welded seams.
Sealed containers, liquid-tight products and transport vessels with consistent seam quality requirements.
Industrial panels, electrical enclosures and fabricated aluminum sheet assemblies.
Lightweight components, customized metal structures and automotive aluminum assemblies.
| Parameter | Description |
|---|---|
| Welding Type | Resistance Seam Welding |
| Material | Aluminum / Stainless Steel |
| Operation | Automatic |
| Power Supply | AC/DC |
| Electrode Type | Roller Electrode |
| Cooling System | Water Cooling |
| Application | Sealed Metal Components |
| Customization | Available |
It is suitable for aluminum tanks, containers, sheet components and customized sealed metal structures.
Resistance seam welding provides controlled heat input and continuous welding seams suitable for aluminum products requiring sealing performance.
Yes. Welding current, pressure, speed and fixture design can be adjusted according to product requirements.
Yes. Xinwei can provide customized automation solutions according to production requirements.
Chengdu Xinwei Welding Technology Co., Ltd. operates an 18,000 square meter manufacturing facility with a dedicated R&D team of over 20 engineers. ISO 9001, CE and RoHS certified. Serving customers in more than 30 countries worldwide.
|
