Name: 150L Programmable Constant Temperature and Humidity Test Chamber
Brand: Dongjun
Price: 1 USD

150L Programmable Constant Temperature and Humidity Test Chamber

Categories	Environmental Test Chambers
Brand Name:	Dongjun
Model Number:	DJ-26-53
Certification:	ISO9001，CE，
Place of Origin:	Dongguan, China
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500pcs
Delivery Time:	15-25Work days
Packaging Details:	Wooden crate packaging
Inner Chamber Size:	50cm(W)×60cm(H)×50cm(D) (150L)
Inner Material:	SUS#304 heat and cold resistant stainless steel plate
Outer Material:	SUS#304 high-tensile stainless steel plate with multi-layer surface treatment
Temperature Range:	-70℃ ~ 150℃
Humidity Range:	20% ~ 98% RH
Power Supply:	Three-phase AC220V MAX 30A 50Hz

Contact Now

Add to Cart

Company Info.

Dongguan Dongjun Testing Equipment Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

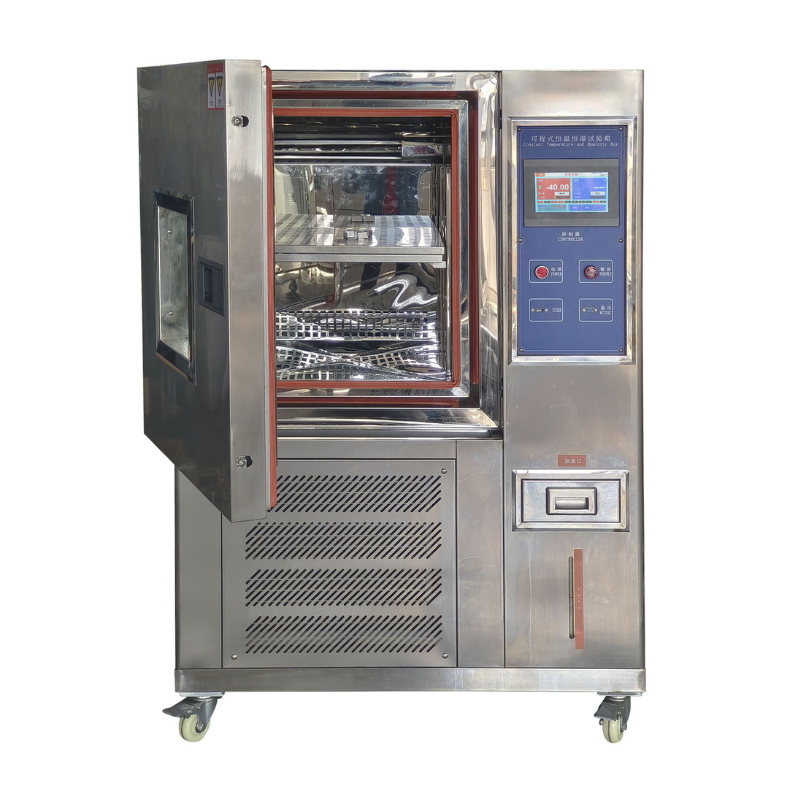

150L Programmable Constant Temperature and Humidity Test Chamber

Programmable Constant Temperature and Humidity Test Chamber

Product Overview

Simulated industrial parts, major accessories and semi-finished products, such as electronic components, auto parts, laptop computers, etc. Under combined climatic, environmental, temperature and humidity conditions (high and low temperature operation, storage, temperature cycling, high temperature and high humidity, low temperature and low humidity, condensation tests, etc.), test whether the adaptability and inherent characteristics of products change, as well as their reliability, and conduct temperature and humidity environmental tests.
Comply with the requirements of international standards (IEC, JIS, GB, MIL, etc.) to realize consistent international measurement procedures (including test procedures, conditions and methods), eliminate cognitive discrepancies and reduce the scope of measurement uncertainty.
Exquisite structural design: featuring curved shapes and matte line finishing for a high-grade appearance. Equipped with flat non-rebound handles, it is easy to operate, safe and stable.

Parameters

Item	Specification
Inner Chamber Size	50cm(W)×60cm(H)×50cm(D) (150L)
Outer Cabinet Size	Determined according to actual cabinet
Inner Material	SUS#304 heat and cold resistant stainless steel plate
Outer Material	SUS#304 high-tensile stainless steel plate with multi-layer surface treatment
Insulation Material	High density glass wool & high strength PU foam insulation
Anti-sweat Device	Anti-sweat treatment by K-type tube thermal energy system
Door Sealing Material	High tension sealing material, temperature resistance: -90℃ ~ 280℃
compressor	Original fully hermetic compressor of France Tecumseh
Circuit Control System	TEMI880 Controller
Show conversation mode	Adopt a large touch LCD screen to realize interactive display of Chinese and English texts and data information
Heating Time	Within 30 mins from RT to +100℃
Cooling Time	Within 50 mins from RT to -40℃
Temperature Range	-70℃ ~ 150℃
Humidity Range	20% ~ 98% RH
Power Supply	Three-phase AC220V MAX 30A 50Hz

Working principle:

The constant temperature and humidity balancing control system adopts PID mode to control SSR, enabling the heating and humidification capacity of the system to match the heat and moisture loss capacity.
The temperature measurement signals from dry and wet bulbs are transmitted to the controller CPU after A/D conversion for comparison with RAM data, and then output to the I/O board. The I/O board issues instructions to operate the air supply system and refrigeration system. Meanwhile, PID controls the SSR to activate heating SSR or humidifying SSR, so that heat and moisture are evenly distributed into the test chamber via the air supply system to realize balanced temperature and humidity regulation.

Air Supply Circulation System:

Adopts multi-blade centrifugal wind wheel and sealed motor, which is less prone to oil leakage and core displacement.
Features diffused vertical and horizontal air exchange as well as arc-shaped circulating air supply mode.
Equipped with adjustable side air outlets and protective mesh return air inlets.
Special adjustable louver air supply circulation system.

Refrigeration System:

Compressor: Original fully hermetic compressor
Refrigerant: Adopts new eco-friendly green refrigerant R404A (DuPont, USA) with zero ozone depletion potential
Condenser: Wave fin type forced air-cooled condenser
Evaporator (Dehumidifier): Inclined FIN-TUBE evaporator

Company Profile

PACKING AND TRANSPORTATION

FAQ

How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
