13-Axis CNC Panel Bender with 170mm Bending Height and Automatic Tool Changer for Precision Metal Forming

Categories	Panel Bending Machine
Brand Name:	D.K.HISTRON
Model Number:	HC-2000P
Certification:	CE,ISO9001
Place of Origin:	CHINA
MOQ:	1SET
Price:	12000-200000USD
Payment Terms:	T/T
Supply Ability:	20sets/month
Delivery Time:	60 days
Packaging Details:	suitable for long distance transport
Product name:	CNC bending machine
Max Bending Angle:	0°-180°
Max Bending Height:	170mm
Controlsystem:	CNC
Bending Speed:	0.2 Second/time
Feeding Method:	Pressing arm
Repeatability Accuracy:	±0.1mm
Function:	bending electric cabinet

Contact Now

Add to Cart

Company Info.

Qingdao D.K. Histron Intelligent Equipment Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

13-Axis CNC Panel Bender with 170mm Bending Height and Automatic Tool Changer for Precision Metal Forming

Aluminum Forming CNC Panel Bender Control with Automatic Tool Changer Automatic Loading and Unloading Material Device Available

Advanced bending solution for aluminum and stainless steel forming with automatic tool changing capabilities. Also suitable for carbon steel applications.

Key Features

Pressure arm feeding system for high versatility
Customizable auxiliary folding knife and power hinge knife
Customized processing of workpiece bending height
Customized presser foot lifting function

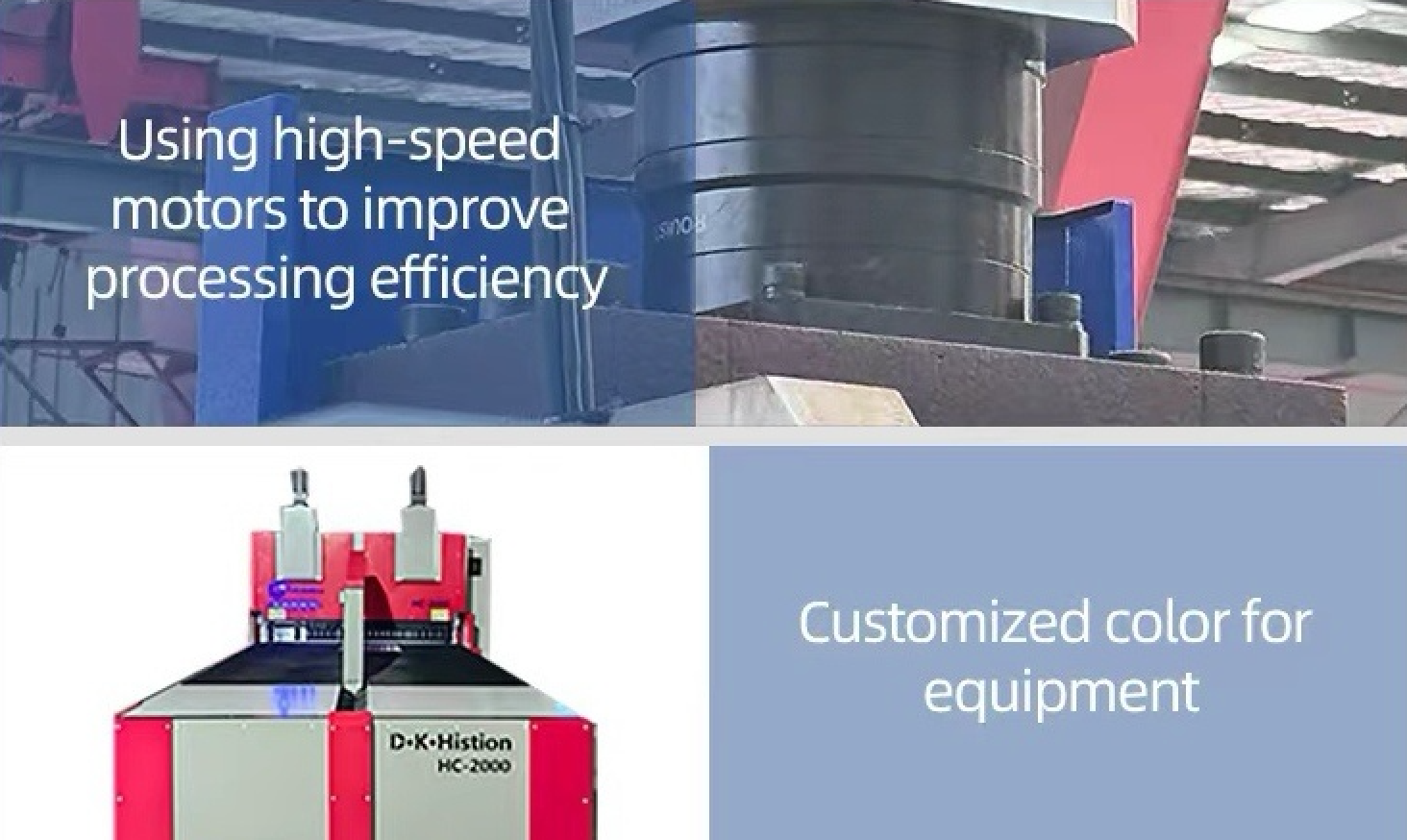

High-speed motors for improved processing efficiency

Product Advantages

Reinforced design handles greater bending forces with high-strength welded frame ensuring processing stability. Self-developed control system enables deep customization with real-time monitoring and automatic correction for precision. Simple interface with visual programming allows quick operation mastery.

Product Functions

Thick plate bending: Up to 3.0mm cold plate processing capacity
Auto compensation: Real-time correction of springback and thickness deviation
Graphic programming: Visual interface automatically generates paths
Partial load monitoring: Real-time display of dual-axis force conditions
Cloud interface: Connectable to operation management systems
Quick tool change: Quick-clamp design for efficient changeover

Technical Parameters

Model	HC-2000	HC-2000P
Feeding structure	Pressure arm type	Pressure arm type
Minimum internal dimensions for quadrilateral forming	180mm x 280mm	180mm x 280mm
Bending height	170mm (customizable)	170mm (customizable)
Average power	About 2.3KW	About 2.6KW
User operating environment	Operation system above Win7	Operation system above Win7
Maximum bending thickness	Cold plate 1.5mm 304 stainless steel 1.0mm	Cold plate 2.0mm 304 stainless steel 1.5mm
Number of axles	13	13

Applications

Suitable for metal door industry, file and electric cabinets, kitchen industry, environmental protection equipment, industrial manufacturing, power equipment, and new energy equipment. Processes medium-thick carbon steel and stainless steel materials, meeting strength requirements for various fabricated parts.

Control System

The bending center control system employs top-level computer numerical control (CNC) integrated with motion control cards. Features intuitive human-machine interface with graphical programming support. Exceptional position calculation capabilities enhance production efficiency and precision. Motion control cards support 24-axis operation, expandable to 64 axes, utilizing EtherCAT bus control for high-precision motion.

Operation Interface

Simple, easy-to-learn interface with excellent human-computer interaction capabilities.

Frequently Asked Questions

Can you arrange samples for me?

Yes, we provide free samples according to customer requirements.

What is the warranty period for the machine?

The warranty period is one year with lifetime maintenance and upgrade services provided after warranty.

Are all the machines standard?

No, customization is available. We manufacture non-standard machines according to customer requirements.

What products can your machines produce?

Applications include file cabinetry, aluminum veneer walls, stainless steel kitchenware, refrigeration equipment, chassis and cabinets, laboratory construction, metal doors, and more.

What types of sheet materials can your machine bend?

Typically processes carbon sheet, aluminum sheet, stainless sheet, and galvanized sheet.
