60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels

60T Heavy Duty Welding Turning Rolls for Pressure Vessel

Product Overview

60 Ton Self-Aligning Welding Rotator is heavy-duty equipment specially designed for tank and cylinder welding. It can automatically adapt to workpiece diameter without manual roller distance adjustment.

It is suitable for rotary welding of cylinders, storage tanks, pressure vessels, wind tower sections, boilers and large-diameter pipes within 60 tons. It can work with submerged arc welding, MIG/TIG welding and welding robots.

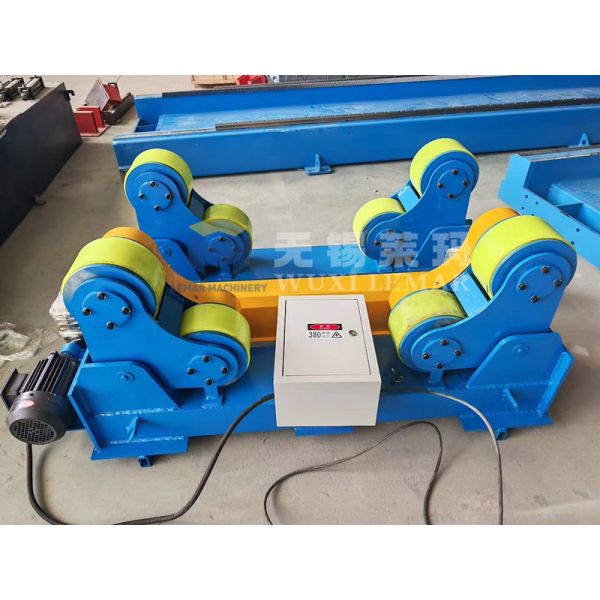

60T Heavy Duty Welding Turning Rolls in operation

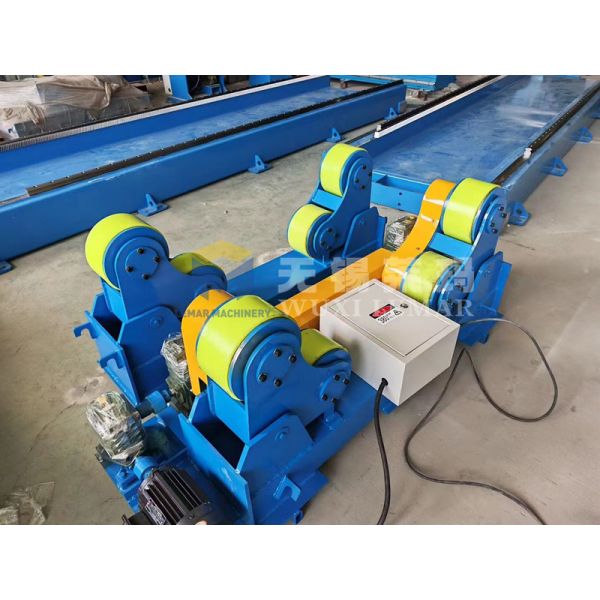

Close-up view of welding turning rolls mechanism

Product Specifications

Model	Loading Capacity (kg)	Pipe/Tank Diameter (mm)	Rubber Roller Dia. & Width (mm)	Steel Roller	Roller Speed (m/h)	Motor Power (kw)	Speed Adjust
ZTG-5	5000	Φ250-2300	Φ250*100	Φ240202	6-60	0.75	Variable Frequency Drive (VFD)
ZTG-10	10000	Φ320-2800	Φ300*120	Φ290252	6-60	1.1	Variable Frequency Drive (VFD)
ZTG-20	20000	Φ500-3500	Φ350*120	Φ340302	6-60	1.5	Variable Frequency Drive (VFD)
ZTG-30	30000	Φ600-3800	Φ350*120	Φ340302	6-60	2.2	Variable Frequency Drive (VFD)
ZTG-40	40000	Φ600-4200	Φ400*120	Φ390402	6-60	3	Variable Frequency Drive (VFD)
ZTG-50	50000	Φ700-4500	Φ400*120	Φ390402	6-60	4	Variable Frequency Drive (VFD)
ZTG-60	60000	Φ750-4800	Φ450*120	Φ440502	6-60	4	Variable Frequency Drive (VFD)
ZTG-80	80000	Φ850-5000	Φ500*120	Φ490602	6-60	5.5	Variable Frequency Drive (VFD)
ZTG-100	100000	Φ1000-5500	Φ500*120	Φ490702	6-60	7.5	Variable Frequency Drive (VFD)
ZTG-150	150000	Φ1100-6000	Φ500*120	Φ600*Φ280	6-60	2*5.5	Variable Frequency Drive (VFD)
ZTG-250	250000	Φ1200-7000	/	Φ700*380	6-60	2*5.5	Variable Frequency Drive (VFD)
ZTG-500	500000	Φ1800-8000	/	Φ850*350	6-60	2*7.5	Variable Frequency Drive (VFD)

Factory Configuration

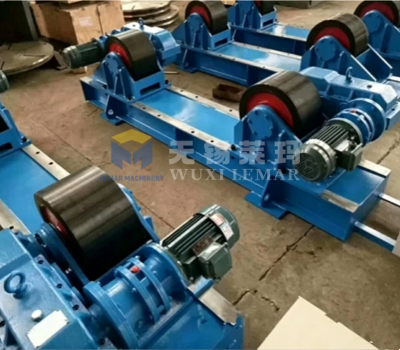

Standard accessories for welding turning rolls

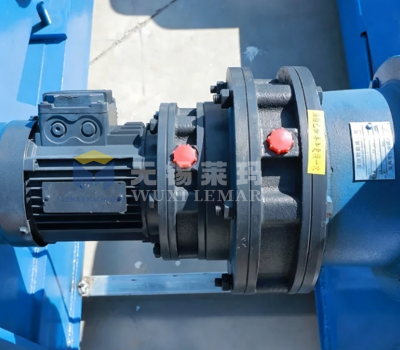

Optional accessories for welding turning rolls

Standard Accessories	Optional Accessories
Drive and Idler Welding Rotator Unit	Anti-drift Axial Alignment Device
VFD Electric Control Cabinet	Welding Earth Grounding Device
Handheld Control Pendant	High Temperature Protective Cover
PU Load-bearing Rollers	Robot Linkage Interface
Matching Power Cables and Terminals	Explosion-proof Electric Cabinet
Anchor Bolt Fastener Set	Heightening Base Support
Operation Manual and Certificate of Conformity	Synchronous Speed Control System

Main Features

Self-aligning Design: Automatically adapt to different cylinder diameters, no manual roller spacing adjustment required, saving setup time.
Heavy-load & Stable Performance: 60-ton super load capacity, thickened steel frame ensures rigid structure and stable operation for large vessels.
High-quality PU Rollers: Wear-resistant, anti-slip and silent PU rollers, no scratching or damage to workpiece surface.
Stepless Variable Frequency Speed: VFD speed regulation provides smooth and uniform rotation, ensuring high-quality circular welding seams.
High Welding Precision: Low vibration and high concentricity rotation effectively improve welding uniformity and finished product quality.

Product Packaging

Welding turning rolls ready for shipment

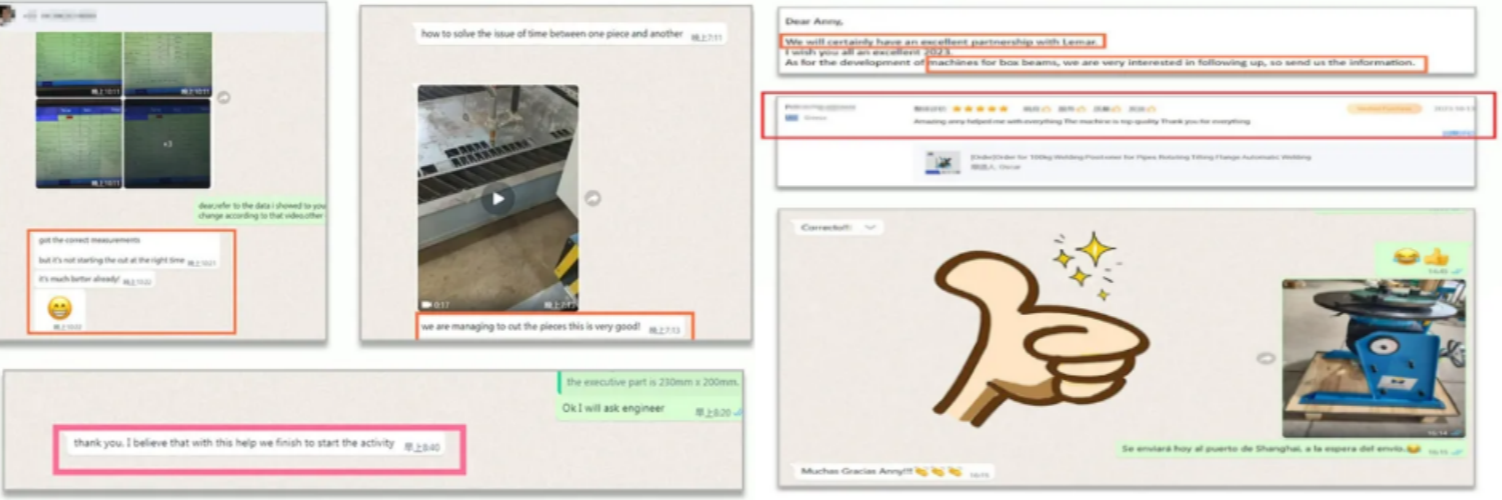

Customer Feedback

Frequently Asked Questions

What is the maximum load capacity?

It is designed for 60 tons maximum loading, suitable for heavy tank and cylinder welding.

Does it need manual roller distance adjustment?

No. It adopts self-aligning design, automatically adapts to different workpiece diameters.

How to control the rotating speed?

Equipped with VFD frequency conversion control, stepless speed adjustment for smooth rotation.

Can it match with welding robot?

Yes, it reserves robot linkage interface, compatible for automatic welding production line.

Are the rollers easy to damage the workpiece?

Adopts high wear-resistant PU rollers, silent running and no scratch on vessel surface.
