DaYuan L800-A/L800-C Single Channel Carton Erecting Machine

Servo & Mechanical Options | 200pcs/min Compact Food Box Equipment

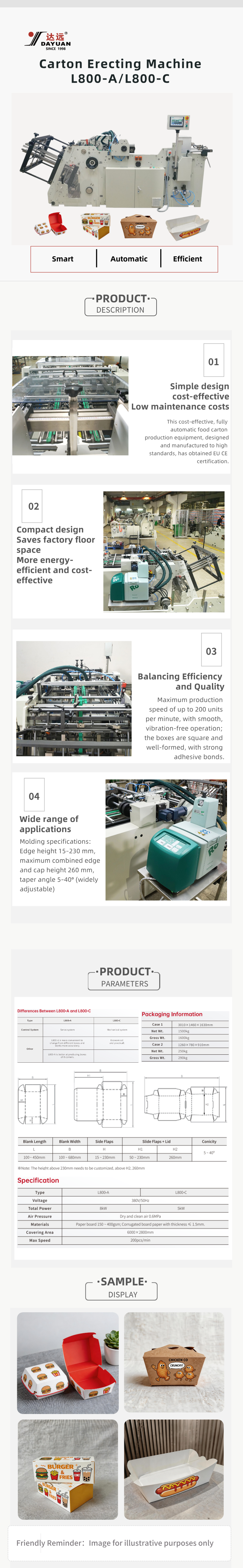

Product Overview

The L800 Series Single Channel Carton Erecting Machine from Dayuan Machinery is an economical fully automatic food carton production equipment designed and manufactured in strict accordance with international high standards. It has obtained EU CE certification and is exported to many countries and regions worldwide.

This series provides two model options: L800-A (servo controlled punch) and L800-C (crank linkage controlled punch), which can be customized according to different production needs to produce cartons of various shapes and sizes. The equipment adopts an innovative vertical servo motor structure to save installation space, and features stable operation, high efficiency, cleanliness and hygiene, making it the cost-effective choice for small and medium-sized food packaging enterprises and bakery packaging factories.

Technical Advantages

Dual Model Flexible Selection

Adapting to different budgets and production needs:

• L800-A (Servo Control Version): Adopts servo system to control the punch, with more convenient changeover between different box shapes and higher positioning accuracy, especially suitable for producing 8-corner complex cartons
• L800-C (Mechanical Control Version): Adopts mature crank linkage mechanism to control the punch, with simple structure, affordable price and low maintenance cost, suitable for producing conventional shape cartons

Compact Design

Innovative vertical servo motor structure greatly reduces the horizontal space of the equipment compared with traditional horizontal layout. The whole machine covers an area of only 4000×1200mm, which can be easily installed in small and medium-sized factories, significantly improving factory space utilization.

High Speed and Stable Production

The maximum production speed can reach 200pcs/min, with stable operation without jitter. The cartons are formed squarely and bonded firmly, effectively solving the problems of forming deviation, glue opening and warping of traditional models, with high finished product yield.

Wide Adaptability

One machine for multiple uses:

• Paper Adaptation: Length 100-450mm, width 100-680mm, compatible with 150-400gsm cardboard and ≤1.5mm corrugated paper
• Forming Specifications: Edge sealing height 15-230mm (customizable above 230mm), maximum edge sealing + cover height 260mm, taper 5-40° adjustable
• Product Coverage: Pastry boxes, hamburger boxes, fried chicken boxes, french fry boxes, leak-proof trays, lidded cartons, clamshell boxes, takeaway food boxes and other various 3D cartons

International Standard Compliance

Designed and manufactured in accordance with EU CE standards, with CE certification obtained. Adopts food-grade environmentally friendly forming technology, fully complying with domestic and international food contact packaging production requirements.

Core Technical Parameters

Packaging & Shipping Information

Compatible Materials & Applications

150-400gsm food-grade white cardboard, kraft paper, coated paper, ≤1.5mm corrugated paper, biodegradable paper-based composite materials, etc.

• Bakery Industry: Pastry boxes, cake boxes, bread boxes, dessert boxes, cookie boxes
• Catering & Takeaway Industry: Hamburger boxes, fried chicken boxes, french fry boxes, leak-proof trays, lidded lunch boxes, clamshell boxes
• Food Packaging Industry: Snack boxes, nut boxes, tea boxes, frozen food boxes
• Target Customers: Small and medium-sized food packaging enterprises, bakery supporting packaging factories, catering takeaway packaging factories, foreign trade export-oriented packaging factories

Overview of After-sales Service System

Dayuan Intelligent Manufacturing has established a standardized, global factory-direct after-sales service management system. Backed by 28 years of R&D and manufacturing experience in paper packaging equipment, we have built a senior technical service team covering machinery, electrical engineering and production processes, providing one-stop full-process services including installation & commissioning, operation training, fault response, spare parts supply and upgrade & iteration for customers in over 80 countries and regions worldwide. Guided by our core philosophy of Your Profit, Our Mission, we go beyond ensuring stable equipment operation, and empower customers to reduce costs and increase efficiency through full-life-cycle services, so as to deliver the long-term profitable value of the equipment.

Supplementary Notice

The actual service scope for industrial equipment is affected by multiple factors, including but not limited to: basic industrial supporting conditions in different countries and regions, differences in power and environmental standards, transportation and logistics accessibility at the customer’s factory location, professional competence and operational standardization level of the customer’s on-site operators, customized configurations at the time of purchase (such as number of printing units, special functional modules, customized process adaptation, etc.), actual operating conditions, daily maintenance level and life cycle stage of the equipment. Therefore, this policy is for reference only. The final service scope, response time, warranty terms and cost provisions shall be subject to the formal business contract signed by both parties.

Frequently Asked Questions (FAQ)

A: The core difference lies in the control system: L800-A adopts servo system to control the punch, with more convenient changeover and higher precision, especially suitable for 8-corner complex cartons; L800-C adopts crank linkage mechanical system, with simple structure, affordable price and low maintenance cost, suitable for conventional shape cartons.

A: Both L800-A and L800-C have a maximum production speed of 200pcs/min. The actual speed may vary slightly according to carton size and material.

A: It can produce pastry boxes, hamburger boxes, fried chicken boxes, french fry boxes, leak-proof trays, lidded cartons, clamshell boxes, takeaway food boxes and other various 3D cartons, adapting to most conventional food packaging needs.

A: The whole machine covers an area of only 4000×1200mm. With vertical servo motor structure, it is very space-saving and can be easily installed in small and medium-sized factories.

A: Yes, the L800 series single channel carton forming machine has obtained EU CE certification, is designed and manufactured in accordance with international high standards, and fully complies with domestic and international food contact packaging production requirements.

A: The L800-A servo version has more convenient changeover, generally completed in 1-2 hours; the L800-C mechanical version takes about 2-3 hours, depending on the complexity of the box shape.
