Product Description
Automatic Paper Cone Cup Making Machine in China Zb1-a
Machine Introduction:
The paper cone cup machine (Straight Brim) can be used for the
production of snack and drinking cones of coated, non-coated or
dry-waxed paper.It offers the highest production speed of up to 200
pieces per min. The machine covers an area of 4M × 1.65 M and
weighs approximately 2 tons.
Dayuan is an experienced manufacturer of paper cone cup machine
based in China. Located in Zhongshan City we are provided with
convenient transportation which can help you reduce the
international transportation costs. If you would like to know more
about any of our products, please turn to the corresponding pages
of ice cream paper cone machine, automatic paper punching machine,
carton erecting machine, aluminum foil paper, etc. We welcome you
to contact us and we look forward to working with you.
Function And Features:
1.This equipment can be equipped with 1-4 color printing designs
(nice color designs)
2.This equipment can produce different size of cup coater.
3.The production process for whole machine is machinery,
photoelectricity and pneumatic system
4.The machine can have multi types (round ,square etc) by changing
the moulds.
5.It can deal with the waste in the recyling box.
6.It's easy to controll and operate the machine.
7.The machine can process multi layers for the paper cup coater.
Paper Cone Cup Machine Specification
| Machine type | ZB1-A |
| Specification | 1.5-14oz |
| Voltage | 380V/50HZ |
Covering Area | 4.0M*1.65M |
| The Total Power | 9KW |
| Height | 70-145mm |
| Maximum Production Speed | 200 pcs/min |
| Air Pressure | 0.6Mpa (Dry and clean compressed air) |
| Print Logo | Yes |
| Wall angle | 40° |
| Maximum web width | 180mm |
| Max.reel diameter | 1200mm |
| Advantage | Available to make any special size paper cup machine and cup mould |
| Materials | Coated Paper 90-120gsm, White Kraft Paper and Wax Paper 90-150gsm. |
Packaging And Shipping
| Packaging | The normal package is wooden Case(Size: L*W*H). We will pack it
according to customer's special request.If export to Europe
countries, the wooden box will be fumigated. |
| Packaging Dimension |
| Case 1 | Case 2 |
| Szie | 2250mm* 1760mm* 1960mm | 1250mm* 1200mm*900mm |
| Net Weight | 900 KG | 250 KG |
| Gross Weight | 950 KG | 300 KG |
| Shipping | By Sea,or as arranged |
Detailed Photos

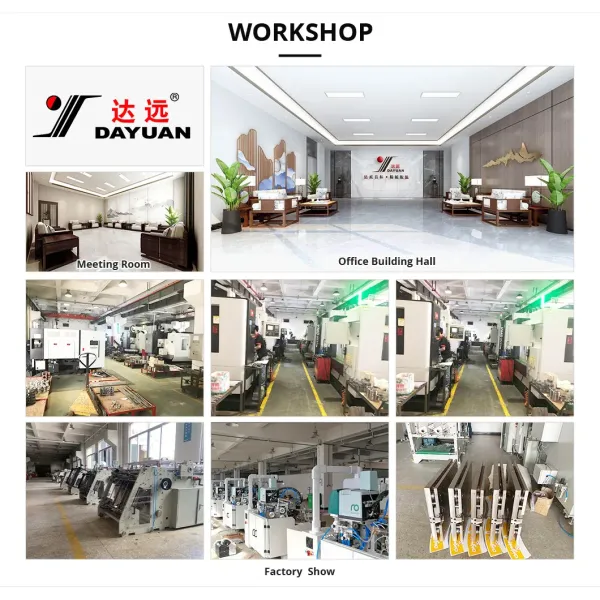

Company Profile
Our company supplys different kinds of products. High quality and
favaroble price. We're pleased to get your Inquiry and we will come
back to as soon as possible. We stick to the principle of "quality
first, service first, continuous improvement and innovation to meet
the customers" for the management and "zero defect, zero
complaints" as the quality objective. To perfect our service, we
provide the products with the best quality at the reasonable price.
Applications of 4 oz Paper Cone Cup
Our paper cone cup is a better choice than the traditional paper
cup and plastic cup for public places like airports, railway
stations, bus stations, banks, hospitals, hotels, restaurants,
stadiums, exhibition centres, schools, office buildings, etc.
FAQ
Why choose us?24 hours on line, quickly reply, good after servince!1) Do you offer samples?
--- Yes, We can supply the sample if we have ready items in stock,
but the buyers have to pay the courier cost.
2) How long will it take me to get the samples?
---After you pay the postage, the sample will be sent to you about
1-3 days.
3) What is your terms of delivery?
--- EX-WORK, CIF, FOB.
4)Can you produce according to the samples?
---Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
5) Can I customize my own product?
---Yes. The design,logo,lable,package and etc.
6) What is the payment term?
Normally, it's T/T payment and L/C at sight.
7) Does the cup have peculiar smell?
---The printing ink we use is no irritating smell, it is food
grade.
8) How to control the leakage problem during the mass production?
---We have strict quality control system. We adopt regular sampling
during the production,All product are 100% tested before shipping.
We ensure they 100% work. Quality is most important for us.
