| Categories | High Temperature Fiberglass Cloth |
|---|---|
| Brand Name: | Wingsec |
| Model Number: | Silica Cloth |
| Certification: | Heat Resistance Test Report |
| Place of Origin: | China |
| MOQ: | No Limted |
| Price: | 3.8-8 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000Meters per day |
| Delivery Time: | 10-12 Days |
| Packaging Details: | Each Roll in Polyester Bag, Then in Carton Box |

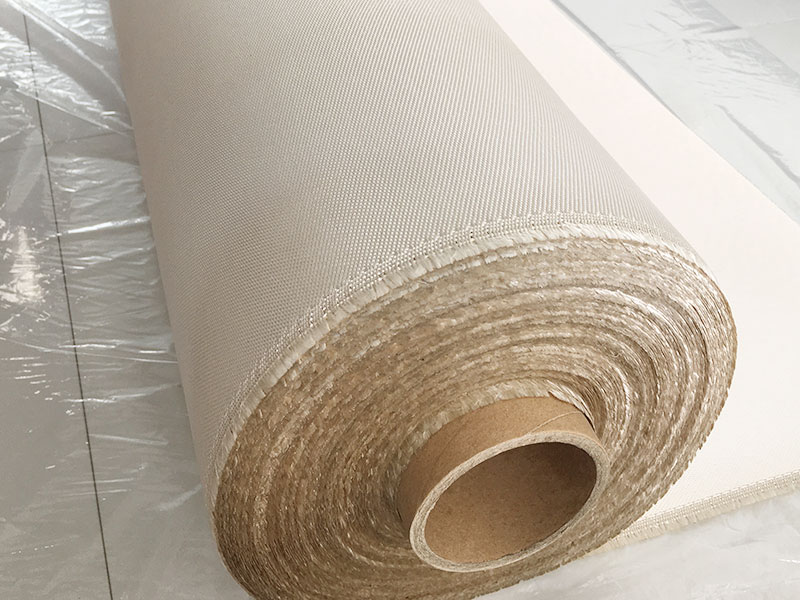

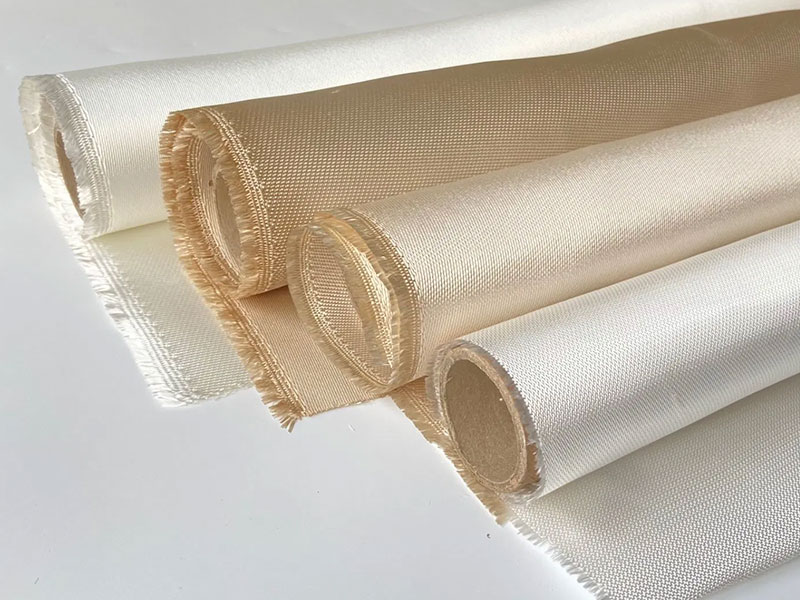

| Product Name: | 650gsm Fire Resistance Fiberglass High Silica Cloth |
| Color: | White/Yellow |
| Certificate: | Fire Test Heat Resistance Standard |
| Width: | 92/100/152cm |
| Application: | Aerospace, Electronics, Chemical Process, Welding |
| Length: | 50 meters per Roll in Carton Box |
| Features: | Soft point nearty 1700 ℃, long-period service at 1000 ℃ |
| Material: | Fiberglass Cloth Fabric |
| Company Info. |
| Yidun (Jiangsu) High Temperature New Material Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Wingsec your trusted source for high-quality fireproof insulation fabrics. We are proud to introduce our exceptional product line of High Silica Fabrics, designed to provide superior thermal protection in high-temperature environments. With an impressive temperature resistance of up to 1000°C (1832°F), our high silica fabrics offer unmatched performance and reliability. Read on to discover the outstanding features and applications of our high silica fabric range.
Style | Thickness(mm) | Width (cm) | Weight (gsm) | SiO₂ % | LOI | Weave |
WSBWS300 | 0.3土0.05 | 92/100 | 300土30 | ≥96 | ≤3 | Plain |
WSBWS300B | 0.3土0.03 | 92/100 | 300土30 | ≥96 | ≤3 | 1/2 Twill |
WSBWS400B | 0.4土0.04 | 92/100 | 440土40 | ≥96 | ≤3 | 2/2 Twill |
WSBSW400C | 0.4土0.04 | 92/100/152 | 440土40 | ≥96 | ≤3 | 2/2 Twill |
WSBWT400 | 0.4土0.04 | 92/100/152 | 400土40 | ≥96 | ≤3 | Plain |
WSBWS650 | 0.65土0.1 | 92/100/152 | 650土40 | ≥96 | ≤3 | 3/8 Satin |
WSBWS1100 | 1.0土0.1 | 92/100/152 | 1100土60 | ≥96 | ≤3 | 5/12 Satin |
WSBWS1150 | 1.15土0.15 | 92/100/152 | 1150土60 | ≥96 | ≤3 | 5/12 Satin |
WSBWS1250 | 1.25土007 | 92/100/152 | 1250土60 | ≥96 | ≤3 | 5/12 Satin |
Our high-silica fabrics possess numerous superior properties that distinguish them from traditional fiberglass fabrics. These properties include high-temperature resistance, thermal shock resistance, and excellent electrical insulation. The outstanding abrasion resistance, high strength, and unique silicon fiber weave structure of our products make them ideal materials for the power generation and metalworking industries.
Main Applications
We are dedicated to delivering high-purity, premium-quality products. Our high-silica fiberglass cloth is expertly woven from 96% amorphous silica fibers, creating a distinctive silica texture that provides outstanding abrasion resistance and exceptional strength. The result is a high-strength woven silica cloth engineered to safeguard equipment and personnel in extreme temperatures and demanding environments.





FAQs
Q: Why choose us?
A: Wingsec's management and staff have over 20 years of combined
experience in the industrial textiles industry. Leveraging advanced
equipment, Wingsec is committed to providing customers with
high-quality, cost-effective products.
Q: What is your delivery time?
A: We typically ship within 10 days of order, but the specific
delivery time depends on the quantity you require.
Q: Where is your shipping port?
A: Typically, Shanghai Port, but custom orders are also available.
Q: Can you produce custom products?
A: Of course, we can customize according to your requirements.
Q: What payment methods do you accept?
A: We accept T/T, D/A, L/C, and D/P.
Q: Do you have other production methods?
A: Of course. We offer silicone-coated fiberglass cloth,
polyurethane-coated fiberglass cloth, stainless steel
wire-reinforced alkali-free fiberglass cloth, vermiculite-coated
fiberglass cloth, graphite-treated fiberglass cloth, calcium
silicate-coated fiberglass cloth, EPDM-coated fiberglass cloth,
fluororubber-coated fiberglass cloth, aluminum foil-coated
fiberglass cloth, woven lock/finished fiberglass cloth, fire
blankets, welding blankets, and customized solutions for your
insulation needs. We look forward to hearing from you.

|
