| Measurement method: | Standard 10 - bucket combination electronic scale, 1.6L hopper |
| Measuring range: | 2500ml ( subject to actual materials ) |
| Place of Origin: | Foshan |
| Total power: | 3kw |
| Packing speed: | 20 - 60 bag / min |
| Certification: | CE |
| Payment Terms: | D/A,D/P,T/T,Western Union, |
| Model Number: | SLIV-420 |
| Delivery Time: | 15-25/day |
| Machine weight: | 600kg |
| Bag size: | ( W ) : width 100 - 200mm ( W ) mm length 300mm |
| Air pressure and air consumption: | 0.65Mpa 0.8m3 / min |
| Brand Name: | Shiyuan |
| Sealing category: | Back seal , gusset pillow bag |
| Name: | Granule Packing Machine |
| Price: | Negotiable |
| Packaging Details: | 1740*1300*2600mm |
| MOQ: | Negotiable |
| Supply Ability: | 100 Set/Month |
| Maximum width of roll film: | 420mm |
| Machine size: | 1265 ( L ) x 1060 ( W ) x 1600 ( H ) mm |
| Company Info. |
| Foshan Shiyuan Intelligent Packaging Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

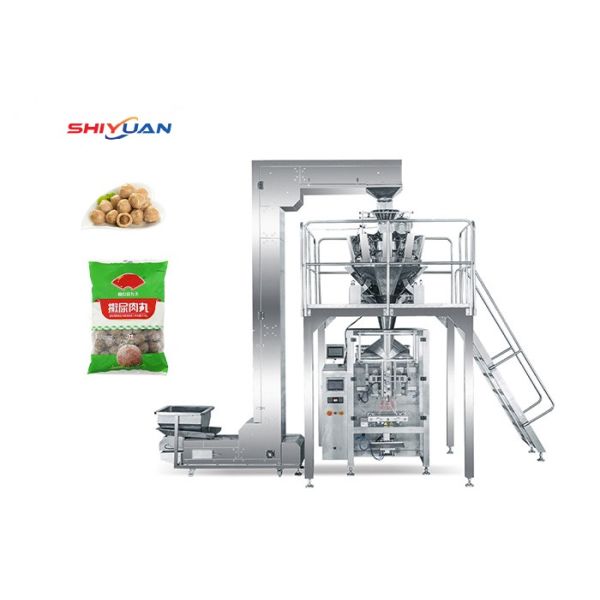

Wholesale Automatic Granule Packing Machine For Cocoa Beans Sugar Rice
Main feature
1. This machine can finish : forming bag--measuring--material
filling—sealing—counting—date code printing, all the work
automatically;
2. Photoelectric and tracing system or computer system can be
provided without your specific requirements.
3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;
4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.
The packing machine produced by our company is a rapid quantitative packaging machine integrating weighing,seaming,packaging and conveying.Weighing accuracy does not accept external influences and high stability.It is widely used in light industry,chemical industry,metallurgy,building materials,port,mining,food,food and other industries.
Granule Packaging Machine Specification
| Packing Material | OPP / CPP OPP / PE NILO / PE PE |
| Measuring Range (Max) | 2500ML |
| Bag Width | 100 - 200mm |
| Bag Length (max) | 300mm |
| Packing Speed | 5 - 60bag / min |
| Max Width of Roll Film | 420mm |
| Voltage | 220VAC / 50HZ |
| Power | 3KW |
| Product Size | 1265L * 1060W * 1600H |
| Net Weight | 400KG |
| Name | 10 Head Weigher Checkered Plate |
| Model No. | SL - 10 - 1 |
| Features | 60o steep discharge chute makes sure products discharge is acted smoothly. Equipped with a especially designed central cone, rotary top cone can dispense the products into each linear feeder pans evenly. Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed hoppers. It is suitable for weighing soft and material, such as cheese,jelly candy etc. |
| Max. Capacity(g) | 100 - 1000g |
| Weighing Accuracy | ± 1 - 5g |
| Max. Weighing Speed | 50Bags / Min |
| Hopper Volume | 1.6L |
| Control Panel | 7"LCD Touch Screen |
| Driving System | Step Motor |
| Power Requirements | 220V / 1500W / 50/60HZ / 10A |
| Dimension(mm) | 1620 ( L ) × 1100 ( W ) × 1100 ( H ) |
| Weight | 380KG |
| Name | Dip angle style elevator |
| Model No. | SL - 350 |
| Operational Throughput | 6 cubic / h |
| Voltage | 220V / 380V |
| Power | 2KW |
| Name | Finished Product Conveyor |
| Model No. | SLIV-1000 |
| Material | 304SS |
| Conveying height | 800mm |
| Throughput | 50 - 300mm/s |
| Power | 250W |
| Dimension | 2190L* 437W * 1050H |

|
