Flexible Cuplock Scaffolding System Rigid Access Tower Scaffold Customized

Categories Cuplock Scaffolding System
Brand Name: WKS
Certification: ROHS
Place of Origin: Hebei,China
MOQ: 200/Piece
Price: US $8.90 - 12.00/ Piece
Payment Terms: T/T
Supply Ability: 1000 piece in 10 days
Delivery Time: 10-30 workday
Packaging Details: Bundled / Tied in bundles/Optimization of container loading
Product name: Cuplock Scaffolding System
diameter: 48mm
thickness: 3.0/3.25mm
Quality guarantee: 2 year
peculiarity: Easy Assembling
technology: CO2 arc welded
Surface treatment: Painted/Galvanized
colour: Customized Colour
dimension: 1200,1800,2400mm or as your request
Customize or not: Available in custom or standard sizes
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Flexible Cuplock Scaffolding System Rigid Access Tower Scaffold Customized

Cuplock Scaffolding with 1.8m Ledger and 2.0m Standard for Access Tower
Overview
Cuplock Scaffolding is a high-load modular system designed for fast assembly in building facades, bridge decks, and heavy-duty shoring. It uses a unique cup-and-blade locking mechanism on vertical standards, eliminating the need for loose bolts and enabling rapid, tool-free erection for large-scale projects.
Features & Functions
  • Tool-Free Quick Locking: Horizontal ledgers lock into welded cups with a simple hammer-driven twist. This design allows a single worker to secure multiple connections in seconds, drastically reducing assembly and dismantling time compared to tube-and-coupler systems.
  • High Load Capacity & Rigidity: Engineered with high-yield steel tubes and forged blade connections, the system provides exceptional axial strength and lateral stability, making it ideal for supporting heavy concrete pours and formwork loads.
  • Modular Flexibility: Standard 500mm cup spacing allows for precise height adjustments and easy adaptation to various floor heights and platform levels without custom cutting.
  • Enhanced Safety & Durability: The positive mechanical lock prevents accidental disengagement, while hot-dip galvanized finish ensures long-term corrosion resistance in harsh environments.
Key Specifications
  • Material: High-Yield Steel Q345 (S355)
  • Standard Tube: 48.3mm OD x 3.2mm / 4.0mm Wall Thickness
  • Cup Spacing: 500mm (Standard Intervals)
  • Load Capacity: Up to 30-40 kN per standard leg (varies by bracing)
  • Surface Finish: Hot-Dip Galvanized (HDG)
Competitive Advantages
  • Superior Cost Efficiency: Faster assembly translates to significant labor cost savings. The system offers a lower total cost of ownership than ringlock for standard rectangular layouts, with high reusability and minimal maintenance.
  • Optimized for Speed: The intuitive connection system requires no specialized skills or tools, enabling crews to erect structures up to 40% faster than traditional scaffolding.
  • Reduced Component Loss: With no small loose parts like nuts or bolts, the system minimizes inventory loss and simplifies site management.

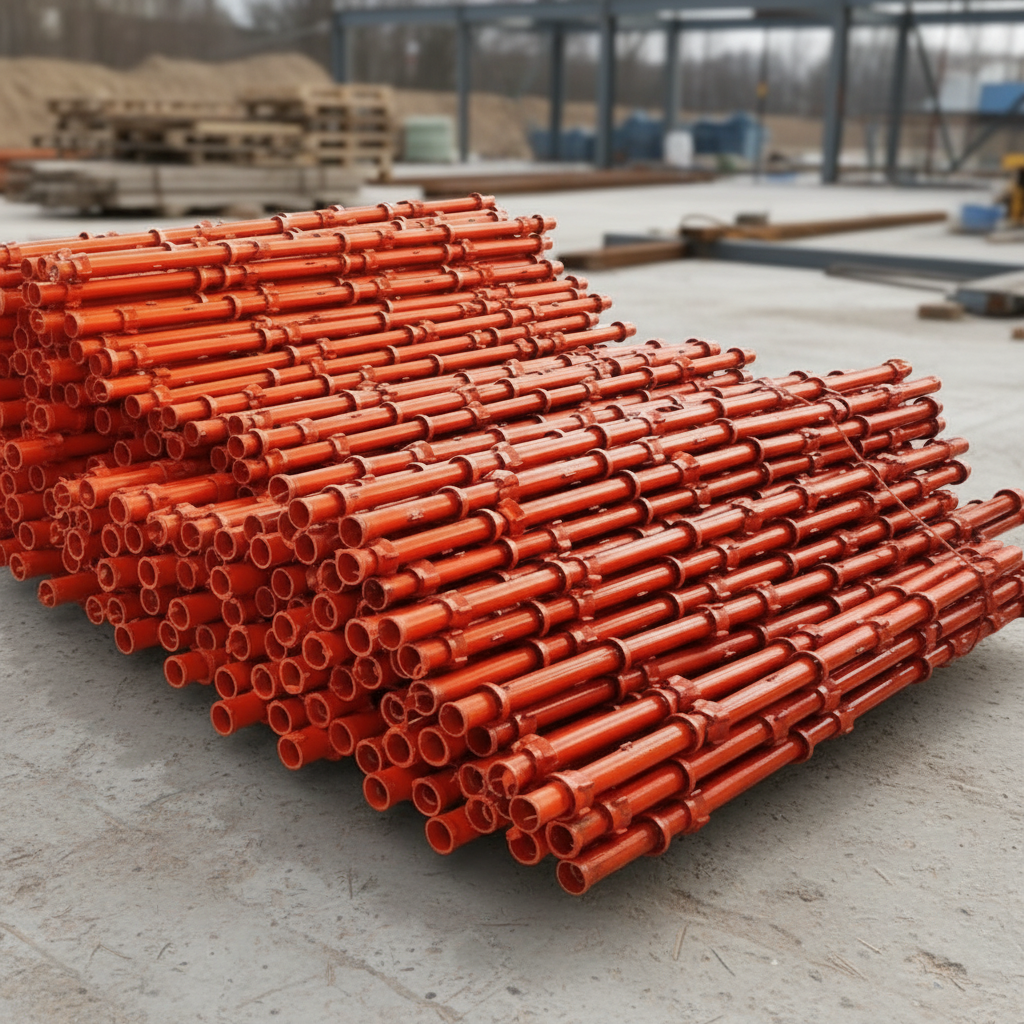

Cuplock Scaffolding System
Product Parameters
Standards (Uprights)
Item No.LengthWeightPicture
BSCS 3003m/9'10"17.5kg/38.25 IbsBSCS 300 Standard
BSCS 2502.5 m/8'2"14.57 kg/32.12 Ibs
BSCS 2002m/6'2"11.82 kg/26.07 Ibs
BSCS 1501.5 m/4'11"9.05 kg/19.95 Ibs
BSCS 1001 m/3'3"6.3 kg/13.91 Ibs
BSCS O500.5m/1'8"3.5 kg /7.77 Ibs
Ledgers (Horizontal Braces)
Item No.LengthWeightPicture
BSCL 2502.5 m/8'2"9.35 kg/20.61 IbBSCL 250 Ledger
BSCL 1801.8 m/6'6.85 kg / 15.1 Ibs
BSCL 1501.5 m/4'11"5.75 kg/9.46 Ibs
BSCL 1201.2m/44.29 kg/13.91 Ibs
BSCL 0900.9m/3'3.55 kg /7.83 Ibs
BSCL 0600.6m/2'2.47 kg / 5.45 Ibs
Our Services
  • Customized Production Services: Professional engineering team provides detailed product application solutions based on your project drawings.
  • Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs.
  • Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, responsible for operating export business of formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.
How can I get a quotation?
For simple projects with your own engineer, provide a bill of materials. For complex projects like apartments and residences, our consultants will develop an application plan based on your engineering drawings.
How long does it usually take to complete the plan and quotation?
Generally 5-8 days to complete specific plans and detailed quotations.
Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping cost.
How long is the estimated delivery time after the contract is signed?
Usually 30-60 days depending on project complexity. More accurate delivery times are provided during planning.
Is the plastic template prone to deformation?
In long-term high temperature environments, slight deformation may occur. We recommend aluminum alloy formwork or steel frame wood formwork for high temperature areas.
What are the defects of the plastic template system?
Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.
What is the payment method you require?
Payments ≤1,000USD: 100% in advance. Payments ≥10,000USD: 30% T/T in advance, balance before shipment. L/C also accepted.
Cuplock Scaffolding system application in construction project
