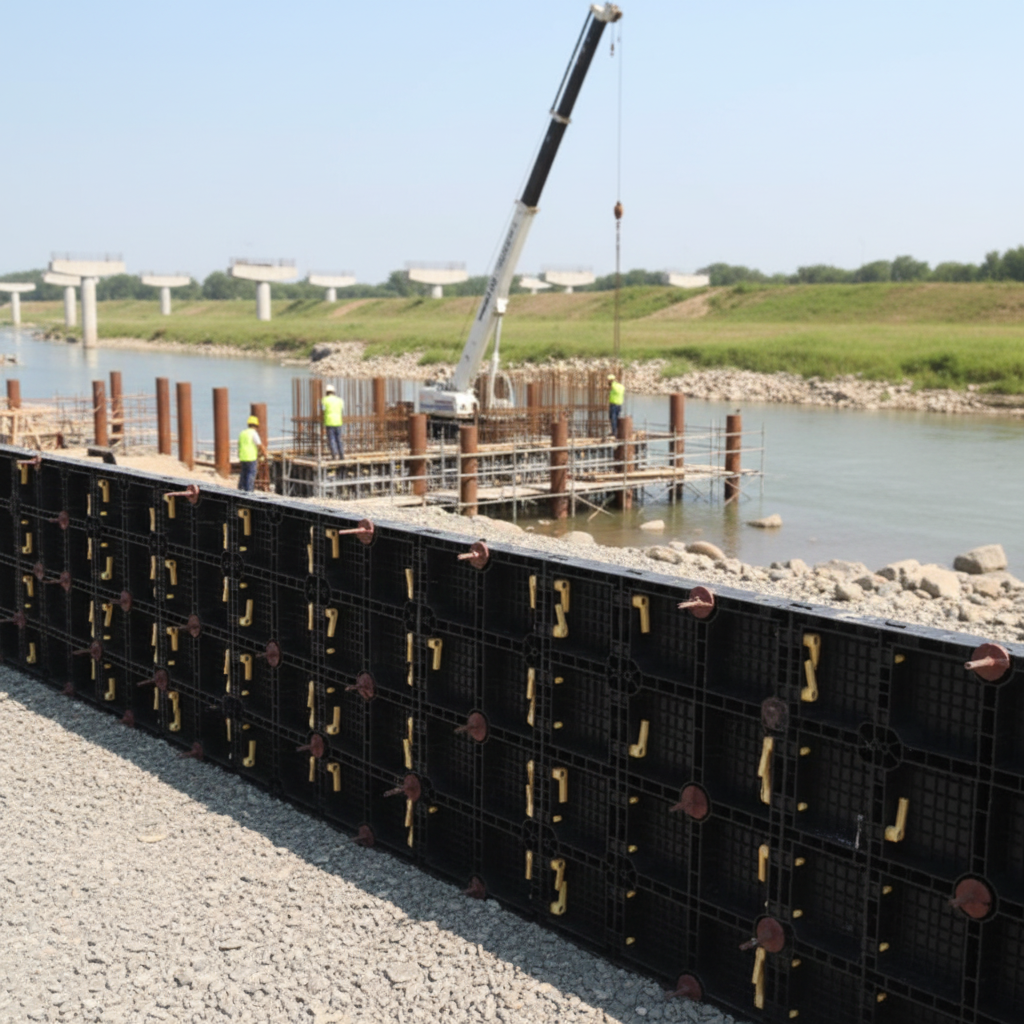

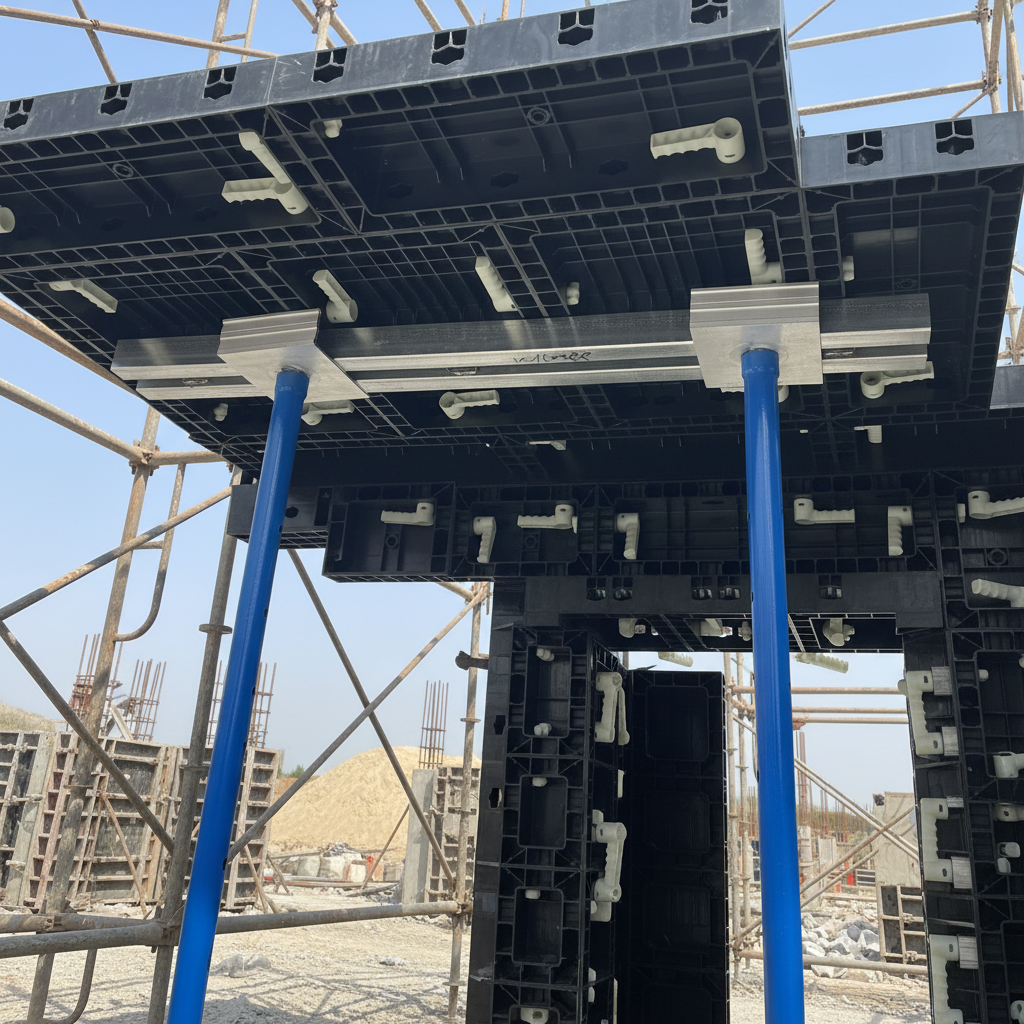

Interlocking ABS Plastic Formwork System Easy Assembly for Concrete
Work
A premium construction formwork manufactured from high-grade ABS
plastic, engineered for maximum durability and performance. It
provides a superior, reusable alternative to traditional timber and
steel forms, especially suitable for projects demanding high cycle
counts and excellent surface finish.
Key Features & Functions
- Outstanding Impact Strength: Superior toughness and crack resistance withstand heavy loads and
harsh site handling, reducing breakage and waste.
- Ultra-Smooth Finish: Produces a consistent, high-quality concrete surface that often
eliminates the need for plastering or additional finishing.
- Excellent Chemical & Weather Resistance: Highly resistant to moisture, UV rays, and common construction
chemicals, ensuring long-term stability in varied climates.
- Lightweight & Efficient: Easy to transport, install, and strip manually, significantly
reducing labor time and costs compared to heavier materials.
Main Specifications
- Material: Reinforced ABS (Acrylonitrile Butadiene Styrene)
- Standard Size: 1220mm x 2440mm (4ft x 8ft) or customizable
- Thickness: 12mm, 15mm, 18mm options
- Reuse Cycles: 80+ times
- Operating Temperature: -30°C to 80°C
Competitive Advantages
- Optimal Lifecycle Cost: The highest reuse rate in its class delivers the lowest
cost-per-pour over time, offering outstanding ROI.
- All-Weather Reliability: Performs consistently in extreme hot or cold environments without
warping or becoming brittle.
- Eco-Friendly & Sustainable: 100% recyclable, reduces deforestation and construction waste,
supporting green building certifications.
Technical Features
| Item | Features |
|---|
| Materials | ABS (Acrylonitrile Butadiene Styrene) |
| Density | 1.03g/cm³-1.28g/cm³ |
| Weight | 14kg/sqm |
| Max Size | 1.2*0.6m |
| Max Casting Slab Thickness | 300mm |
| Maximum Load Pressure | 60KN/sqm for wall & 80KN/sqm for column |
| Operation Temp | -20℃ to +80℃ |
| Surface Hardness | 94 |
Detailed Specifications
| Name | Size (Length*Width*Height mm) | Color | Weight (KG) | Material |
|---|
| Panel | 1200*600*75 mm | Black | 10.1 | ABS (Acrylonitrile Butadiene Styrene) |
| 400*600*75 mm | Black | 3.7 | ABS (Acrylonitrile Butadiene Styrene) |
| 350*600*75 mm | Black | 3.4 | ABS (Acrylonitrile Butadiene Styrene) |
| 300*600*75 mm | Black | 2.7 | ABS (Acrylonitrile Butadiene Styrene) |
| 250*600*75 mm | Black | 2.5 | ABS (Acrylonitrile Butadiene Styrene) |
| 200*600*75 mm | Black | 2.2 | ABS (Acrylonitrile Butadiene Styrene) |
| 180*600*75 mm | Black | 2.1 | ABS (Acrylonitrile Butadiene Styrene) |
| 300*300*75 mm | Black | 1.4 | ABS (Acrylonitrile Butadiene Styrene) |
| 300*250*75 mm | Black | 1.3 | ABS (Acrylonitrile Butadiene Styrene) |
| 300*200*75 mm | Black | 1.25 | ABS (Acrylonitrile Butadiene Styrene) |
| 300*150*75 mm | Black | 0.7 | ABS (Acrylonitrile Butadiene Styrene) |
| 250*250*75 mm | Black | 1.13 | ABS (Acrylonitrile Butadiene Styrene) |
| 250*200*75 mm | Black | 0.9 | ABS (Acrylonitrile Butadiene Styrene) |
| 200*200*75 mm | Black | 0.8 | ABS (Acrylonitrile Butadiene Styrene) |
| 200*150*75 mm | Black | 0.6 | ABS (Acrylonitrile Butadiene Styrene) |
| Outside Corner Panel | 250*600*75 mm | Black | 2.85 | ABS (Acrylonitrile Butadiene Styrene) |
| Internal Corner Panel | 250*100*600*75 mm | Black | 3.5 | ABS (Acrylonitrile Butadiene Styrene) |
| Top Angle Panel | 250*250*100*75 mm | Black | 1.5 | ABS (Acrylonitrile Butadiene Styrene) |
| Handle | - | White | 0.1 | PA (Polyamides) |
Frequently Asked Questions
Are you a trading company or a manufacturer?
Firstly, we are a subsidiary foreign trade company of a group
company, mainly responsible for operating the export business of
formwork and scaffolding products for the group company. Secondly,
our group company has two major production bases, specializing in
the production and processing of formwork and scaffolding products
for over 20 years.
How can I get a quotation?
If you are a simple concrete pouring project, such as walls,
swimming pools, main structures, and basements, and you have your
own engineer, you can directly provide us with a bill of materials,
and we will provide you with a quotation according to the bill of
materials. If you are a concrete pouring project for apartments,
residences, villas, etc., and need to use plastic formwork products
as a whole, our professional consultants will communicate with you
in detail. After you provide us with the engineering architectural
drawings and structural drawings, our engineers will develop an
application plan for you and provide you with a quotation based on
the specific plan.
How long does it usually take to complete the plan and quotation
after we provide the engineering architectural drawings and
structural drawings?
Generally, it takes about 5-8 days to complete the specific plan
and detailed quotation.
Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping
cost.
How long is the estimated delivery time after the contract is
signed?
According to the complexity of the project, it usually takes 30-60
days to complete the stocking. We will estimate a more accurate
delivery time for you during the planning and quotation process.
Is the plastic template prone to deformation?
If the construction environment where the project is located
belongs to long-term high temperature, the increase in temperature
of the concrete pouring project may cause slight deformation of the
formwork. It is recommended to use all aluminum alloy formwork or
steel frame wood formwork system in high temperature areas.
What are the defects of the plastic template system?
The load force is too small to complete the construction of
large-sized concrete structures; Poor high temperature resistance,
slight deformation may occur when used in high-temperature areas.
What is the payment method you require?
Payment <= 1,000USD, 100% in advance. Payment >= 10,000USD,
30% T/T in advance, balance before shipment. Or L/C.
