8118 IPE Brushless DC Motor 100KV

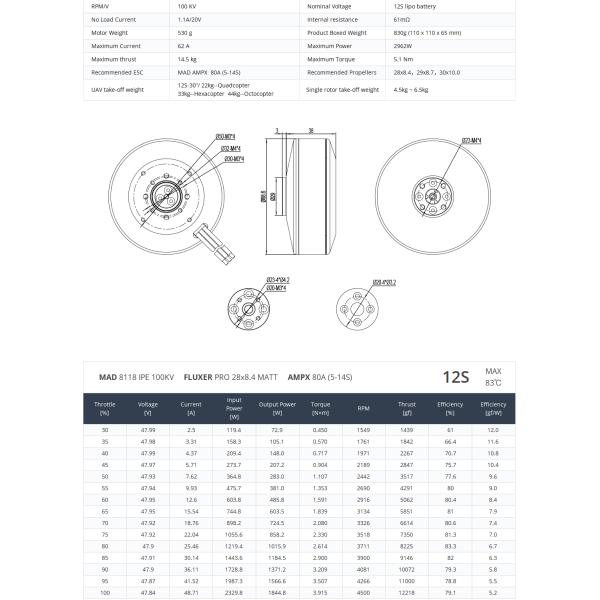

Technical Specifications
| Attribute | Value |
|---|
| Motor Model | 8118 IPE V1.0 |
| Motor Size | D:88.6 x41 mm |
| Propeller Mounting Holes | tD:23 M4x4 |
| Shaft Diameter | IN: 15 mm |
| Bearing | 6802ZZ*2 |
| Number of pole pairs | 20 |
| Cable Length | 150 mm 16# Awg(Black) silicone |
| Motor Mounting Holes | D:30 M3x4, D:32 M4x4, D:50 M3x4 |
| Disruptive test | 500 V |
Product Overview
The 8118 IPE Brushless DC Motor 100KV was a popular power motor in
its line, offering the same efficiency as the 8108 model with
increased power output. Primarily used in robotic arm applications,
this motor has been succeeded by the M9C12 100KV and 90KV models.
RPMNV 100 KV
Nominal Voltage 12S lipo battery
No Load Current 1.1A/20V
Internal resistance 61m2
Motor Weight 530 g
Product Boxed Weight 830g (110 x110 x 65 mm)
Maximum Current 62 A
Maximum Power 2962W
Maximum thrust 14.5 kg
Maximum Torque 5.1 Nm
Recommended Esc MAD AMPX 80A (5-14S)
Recommended Propellers 28x8.4,29x8.7,30x10.0

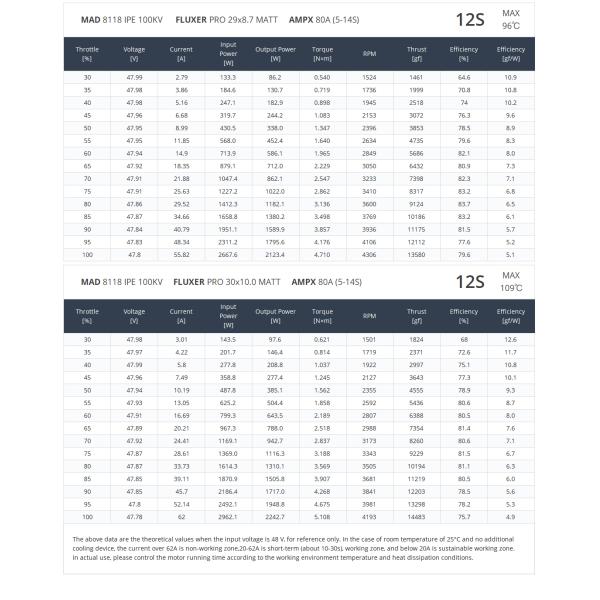

Performance Specifications
UAV take-off weight: 12S-30"/22kg--Quadcopter 33kg--Hexacopter
44kg--Octocopter
Single rotor take-off weight: 4.5kg~6.5kg
