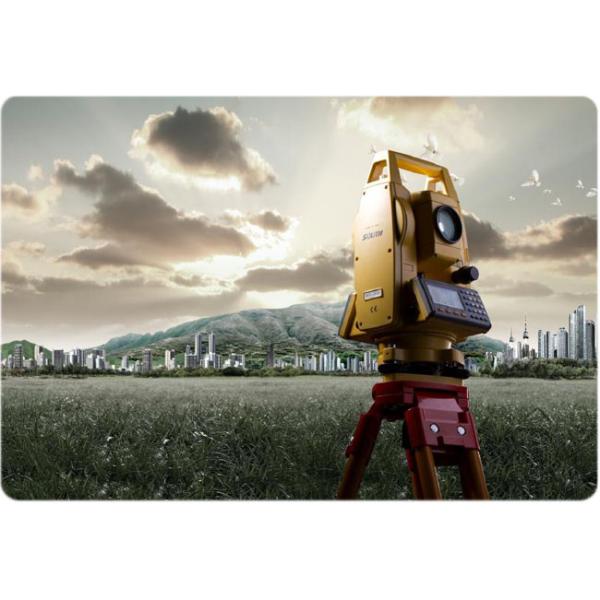

South NTS-362R Reflectorless Total Station

NTS-362R

Telescope:


Erect

Magnification

30×

Effective aperture

Telescope:45mm(EDM:50mm)

Resolving power

3″

Field of view

1°30′

Minimum focus

1m

Tube length

154mm

Angle Measurement

Measuring method

absolute encode

Dia of circle(vertical, horizontal)

79mm

Minimum reading

1″ 5″Selectable

Detection method

Horizontal: Dual Vertical: Dual

Accuracy

2″

Distance Measurement:

Max. Range

single prism

5km

Reflectorless

300m(object in shade,or sky overcast)

Displaly

Max:99999999.9999m Min:0.1mm

Unit

m/ft

Accuracy

Reflectorless

Fine

±(5mm+2ppm·D)

Tracking

±(10mm+2ppm·D)

Reflector

Fine

±(2mm+2ppm·D)

Tracking

±(5mm+2ppm·D)

IR sheet

±(5mm+2ppm·D)

measuring time

reflectorless

Fine mode:<1.2S;Tracking mode:<0.5s

reflector

Fine mode:<1.2S;Tracking mode:<0.5s;IR sheet mode:<1.2S

Atmospheric correction

Auto correction ,manual input

Atmosphericrefraction and earth curvature correction

Auto correction ,manual input

prism constant correction

Auto correction ,manual input

Vial

Plate vial

30″/ 2mm

Circular vial

10′/2mm

Auto Vertical Compensator

Type

Dual axis Liquid-electric

Compensation range

±3′

Accuracy

3″

Optical Plumment


Erect

Magnification

3×

Focusing range

0.5m~∝

Field of view

5″

On-board Battery

type

Ni-H ,Rechargeable

Voltage

DC 6V

Continuous operation time

8 hrs

Others

Display

LCD, 6 lines ,digital

Data Communication

RS-232C,USB,SD

Operating temperature

-20°~+45ºC

Dimension

160×150×330mm,5.2kg
