Omron CP2E‑N40DT1‑D Compact PLC CPU Module 24VDC 24DI 16DO PNP Ethernet

Sinamics CP2E-N40DT1-D Overview

The CP2E‑N40DT1‑D is a high‑performance compact PLC from Omron’s CP2E series, designed for reliable machine control and industrial automation. It features 24 digital inputs, 16 PNP transistor outputs, dual Ethernet ports for stable networking and M2M communication, and fast logic processing at 0.23 µs. With built‑in positioning, high‑speed counting, and battery‑free memory backup, it delivers stable performance, easy programming, and flexible expansion for small‑to‑medium automation systems.

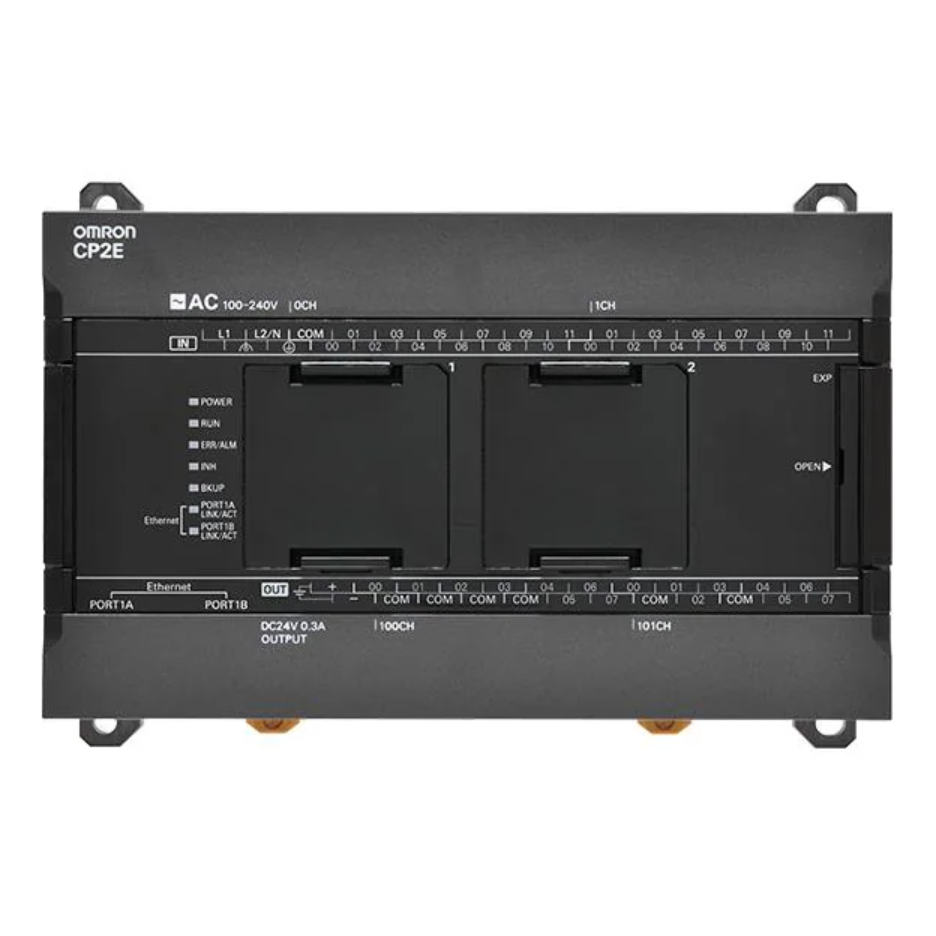

Figure 1 shows the front panel of CP2E-N40DT1-D.





















Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Model CP2E‑N40DT1‑D
Brand Omron
Power Supply 24 VDC
Digital Inputs 24 points (PNP/NPN)
Digital Outputs 16 points (PNP transistor)
Communication Dual Ethernet ports
Program Capacity 20 K steps
Logic Speed 0.23 µs









Detailed Specification
Parameter Details
Model Number CP2E‑N40DT1‑D
Series CP2E
Power Supply 24 VDC
Digital Inputs 24 points, PNP/NPN compatible
Digital Outputs 16 points, PNP transistor (source)
Total I/O 40 built‑in points
Program Memory 20 K steps
Data Memory 16 K words
Basic Execution Time 0.23 µs
Ethernet Ports 2 × RJ45 (TCP/IP, Ethernet switching)
High‑Speed Counters 6 channels, up to 100 kHz
Pulse Outputs 4 axes, up to 100 kHz, linear interpolation
Expansion Up to 3 expansion units, max 160 I/O
Real‑Time Clock Built‑in
Memory Backup Battery‑free
Operating Temperature -20°C to +60°C
Dimensions 160 mm × 90 mm × 80 mm
