High Precision Trimble Dini Digital Level Surveying Height Measurement Sensor

Categories	Auto Level
Model NO.:	Trimble DiNi
Beam Color:	No, Red
Horizontal Line:	1, 1
Vertical Line:	1, 1
After-Sales Service:	Professional Guidance
Electronic Measurement:	1.5m-100m(4.92FT-328.08FT)
Distance Measurement:	From 1.3m(4.265FT)
Resolution Distance Measurement:	1mm(0.003FT)
Measurement Time:	3s
Standard Programs:	Single Measurement with and Without Stationing, St
Transport Package:	Carton
Specification:	503040 cm
Trademark:	Trimble
Origin:	Germany
HS Code:	9015300000
Package Size:	50.00cm * 30.00cm * 40.00cm
Package Gross Weight:	8.000kg
Place of Origin:	China
Brand Name:	CETU
Certification:	CE
MOQ:	1
Packaging Details:	Carton
Delivery Time:	10-30days
Payment Terms:	T/T advance; Western union; MoneyGram,etc.
Supply Ability:	1000
Price:	$80-6000

Contact Now

Add to Cart

Company Info.

Nanjing Cetu Surveying Instrument Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

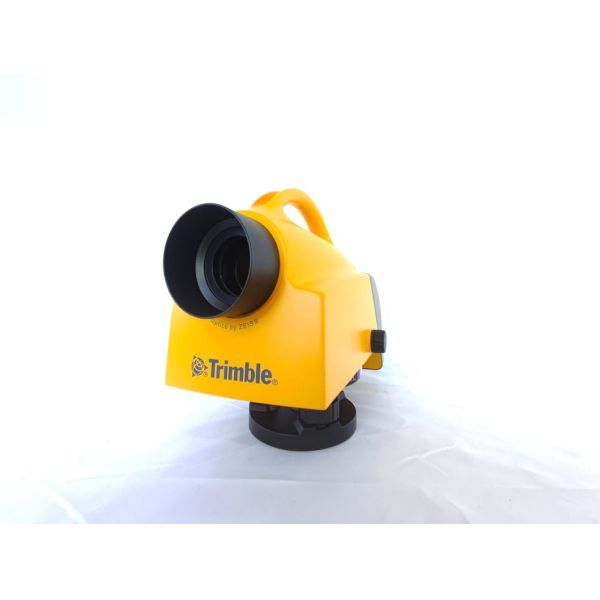

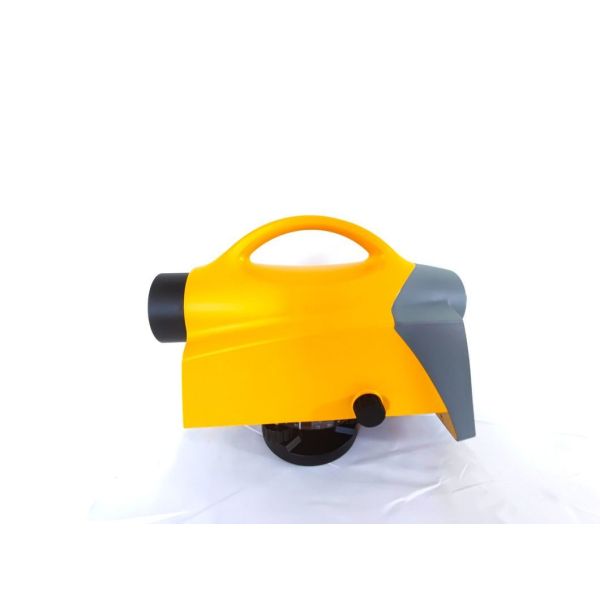

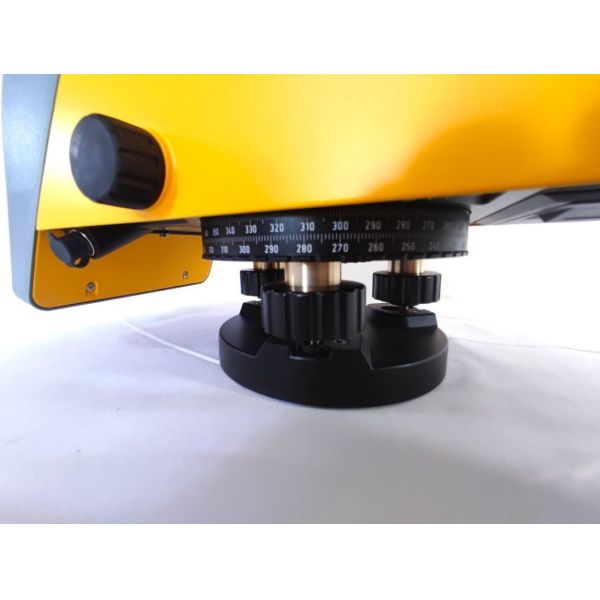

High Precision Trimble Dini Digital Level Surveying Height Measurement Sensor

High Precision Trimble Dini Level Digital Height Measurement Sensor with 1mm Resolution and 8.000kg Package Gross Weight

Best Price Trimble Dini Level Digital Height Measurement Sensor

Unequalled Performance in the Field

Designed to perform optimally whatever the job.
Dust and waterproof rating of IP55.
Battery life of 3 days.
USB Storage device stores data.

Easy To Learn, Easy to Use

Reduces number of stations needed by 20%.
Makes leveling in low light conditions easier.
Ensures greater accuracy.

Trimble Quality and Accuracy for Measuring with Confidence

Supports the Trimble Integrated Surveying Portfolio.
Proven optics by Carl Zeiss ensure the highest precision and accuracy.

	Performance specifications
Accuracy	ISO 17123-2, standard deviation height measuring per 1km(3280.84 ft) of double levelling
	Trimble DiNi 0.3mm per km	Electronic measurement	Invar precision bar code staff	0.3mm(0.001ft)
			Standard bar code staff	1.0mm(0.004ft)
			Visual measurement	1.5mm(0.005ft)
		Distance measurement	With a 20m (65.62ft) sighting distsnce
			Invar precision bar code staff	20mm(0.066ft)
			Standard bar code staff	25mm(0.082ft)
			Visual measurement	0.2m(0.656ft)
	Trimble DiNi 0.7mm per km	Electronic measurement	Invar precision bar code staff	0.7mm(0.002ft)
			Standard bar code staff	1.3mm(0.004ft)
			Visual measurement	2.0mm(0.007ft)
		Distance measurement	With a 20m (65.62ft) sighting distsnce
			Invar precision bar code staff	25mm(0.082ft)
			Standard bar code staff	30mm(0.098ft)
			Visual measurement	0.3m(0.984ft)
	Range	Electronic measurement	1.5m-100m(4.92ft-328.08ft)
		Distance measurement	from 1.3(4.265ft)
Electronic measurement	Trimble DiNi 0.3mm per km	Resolution height measurement	0.01mm /0.00001ft/ 0.00001in
		Resolution distance measurement	1mm(0.003ft)
		Measurement time	3s
	Trimble DiNi 0.7mm per km	Resolution height measurement	0.1mm /0.0001ft/ 0.0001in
		Resolution height measurement	10mm(0.033ft)
		Measurement time	2s
	Horizon circle	Type of graduation	400 grads and 360 deg
		Graduation interval	1 grad and 1 deg
		Estimation to	0.1 grad and 0.1 deg
Measurement programs	Trimble DiNi 0.3mm per km	Standard programs	Single measurement with and without stationing, stakeout, line levelling with intermediate sight and stakeout, line adjustment
		Levelling methods	BF, BFFB, BFBF, FBBF aBF, aBFFB, aBFBF, aFBBF
	Trimble DiNi 0.7mm per km	Standard programs	Single measurement with and without stationing, stakeout, line levelling with intermediate sight and stakeout
		Levelling methods	BF, BFFB, aBF, aBFFB
Environmental
Operating temperature		-20ºC to 50ºC(-4ºF to 122ºF)
Dust- and water-proof		IP55
General specifications
Telescope	Aperture	40mm(0.131ft)
	Field of view at 100m	2.2m(7.217ft)
	Electronic measurement field	0.3m(0.984ft)
	Magnification	Trimble DiNi 0.3mm per km	32x
		Trimble DiNi 0.7mm per km	26x
Compensasor	Inclination range	±15′
	Setting accuracy	Trimble DiNi 0.3mm per km	±0.2″
		Trimble DiNi 0.7mm per km	±0.5″
	Circular level	8′/2 mm with illumination
	Display	Graphical, 240x160 pixels, monochrome with illumination
	Keyboard	19-key alpha-numeric and 4 way arrow key for navigation
Recording	Internal memory	Up to 30,000 data lines
	External memory	USB flasf drive support
	Data transfer	USB interface data transfer between PC and DiNi (two-way communication)
	Real-time clock and temperature sensor	Trimble DiNi 0.3mm per km	Recording time or temperature
		Trimble DiNi 0.7mm per km	N/A
	Power supply	Internal battery	Li-lon, 7.4V/ 2.3Ah
		Operating time	3 days working time without illumination
	Weight (including battery)	3.5kg(7.72lb)
