AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit

Categories EEPROM Chip
Brand Name: MICROCHIP
Model Number: AT24CM01-SSHD-T
Certification: rohs
Place of Origin: CN
MOQ: 1
Price: consult with
Payment Terms: T/T,Western Union
Supply Ability: 100000
Delivery Time: 5-8days
Packaging Details: T/R
Operating Temperature: -40℃~+85℃
Product Catalog: EEPROM
Interface Type: I2C
Storage Capadity: 1Mbit
Clock Frequency (fc): 1MHz
Write Cycle Time (Tw): 5ms
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AT24CM01-SSHD-T 12C-Compatible (2-wire) Serial EEPROM 1-Mbit

AT24CM01-SSHD-T I²C-Compatible Serial EEPROM
1-Mbit I²C-Compatible (2-wire) Serial EEPROM with advanced features for industrial applications
Product Features
  • Low Voltage and Standard Voltage Operation
    • 1.7V (VCC = 1.7V to 5.5V)
    • 2.5V (VCC = 2.5V to 5.5V)
  • Internally Organized 131,072 x 8
  • 2-wire Serial Interface
  • Schmitt Triggers with Filtered Inputs for Noise Suppression
  • Bidirectional Data Transfer Protocol
  • 400kHz (1.7V) and 1MHz (5V, 2.5V) Compatibility
  • Write Protect Pin for Hardware Data Protection
  • 256-byte Page Write Mode with Partial Page Writes Allowed
  • Random and Sequential Read Modes
  • Self-timed Write Cycle (5ms Max)
  • High Reliability
    • Endurance: 1,000,000 Write Cycles
    • Data Retention: 40 Years
  • Green Package Options (Pb/Halide-free/RoHS Compliant)
    • 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, and 8-ball WLCSP
  • Die Sale Options: Wafer Form and Tape and Reel Available
Ordering Information
Atmel Ordering CodeLead FinishPackageVoltageDelivery InformationOperation Range
AT24CM01-SSHM-BNiPdAu (Lead-free/Halogen-free)8S11.7V to 5.5VBulk (Tubes) - 100 per TubeIndustrial Temperature (-40℃~+85℃)
AT24CM01-SSHM-TNiPdAu (Lead-free/Halogen-free)8S11.7V to 5.5VTape and Reel - 4,000 per ReelIndustrial Temperature (-40℃~+85℃)
AT24CM01-SSHD-BNiPdAu (Lead-free/Halogen-free)8S12.5V to 5.5VBulk (Tubes) - 100 per TubeIndustrial Temperature (-40℃~+85℃)
AT24CM01-SSHD-TNiPdAu (Lead-free/Halogen-free)8S12.5V to 5.5VTape and Reel - 4,000 per ReelIndustrial Temperature (-40℃~+85℃)
AT24CM01-SHM-BNiPdAu (Lead-free/Halogen-free)8S21.7V to 5.5VBulk (Tubes) - 95 per TubeIndustrial Temperature (-40℃~+85℃)
AT24CM01-SHM-TNiPdAu (Lead-free/Halogen-free)8S21.7V to 5.5VTape and Reel - 2,000 per ReelIndustrial Temperature (-40℃~+85℃)
AT24CM01-SHD-BNiPdAu (Lead-free/Halogen-free)8S22.5V to 5.5VBulk (Tubes) - 95 per TubeIndustrial Temperature (-40℃~+85℃)
AT24CM01-SHD-TNiPdAu (Lead-free/Halogen-free)8S22.5V to 5.5VTape and Reel - 2,000 per ReelIndustrial Temperature (-40℃~+85℃)
AT24CM01-XHM-BNiPdAu (Lead-free/Halogen-free)8X1.7V to 5.5VBulk (Tubes) - 100 per TubeIndustrial Temperature (-40℃~+85℃)
AT24CM01-XHM-TNiPdAu (Lead-free/Halogen-free)8X1.7V to 5.5VTape and Reel - 5,000 per ReelIndustrial Temperature (-40℃~+85℃)
AT24CM01-XHD-BNiPdAu (Lead-free/Halogen-free)8X2.5V to 5.5VBulk (Tubes) - 100 per TubeIndustrial Temperature (-40℃~+85℃)
AT24CM01-XHD-TNiPdAu (Lead-free/Halogen-free)8X2.5V to 5.5VTape and Reel - 5,000 per ReelIndustrial Temperature (-40℃~+85℃)
AT24CM01-UUM-T(1)SnAgCu (Lead-free/Halogen-free)8U-61.7V to 5.5VTape and Reel - 5,000 per ReelIndustrial Temperature (-40℃~+85℃)
AT24CM01-WWU11M(2)N/AWafer SaleNote 2N/AIndustrial Temperature (-40℃~+85℃)
Product Images

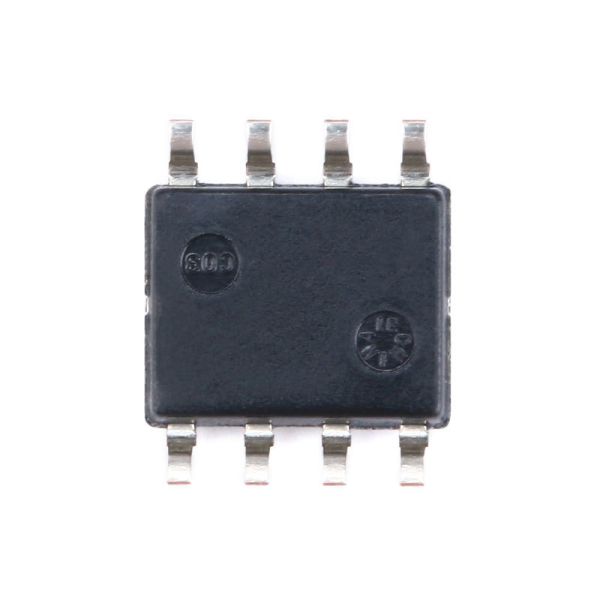

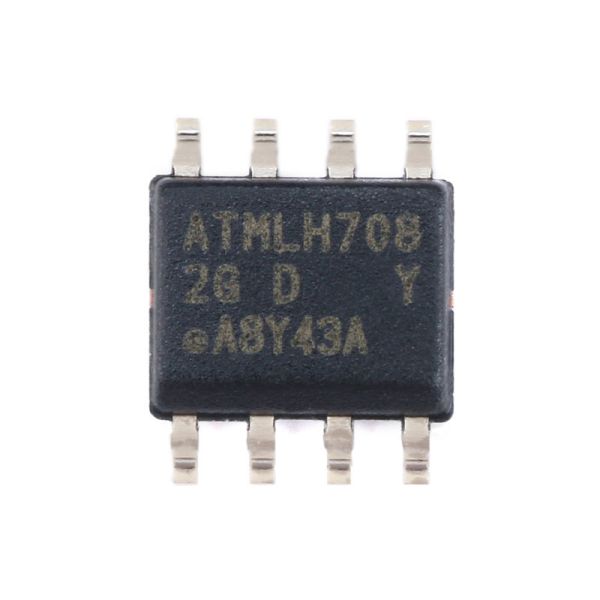

AT24CM01-SSHD-T Serial EEPROM component diagram AT24CM01-SSHD-T pin configuration and layout AT24CM01-SSHD-T package dimensions
