High Frequency Induction Heater (HF-15A/15AB)

Categories High Frequency Induction Heater
MOQ: 1
Price: 600
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000
Delivery Time: 3DAYS
Packaging Details: PLY WOOD BOX package
Model NO.: 3*380V HF-15A/15AB IGBT Type
Structure: Vertical Type
Brand: OURUIDA
Application: Heating, Quenching, Forging, Melting, Welding
Power: 15kw
Frequency: 30-100kHz
Work Voltage: 220V, 380V, 400V, 415V 440V, 480V
Transport Package: Wooden Box
Specification: CE, SGS, ISO
Trademark: ORD
Origin: China
HS Code: 8514400090
Production Capacity: 10, 000sets
Company Info.
OURUIDA CO.,LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

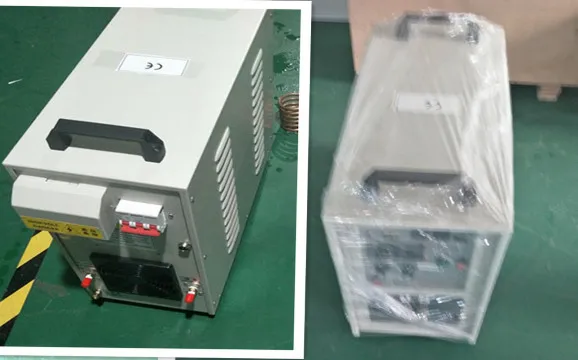

High Frequency Induction Heater (HF-15A/15AB)

Induction Heating Machine:





Advantage:
  • 1 More than 21 years experience,stable and goods performance
  • 2 CE certificated
  • 3 Copperated with CHOW TAI FOOK, Matsushita,Foxconn, Media, Gree and ZHIGAO Air conditioner.
  • 4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
Main characteristics:
  • 1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
  • 2 100% Duty cycle, continuous working is allowed at maximum power output.
  • 3 Display of heating power and heating current and oscillating frequency;
  • 4 Simple to install, Installation can be done by unprofessional person very easily;
  • 5 Light weight
  • 7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Type
HF-15AB/15A
Work Power3*380v/415v/440v/480v 50-60hz
The range of operating voltage340-430AC
Output power15KW
Input current13A
Fluctuating frequency30-100khz
Timing (Heat time,Retain time,Cool time)1-99S
The flow rate of cooling water0.15 Mpa 7.6L/Min
Water temperature protection point40centidegree
Duty cycle100% (40degree room temperature)
WeightMainparts:35Kg
SizeMain Parts:640*280*550mm


Pre-sale service:
  1. 1. recommend the most suitable machine for customers, according to their requirements.
  2. 2. Inquiry and consulting support.
  3. 3. Sample testing support.
  4. 4. View our Factory.
In-sale service:
  1. 1. Strictly manufacture the machine, according to relevant technical standards.
  2. 2. Take run test, according to relevant equipment test run regulations.
  3. 3. Strictly check up the machine, before delivery
  4. 4. Delivery on time.
After-sale service:
  1. 1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
  2. 2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  3. 3. If any big quality problems occurs out of the guarantee period, we will send maintenance
    technician to provide visiting service after checking with the customer and charge for a favorable price.
  4. 5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  5. 6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
