Super Audio Induction Heating Machine (SF-120KW)

Categories Industrial Induction Heating Machine
Model NO.: SF-120KW
Trademark: ORD
Work Voltage: 380V, 400V, 415V, 440V, 480V
Specification: CE, SGS, ISO
Price: 4000
The Range of Operating Voltage: 340-430V AC
Weight: Mainparts:150kg Transformer:105kg
Operation: Automatic and Manial
Production Capacity: 10, 000sets
Origin: China
HS Code: 8514400090
Timing (Heat Time,Retain Time,Cool Time): 1-99s
MOQ: 1
Size: Main Parts:800*600*800mm Transformer: 650*450*600m
Input Current: 180A
Water Temperature Protection Point: 40centidegree
Transport Package: Wooden Box
Company Info.
OURUIDA CO.,LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Super Audio Induction Heating Machine (SF-120KW)

Induction Heating Machine:


Advantage:
1 More than 19 years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.

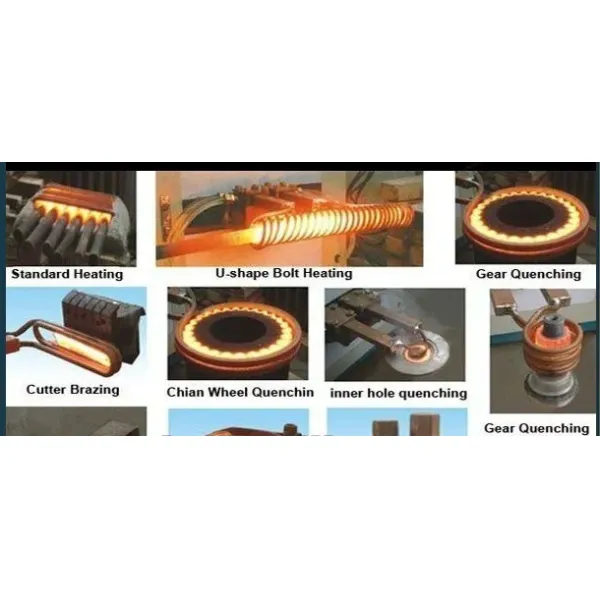

4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil

Main characteristics:
1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
 TypeSF-120AB
 Work Power 3*380v/415v/440v/480v 50-60hz
 The range of operating voltage 340-430V AC
 Output power 120KW
 Input current 180A
 Fluctuating frequency 30-50khz
 Timing (Heat time,Retain time,Cool time) 1-99S
 The flow rate of cooling water 0.15 Mpa 22L/Min
 Water temperature protection point 40centidegree
 Duty cycle 100% (40degree room temperature)
 Weight Mainparts:150Kg   Transformer:105kg
 SizeMain Parts:800*600*800MM
Transformer: 650*450*600MM
