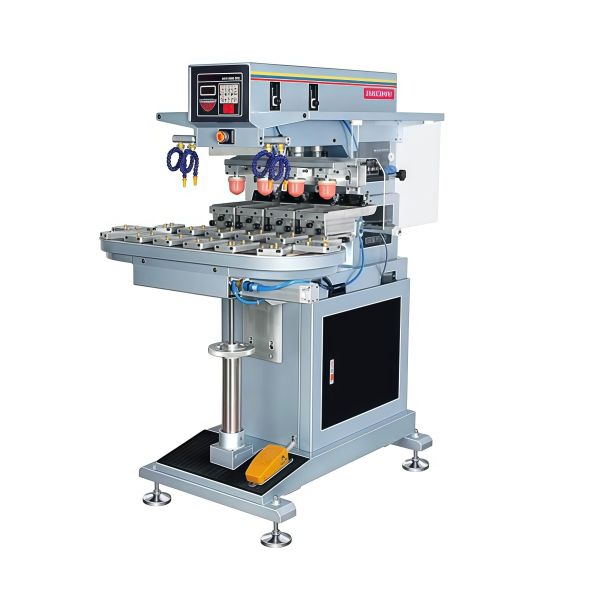

High Efficiency Rotary Belt 4 Color Semi-automatic Pad Printing
Machine
This advanced semi-automatic pad printing machine is specifically
engineered for multi-color printing applications, delivering
exceptional performance for 4-color printing tasks with superior
efficiency and precision.
Key Features
- Specialized design for multi-color printing requirements
- Oil basin type oil supply system for optimal ink management
- Microelectronic keyboard control interface for easy operation
- Independent adjustment of pad vertical stroke and speed
- Worktable adjustable in X, Y, Z axes and angle for versatile
positioning
- Wide application range with high printing efficiency
- Suitable for flat, curved, and irregular surface printing
- Ideal for electronics, electrical appliances, hardware, plastic,
toys, and stationery industries
Construction & Build Quality
Constructed with thickened square tube rack for maximum structural
sturdiness, featuring a smooth baked paint finish. The chassis
utilizes cast aluminum construction with all accessories undergoing
precision CNC machining and oxidation treatment for superior
durability and elegant appearance.
Oil Supply System
The oil basin type oil supply system offers a large printing area
with convenient installation and disassembly capabilities. Prepared
printing ink can be directly poured into the oil basin,
significantly simplifying the operational process and enhancing
workflow efficiency.
Multi-Color Rotary Belt Worktable
Main components crafted from die-cast aluminum alloy for
exceptional durability. Features abrasive-grade slide rails and
innovative positioning design to ensure precise multi-color and
overprinting effects. German-quality precision pneumatic components
provide powerful driving force, while dedicated pushing system and
shock absorption device guarantee stable, reliable operation with
smooth printing, high accuracy, and efficient production output.
Technical Specifications
| Item | Specification |
|---|
| Plate Size (mm) | 100×150 |
| Printing Area (mm) | 60×110 |
| Max Workpiece Height (mm) | 200 |
| Printing Color | 4 Colors |
| Print Speed (pcs/hour) | 1200 |
| Power | 110V/220V 50/60HZ, 40W, 6Bar |
| Dimension (mm) | 1050×910×1450 |
| Weight (kg) | 225 |
Manufacturer Profile
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional
manufacturer of automated printing equipment established in 2016.
Our comprehensive product range includes silk screen printing
machines, transfer printing machines, stamping machines, and
peripheral equipment designed to meet diverse printing requirements
across various shapes and materials.
Our machinery is widely utilized across multiple industries
including cosmetics, daily necessities, food, medical supplies, and
automotive accessories. With global exports to Europe, the United
States, South Korea, the Middle East, South Africa, Mexico, and
other regions, we have earned the trust of domestic and
international customers through consistent quality and performance.
We adhere to five core principles: efficiency, excellence, energy
conservation, integrity, and win-win partnerships. Our dedicated
professional technology research and development team creates
customized machinery solutions tailored to specific customer
requirements, continuously innovating to enhance product
intelligence and efficiency.
Beyond providing exceptional machinery equipment, we offer
comprehensive technical training and ongoing support services,
ensuring our customers achieve their operational goals and maximize
productivity.
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer
training.
How will you help us resolve after-sales repair issues if the
machine malfunctions?
In case of machine malfunction, we will provide video and email
communication, and on-site service is available if necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported
environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
