SMT Line Supporting YSPE Rigid-Flexible PCB Punching Machine for Circuit Board Processing

Categories PCB Depaneling Machine
Place of Origin: Guangdong, China
Brand Name: YUSH
Certification: CE
MOQ: 1 set
Price: $50,000 / set
Weight: 530 kg
Voltage: 110/220V
Power: 40W
Dimension: 730X810X1700 mm
Worktable size: 330 x 220 mm
Depression: 0.45-0.70 Pa
Punch Contribute: 3-30 T
Working air pressure: 0.5-0.7 Mpa
PCB tool size: 730*810*1700 mm
PCB tool weight: 530 kg
Core components: PLC, Gearbox, Motor, Pump
Machine Type: PCB Punching Machine
Model: YSPE
Working area: 330*220 mm
Depression range: 0.45-0.70 Pa
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SMT Line Supporting YSPE Rigid-Flexible PCB Punching Machine for Circuit Board Processing

SMT Line Supporting YSPE Rigid-Flexible PCB Punching Machine
High-performance circuit board processing machine designed for SMT line integration
Key Features
  • Applies to cutting Rigid PCB, Flexible PCB (FPC), and Rigid-Flexible PCB
  • Uses punching mould for high-efficiency cutting operations
  • Capable of replacing multiple molds for production with easy mold changing
  • Simple and safe operation for enhanced workplace safety
YSPE PCB Punching Machine front view
Technical Specifications
ModelYSPE
Punch Contribute (T)3 (can custom made up to 30T)
Working area (mm)330*220 (can custom made)
Voltage (V)110/220
Working air pressure (Mpa)0.5-0.7
PCB punching tool size (mm)730*810*1700
PCB punching tool weight (kg)530
YSPE PCB Punching Machine side view
Advanced Capabilities
  • Strong machine structure with easy mobility via 4 casters
  • Capable of replacing various molds with easy mold changing
  • Lower mold automatic in and out system for easy product handling
  • Finished products automatically fall into drawer for collection
  • Minimizes internal stress generated by PCB cutting to prevent tin stress cracking
  • High-efficiency punching cutting for semi-finished PCB
  • Custom mold and die manufacturing according to customer requirements

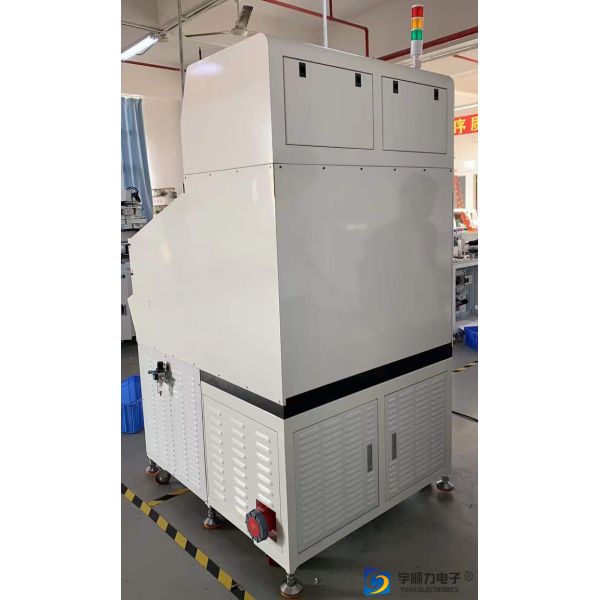

YSPE PCB Punching Machine operational view
