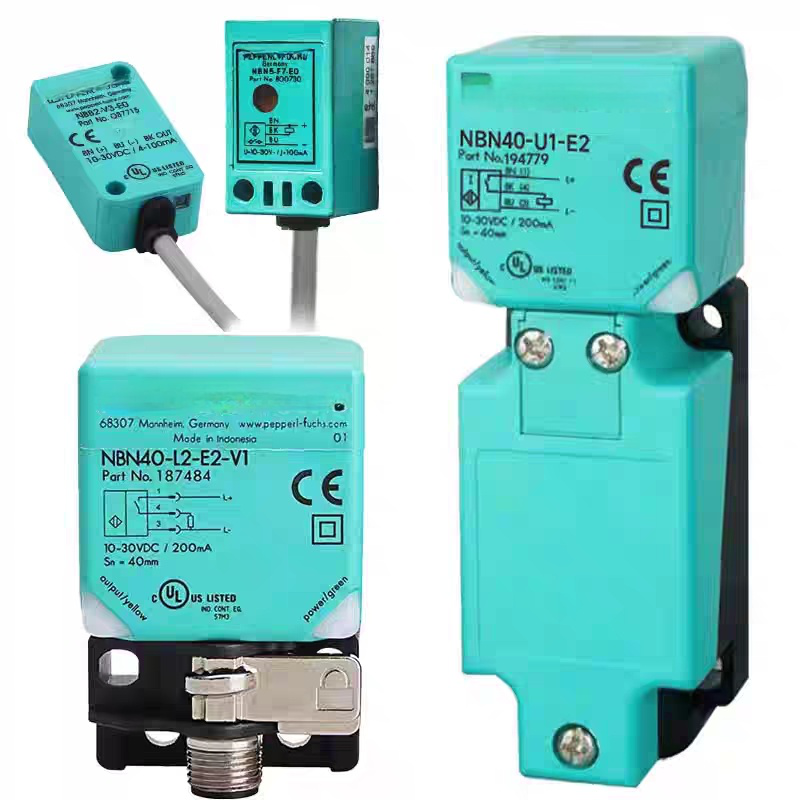

IP67 Pepperl And Fuchs Proximity Sensor Long Range Anti Interference

Proximity Sensors IP67, Long Range, Anti-Interference Stable Industrial Detection

Pepperl+Fuchs Proximity Sensors IP67, Long Range, Anti-Interference Stable Industrial Detection

Proximity Sensors with IP67 protection deliver long sensing range and superior anti-interference performance. Designed for stable industrial detection, these sensors ensure reliable non-contact positioning, strong resistance to harsh environments, and consistent operation in diverse automated applications, effectively reducing failures and improving production stability.

Product Highlights

IP67 rugged protection, waterproof, dustproof, oil-resistant for harsh industrial environments
Extended long sensing range, stable detection with no blind zone, high positioning accuracy
Superior anti-interference against electromagnetic interference, vibration and temperature fluctuation
Non-contact wear-free design, long service life, low false triggers, stable 24/7 industrial operation
Wide voltage compatibility, easy installation, suitable for automation, assembly, logistics and machining

Product Specifications & Industry Applications

Inductive Proximity Sensors

Model	Sensing Range	Body Size	Mounting Type	Output Type	Operating Voltage	Connection	Operating Temp	Key Features	Target Industries
NBB2-8GM30-E2	2mm (flush)	M8	Flush	3-wire DC, PNP NO	10-30V DC	2m PVC cable	-25°C to +70°C	Anti-EMI, vibration-resistant	Automotive assembly, small parts machining
NBB2-8GM30-E3	2mm (flush)	M8	Flush	3-wire DC, PNP NC	10-30V DC	2m PVC cable	-25°C to +70°C	IP67, compact design	Electronic component assembly
NBN4-12GM50-E0	4mm (non-flush)	M12	Non-flush	3-wire DC, NPN NO	10-30V DC	M12 4-pin	-25°C to +70°C	Long-range, anti-interference	Logistics sorting, packaging lines
NBN4-12GM50-E2	4mm (non-flush)	M12	Non-flush	3-wire DC, PNP NO	10-30V DC	M12 4-pin	-25°C to +70°C	Wide voltage, stable output	Material handling, conveyor systems
NBB8-18GM50-E3	8mm (non-flush)	M18	Non-flush	3-wire DC, PNP NC	10-30V DC	M12 4-pin	-25°C to +70°C	High vibration tolerance	Heavy machinery, stamping lines
NBB15-30GM50-E0	15mm (non-flush)	M30	Non-flush	3-wire DC, NPN NO	10-30V DC	Pre-wired 2m	-25°C to +70°C	Extended range, temp-stable	Logistics warehousing, pallet detection
NBB15-30GM50-E2	15mm (non-flush)	M30	Non-flush	3-wire DC, PNP NO	10-30V DC	M12 4-pin	-25°C to +70°C	Anti-EMI, wear-free	Automotive stamping, casting lines
NBB15-30GM50-E2-V1	15mm (non-flush)	M30	Non-flush	3-wire DC, PNP NO	10-30V DC	M12 4-pin	-25°C to +70°C	Long-range, durable	Mining equipment, bulk material handling
NBB20-L2-E2-V1	20mm (long-range)	Block	Non-flush	3-wire DC, PNP NO	10-30V DC	M12 4-pin	-25°C to +70°C	24/7 continuous operation	Logistics conveyors, large part detection
NBN40-L2-E0-V1	40mm (long-range)	M30	Non-flush	3-wire DC, NPN NO	10-30V DC	M12 4-pin	-25°C to +70°C	Ultra-long range, IP67	Heavy-duty material handling
NBN40-L2-E2-V1	40mm (long-range)	M30	Non-flush	3-wire DC, PNP NO	10-30V DC	M12 4-pin	-25°C to +70°C	Anti-EMI, wide voltage	Steel production, forging lines
NBB0.8-F141-E2	0.8mm (flush)	Rectangular	Flush	3-wire DC, PNP NO	10-30V DC	2m PUR cable	-25°C to +70°C	Compact, high precision	Semiconductor assembly, precision machining
NBB1.5-8GM40-Z0	1.5mm (flush)	M8	Flush	2-wire DC, NO	10-30V DC	2m PVC cable	-25°C to +70°C	Stainless steel housing	Food processing, clean room automation

Capacitive Proximity Sensors (Non-Metal Detection, IP67)

Model	Sensing Range	Body Size	Output Type	Operating Voltage	Connection	Operating Temp	Key Features	Target Industries
CBN5-F46-E2	5mm	M12	3-wire DC, PNP NO	10-30V DC	M8 3-pin	-25°C to +70°C	Adjustable sensitivity, non-metal detection	Food & beverage (liquid/grain)
CBN8-18GS75-E2	8mm	M18	3-wire DC, PNP NO	10-30V DC	M12 4-pin	-25°C to +70°C	Detects plastic/liquid, anti-humidity	Packaging, pharmaceutical filling
CBN15-F64-A2	15mm	M18	3-wire DC, PNP NO	10-30V DC	1m cable	-25°C to +70°C	Dust/oil-resistant, stable detection	Cosmetics production, material level detection
CBB8-18GS75-E2	8mm	M18	3-wire DC, PNP NC	10-30V DC	M12 4-pin	-25°C to +70°C	Anti-humidity, high reliability	Printing, paper processing
CBN30-F129-E2	30mm	M30	3-wire DC, PNP NO	10-30V DC	M12 4-pin	-25°C to +70°C	Long-range non-metal detection	Bulk material handling, grain storage

Explosion-Proof Proximity Sensors (Hazardous Areas, ATEX/IECEx)

Model	Sensing Range	Body Size	Output Type	Operating Voltage	Connection	Operating Temp	Certification	Target Industries
NJ4-12GM-N-V1	4mm (non-flush)	M12	2-wire DC, NAMUR	10-30V DC	M12 4-pin	-25°C to +70°C	ATEX/IECEx, SIL 2	Oil & gas, chemical processing
NJ4-12GK-SN-15	4mm (non-flush)	M12	2-wire DC, NAMUR	10-30V DC	Screw terminal	-25°C to +70°C	ATEX/IECEx, explosion-proof	Refinery, hazardous area automation
NJ8-18GM50-E2	8mm (non-flush)	M18	3-wire DC, PNP NO	10-30V DC	M12 4-pin	-25°C to +70°C	ATEX/IECEx, SIL 2	Petrochemical, chemical plant automation
NJ40-FP-SN-P1	40mm (non-flush)	M30	2-wire DC, NAMUR	10-30V DC	Screw terminal	-25°C to +70°C	ATEX/IECEx, explosion-proof	Oil drilling, hazardous material handling

Special Series (High-Temp, Anti-Weld Spatter, IO-Link)

Model	Sensing Range	Body Size	Output Type	Operating Voltage	Connection	Operating Temp	Key Features	Target Industries
NBB20-U1-UU	20mm (non-flush)	Block	4-wire DC, PNP NO/NC	10-30V DC	Screw terminal	-25°C to +70°C	Universal voltage, IO-Link compatible	General industrial automation
NCB40-FP-A2-T	40mm (non-flush)	M30	3-wire DC, PNP NO	10-30V DC	M12 4-pin	-25°C to +70°C	High-precision, anti-interference	Aerospace component manufacturing
NBB8-18GM50-WS-E2	8mm (non-flush)	M18	3-wire DC, PNP NO	10-30V DC	2m PUR cable	-25°C to +120°C	High-temperature resistant, anti-weld spatter	Welding automation, steel mills
NBB15-30GM50-WS-E3	15mm (non-flush)	M30	3-wire DC, PNP NC	10-30V DC	M12 4-pin	-25°C to +120°C	High-temp, anti-weld spatter, IP67	Automotive welding, forging
NBB2-8GM30-IO-E2	2mm (flush)	M8	3-wire DC, PNP NO	10-30V DC	M12 4-pin	-25°C to +70°C	IO-Link, remote diagnosis	Smart manufacturing, intelligent production lines

General Specifications

All models are IP67 rated, suitable for harsh industrial environments (waterproof, dustproof, oil-resistant)
Operating voltage: Most models support 10-30V DC wide voltage; special models can be customized according to requirements
Output options: NPN/PNP, NO/NC, 2-wire/3-wire/4-wire, NAMUR, IO-Link, to meet different automation needs
Material: Standard models use PBT housing; stainless steel housing is optional for special scenarios (food, medical, etc.)
Warranty: 1-year official manufacturer warranty for all models

Frequently Asked Questions

Are these original Pepperl+Fuchs sensors?

Yes, all are genuine Pepperl+Fuchs units with full quality and brand warranty.

What's the protection rating?

IP67 rated, waterproof and dustproof for harsh industrial environments.

How far is the sensing range?

Multiple ranges available, with long‑range options for non‑flush installation.

Do they false trigger under electromagnetic interference?

No. They have strong anti-interference performance and stable output.

What output types do you offer?

Both NPN and PNP outputs, NO/NC versions are available.

Can these work outdoors or in wet, dirty areas?

Yes, IP67 protection makes them ideal for wet, dusty and oily industrial sites.

What's the operating voltage?

Most models run on 10-30V DC, wide voltage for stable industrial use.

What's the operating temperature range?

Standard range: -25°C to +70°C. High-temp models are also available.

Are they flush or non-flush mount?

Both flush and non-flush versions are offered to fit different setups.

How long do these sensors last?

Contactless sensing means no mechanical wear, ensuring long service life.

Do you have M12 connector or pre-wired cables?

Both M12 connector and pre-wired versions are in stock.

Can these detect all metals?

Inductive models detect all standard metals with stable, consistent detection.

What's the warranty and lead time?

1-year manufacturer warranty. Most models are in stock for fast shipping.

Are they suitable for automation lines?

Yes, designed for stable detection in assembly, machining, logistics and automation systems.
