| Brand Name: | Dongjun |
| Model Number: | DJ-E702-225-7 |
| Certification: | ISO9001，CE， |
| Place of Origin: | Dongguan, China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs |
| Delivery Time: | 15-25Work days |
| Packaging Details: | Wooden crate packaging |
| Internal Dimension (W*D*H): | 500*600*750mm |
| External Dimension (W*D*H): | 700*1280*1630mm |
| Temperature Fluctuation: | ±0.5℃ |
| Temperature Uniformity: | 2℃ |
| Humidity Range: | 20~98%RH (Refer Image Below) |
| Humidity Fluctuation: | ±2.5%RH |
| Highlight: | 225L Environmental Lab Equipment, LCD Environmental Lab Equipment, SS Environmental Chamber Temperature Humidity Control |
| Company Info. |
| Dongguan Dongjun Testing Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

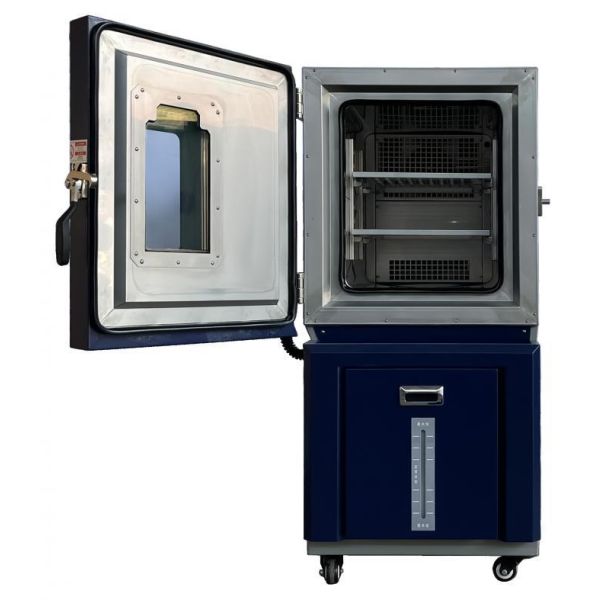

The new generation constant temperature and humidity chamber incorporates the company's mature experience in chamber design accumulated over years. Adhering to the humanized design concept and starting from customers' actual needs, it strives to meet customers' usage requirements in every detail and provides customers with high-quality constant temperature and humidity series products.
The following operations are prohibited for this test equipment:
| Model | DJ-E702-225-7 |
| Internal Dimensions (W × D× H) | 500*600*750mm |
| External dimension (W*D*H) | 700*1280*1630mm |
| Temperature range | -70~+150℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | 2℃ |
| Humidity range | 20~98%RH (Refer Image below) |
| Humidity fluctuation | ±2.5%RH |
| Humidity uniformity | 3%RH |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | Stainless steel ,mirror finished |
| External chamber material | Stainless steel |
| Cooling method | Air cooling |
| Controller | LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor x 2sets |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device | Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
Our company is located in Dongguan, China, and was established in 2021. Our products are sold to the global market.
Our mission is to provide one-stop sourcing and a pleasant shopping experience. We care about your lab and, more importantly, your shopping experience. You can contact us anytime; we are available 24/7.
|
