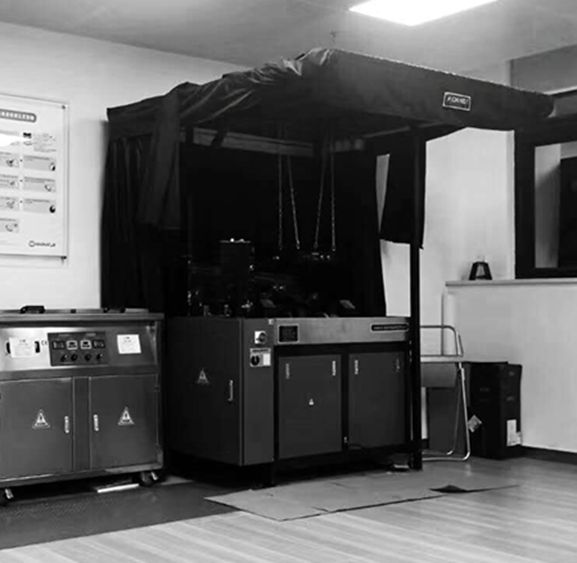

HPT Series Automatic Fluorescent Penetrant Inspection Line FPI Machine for Small & Medium Components
The HPT series penetration testing workstation is a split fluorescent penetration testing line suitable for lightweight testing of small to medium-sized components, including aerospace fasteners, automotive components, and surgical implants.
The HPT series penetration testing workstation provides the following three different testing processes:
A Water Wash Penetrant Testing Equipment -5-Station
B oil-based post emulsification type penetration testing equipment -8-station type
C water-based post emulsification type penetration testing equipment -9-station type
Product Features
304 stainless steel groove
Durable and sturdy steel structure
Drying control for digital calibration
Black light
Split detection station
Detection of visible light in the dark screen
Detection of ventilation equipment in dark curtains
Main specifications
| Power requirements | 380V, 50Hz, single-phase |
| Slot size | 40 x 80 x 40 cm |
| Tank capacity | 102 liters |
| Drying | digital temperature control |
| Black light | handheld LED black light |
A water wash type
workstation
1. Penetration
2. Drip
3. Cleaning
4. Drying
5. Imaging
6. Observation
B oily post emulsification
workstation
1. Penetration
2. Drip # 1
3. Emulsification
4. Cleaning
5. Drip # 2
6. Drying
7. Imaging
8. Observation
C water-based post emulsification
workstation
1. Penetration
2. Drip # 1
3. Front cleaning
4. Drip # 2
5. Emulsification
6. Post cleaning
7. Drying
8. Imaging
9. Observation
Please provide the penetration inspection process, the size of the 304 stainless steel groove, the number of 304 stainless steel grooves, and the functions of each groove. We will provide a detailed solution
In addition, it is necessary to know the specifications and dimensions of the cleaned parts, as well as the number of daily inspections
|
