| Categories | Ultrasonic Coating Thickness Gauge |
|---|---|
| MOQ: | 50 |
| Price: | EXW US$77 |
| Brand Name: | Bestone |
| Model Number: | 86237 |
| Certification: | CE |
| Place of Origin: | CHINA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | more than 500pcs per month |
| Delivery Time: | 3-5 working days |
| Packaging Details: | box and cloth bag |
| Model NO.: | 86237 |
| Measuring Range: | 0.0~5000μm |
| Resolution: | 0.1μm/1μm/10μm |
| Accuracy: | 0-3000μm: ≤±(3%H+2μm), H Is The S |
| Unit: | μm/Mil |
| Measurement Principle: | Fe: Hall Effect / Al: Eddy Current |
| Transport Package: | Box and Carrying Case |
| Specification: | CE, ROHS |
| Trademark: | BESTONE, Linshang |
| Origin: | China |
| HS Code: | 9031809090 |
| Production Capacity: | 50000pieces/Year |
| Company Info. |
| Shenzhen Bestone Industrial Co.Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
86237 car paint meter is specialized in automotive paint thickness inspection. The instrument can measure paint thickness above ferrous and aluminum materials, identify non-metallic surfaces, and intelligently detect ferrous putty and iron galvanized coatings.

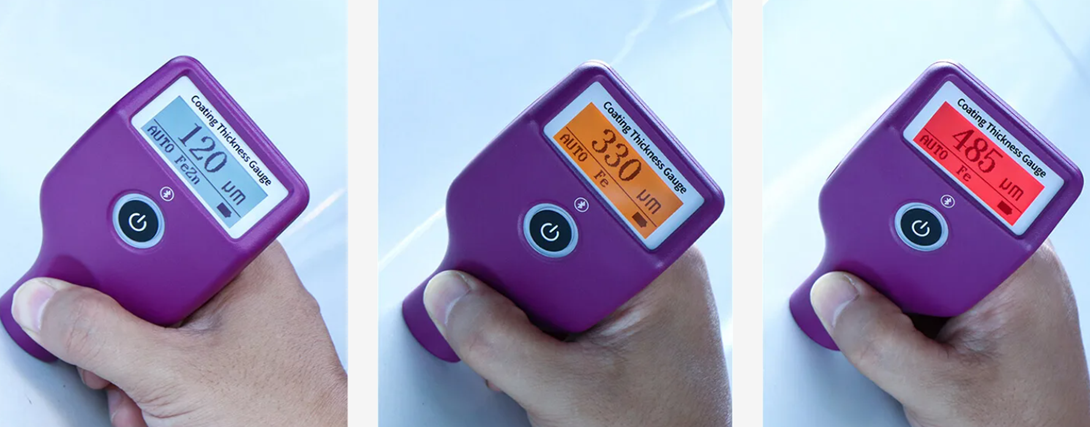

86237 features three-color backlight and indicator display, with screen and buttons displaying different colors based on paint thickness measurements. Powered by rechargeable lithium batteries with ultra-low power consumption, it includes Bluetooth functionality with companion app support for inspection report export and sharing.
| Model | 86237 |
|---|---|
| Probe Type | Integrated |
| Screen | LCD |
| Working Temperature | -20°C ~ 50°C |
| Display | Three-color backlight |
| Bluetooth | Supported |
| Power Supply | Rechargeable lithium battery 3.7V@1200mAh |
| Probe | Ruby |
| Measuring Principle | Fe: Hall Effect / Al: Eddy Current |
| Measuring Range | 0.0-5000μm |
| Resolution | 0.1μm/1μm/10μm |
| Unit | μm / mil |
| Accuracy | 0-3000μm: ≤±(3%H+2μm), 3000-5000μm: ≤±(5%H+2μm) |
| Measuring Interval | 0.5s |
|
