| Categories | Guyed Wire Tower |
|---|---|
| Price: | USD 850-1080/Ton |
| Material: | Steel |
| Maintenance: | Low cost |
| Lightning Protection: | Included |
| Antenna Load: | As per customer`s requirement |
| Supply Ability: | 95,000 ton per year |
| Height: | 0-300m |
| Lifetime: | Minimum 20 years |
| Platforms: | 1-5 |
| Climbing Ladder: | External or internal |
| Foundation Type: | Concrete base or anchor bolts |
| Painting Color: | As per customer's requirement |
| Structrue type: | 3 or 4 legs lattice |
| Wind Resistance: | Up to 340 km/h |
| Certification: | SGS, CE, ISO |
| Brand Name: | HL |
| Surface treatment: | HDG |
| Delivery Time: | 28 days |
| Payment Terms: | L/C, T/T |
| Foundation: | H profile or Channel steel |
| Model Number: | HL-025 |
| Packaging Details: | Seaworthy packing or as per client request |
| Warranty: | 25 years |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Installation: | Easy and fast |
| Character: | Guy wire as anchoring |
| Company Info. |
| Qingdao highlight steel tower co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

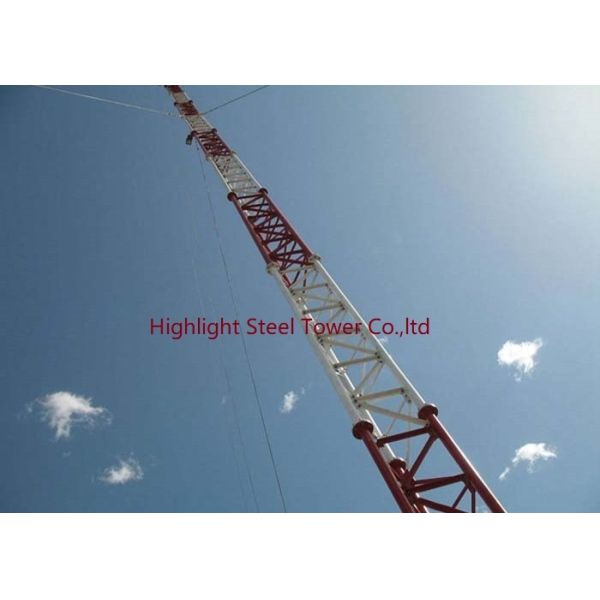

Guyed wire angular tower with anchor plate
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G,H or European Standard and others |
| 2 | Design Loading | 1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 | Structure Classification | II, III |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade | 1. High strength low alloy structural steel: Q355 or equivalent
with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa etc soil bearing capacity |
| 9 | Tower Type | 1. 3 or 4 Leg Self supported Angular Towers 9. Street lightning pole 10. Electric transmission line towers 11. Subustation gantry 12. All kinds of other steel structures |
| 10 | Warranty | 1. Tower structures: 15 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive
Paint 2. Aviation Light: Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 6. Fall arrest system: GB and CE certificate fall arrest system. 7. Canopy and Generator Cage: as per specified by clients |
|
