Name: Welded 30x100Mesh Galvanised Floor Grating Customizable Size
Brand: QIJIE
Price: 1 USD

Welded 30x100Mesh Galvanised Floor Grating Customizable Size

Categories	Galvanized Steel Grating
Brand Name:	QIJIE
Model Number:	grip strut grating
Certification:	iso
Place of Origin:	hebei,China
MOQ:	100pcs
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pcs per month
Delivery Time:	15-18days
Packaging Details:	Pallets
Material:	Aluminum,Galvanized Steel Wire
products name:	grip strut grating

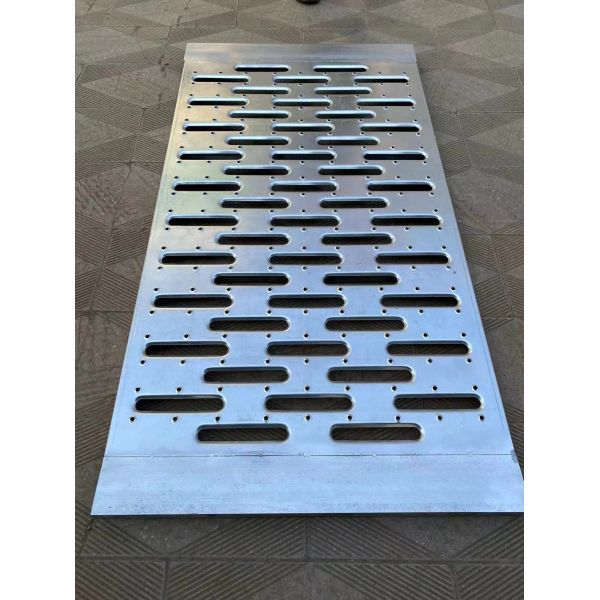

Type:	Perforated Mesh,Etching or stamping
Technique:	Perforated
Weave style:	perforated,Punched,Punching
Hole shape:	Round,diamond,etc,plum blossom,octagonal
Surface treatment:	Spray coating/Spray painting/Fluorocarbon coating,Hot Dipped Galvanized,galvanized and fluoroca
Color:	All the color chip have,White,blue,Silver,golden
Product name:	hexagonal perforated metal sheet,expandable sdiamond mesh
Thickness:	0.5-8mm,0.3MM- 8MM
Feature:	Corrosion Resistance,Good-looking and good quality,Durable,Acid resistance,anti-resistance
Width:	1m or 1.22m,1.22 m or below
Usage:	etc.,decorative,oil/air filter,food
Length:	2m or 2.44m
Size:	Customized Size,standard
Shape:	square,Can be cut into round or square shape,Round Shape,oval,Hexagon
Pitch:	1.0mm-100MM,or as request.

Contact Now

Add to Cart

Company Info.

Hebei Qijie Wire Mesh MFG Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Welded 30x100Mesh Galvanised Floor Grating Customizable Size

Product Description

Specification

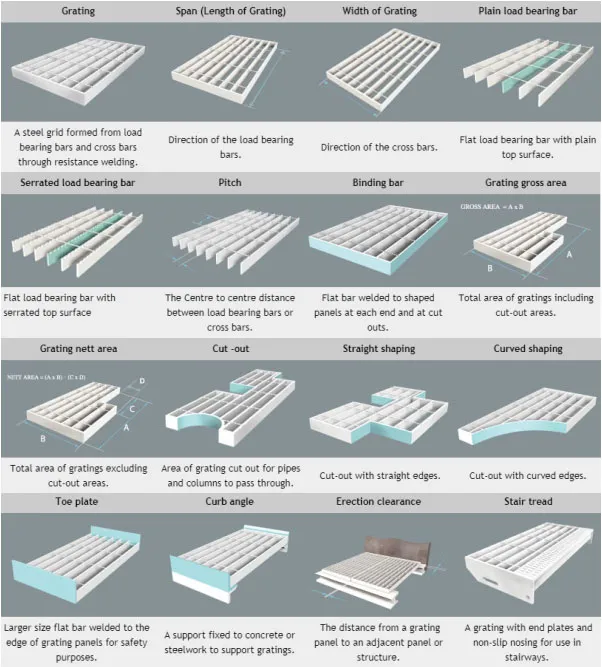

Products name	Hot dip galvanised HDG Heavy Duty Steel Bar Grating

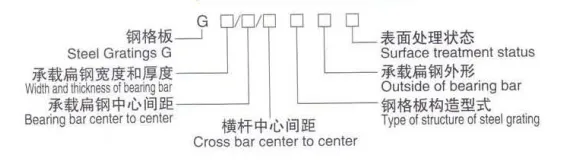

Type of steel grating	W-pressure welded grating; L- pressure locked grating; C- socket welding grating
Surface treatment	G- hot dip galvanizing (G is usually omitted); P-painting; U-untreated
Pitch of bearing bars	15-30mm, 40mm, 60mm, 80mm, 90mm etc. with 30, 40mm recommended.
Pitch of cross bars	30, 38, 50, 76, 100mm etc. with 50, 100mm recommended.
shape of bearing bar	F-plain surface (F is usually can be omitted); S-serrated surface; I-the section is of "I" type.
Packing	1) LCL(less than one container load): packed with plastic film then on the pallet 2) FCL(full container load): nude packing 3) Other special package :according to customers' requirements.
MOQ	Min trial order 25 ton each thickness, 1x20' per delivery.
Payment	30% despoit in advance,70% after recepit of B/L copy.100% L/C is available.
Remarks: Other sizes also can be customized according to customers’ requirement.

Title goes here.

steel grating is manufactured using an electro-forgewelding process
that applies pressure and heat to fuse square, twisted cross
bars into load-bearing bars of various thicknesses and depths.

The result is a product of one-piece construction that complies
with AS1657-2013.
The press welded galvanized steel grating/grille/grate is made of
load flat steel bar and cross bar, placed horizontally and
vertically, and at an equal pitch apart, by welding with 200-ton
hydraulic resistance automatic welding equipment, then cutting,
punching and banding ends.

Features of Hot dip galvanised HDG Heavy Duty Steel Bar Grating:

1) High strength and light structure
2) Powerful anti-corrosion, durable and long working life
3) Beautiful appearance, bright surface
4) No dirt-rain-snow deposit, automatic cleaning, easy maintenance.
5) Good ventilation, day-lighting, heat-dispersing, resistant to
sliding and explosion
6) Easy installation

Type of steel grating	W-pressure welded grating; L- pressure locked grating; C- socket welding grating
Pitch of bearing bars	15-30mm, 40mm, 60mm, 80mm, 90mm etc. with 30, 40mm recommended.
Pitch of cross bars	30, 38, 50, 76, 100mm etc. with 50, 100mm recommended.
Sign of the shape of bearing bar	F-plain surface (F is usually can be omitted); S-serrated surface; I-the section is of "I" type.
Surface treatment	G- hot dip galvanizing (G is usually omitted); P-painting; U-untreated.

Product Tags:

30x100Mesh Galvanised Floor Grating

Galvanised Floor Grating Customizable

galvanized metal grating Customizable

Welded 30x100Mesh Galvanised Floor Grating Customizable Size
