IP5X & 6X Programmable Vacuum Sand and Dust test Chamber Environmental Test Chamber Dust-proof Testing for Electronics

Categories Environmental Test Chamber
Brand Name: Haida
Place of Origin: Guangdong, China
Model Number: HD-E706
MOQ: 1
Price: €4,182.07-5,142.87
Internal dimension: 600*600*600mm
External dimension: 1100*900*1650mm
Test sample size: 300*300*50mm
Chamber material: SUS#304 Stainless steel
Mesh hole size: 75um
Mesh wire diameter: 50um
Talcum powder amount: 2kg/m³
Airflow speed: No more than 2m/s
Vacuum pump capacity: 60-600 L/H
Door type: Left open door with tempered glass
Power supply: AC380V, 50/60Hz, three phase
Fan type: Centrifugal fan
Controller type: PLC Touch Screen
Cycle time: Adjustable
Test time: 0s ~99m99s
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IP5X & 6X Programmable Vacuum Sand and Dust test Chamber Environmental Test Chamber Dust-proof Testing for Electronics

IP5X & 6X Programmable Vacuum Sand and Dust Test Chamber
Professional environmental test chamber designed for dust-proof testing of electronics, ensuring compliance with IP5X and IP6X protection standards.
Product Overview
This programmable vacuum sand and dust test chamber provides reliable environmental testing for electronic components and devices, verifying their resistance to dust ingress under controlled conditions.

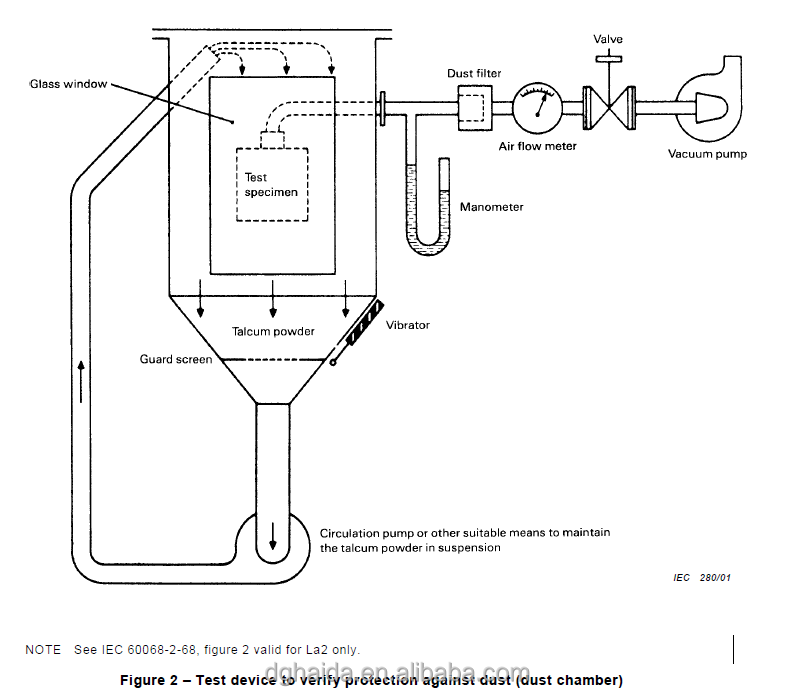

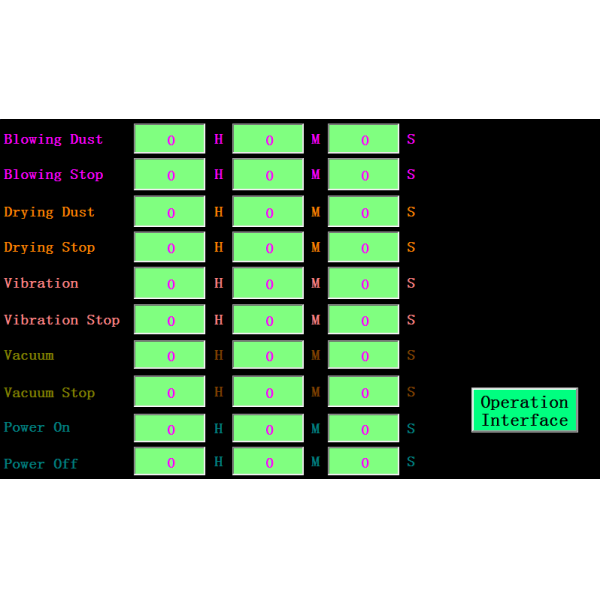

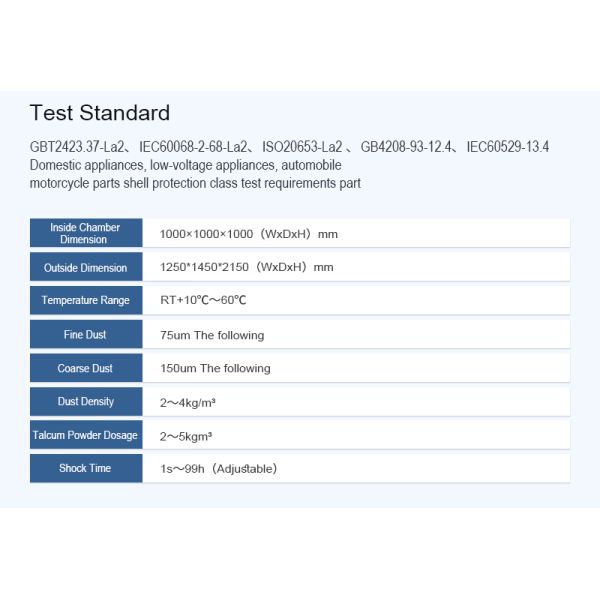

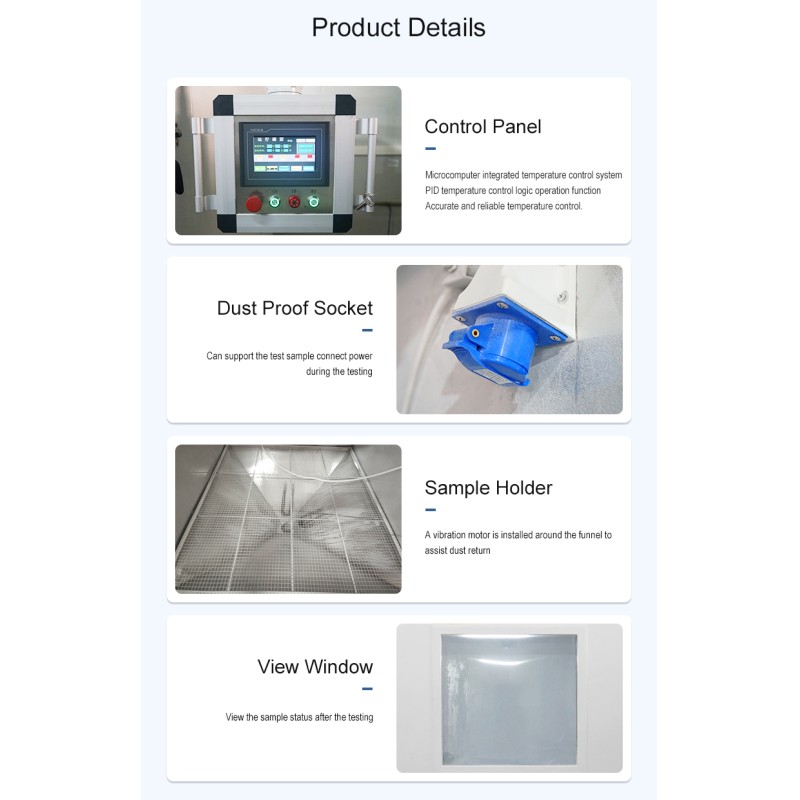

Haida IP5X IP6X Dust Test Chamber Front View Dust Test Chamber Internal Chamber View Test Chamber Control Panel Close-up Dust Test Chamber Side View Dust Test Chamber Technical Diagram Test Chamber Operation Interface Dust Test Chamber Complete Setup
Technical Specifications
ItemValue
Warranty1 year
Customized SupportOEM, ODM
Place of OriginGuangdong, China
Brand NameHaida
Model NumberHD-E706
PowerElectronic
Internal Dimension (W×D×H)600×600×600mm
External Dimension (W×D×H)1100×900×1650mm
Test Sample (W×D×H)300×300×50mm
Chamber MaterialSUS#304 Stainless Steel
Square Mesh Sieve SpecificationsMesh hole 75μm, mesh metal wire diameter 50μm
Talcum Powder Amount2kg/m³
Airflow SpeedNo more than 2m/s
Controller Features
  • PLC Touch Screen controller with programmable settings
  • Adjustable blowing dust time (Stop/Blow) cycles
  • Configurable cycle time settings
  • Pre-set test time range: 0s to 99 minutes 99 seconds
Additional Specifications
  • Vacuum pump capacity: 60-600 L/H
  • Left-opening door with tempered glass viewing window
  • Power supply: AC 380V, 50/60Hz, three phase
  • Centrifugal fan system
  • Safety protection devices including meter over-temperature function, phase shortage protection, and power short-circuit protection
Manufacturer Profile
Haida specializes in manufacturing high-quality environmental test chambers and testing equipment for industrial applications.
Haida Manufacturing Facility Overview Haida Quality Control Process
