100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine

100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine

100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
Categories Tensile Testing Machine
Brand Name: Haida
Place of Origin: Guangdong, China
Model Number: HD-B612-S
Certification: CE,ISO
MOQ: 1
Price: €4,367.24-6,375.30
Frame capacity: 10T
Load accuracy: 0.5% F.S
Control system: PC with wind-ows 7 system
Force reading: kgf, Ibf, N, KN, T etc
Vertical test space: 1100mm including fixture
Horizontal test space: ≤400mm
Test speed: 0.1~300mm/min
Software: TM 2101
Displacement resolution: 0.001mm
Max. Stroke: 1100mm (excluding fixture)
Elongation Accuracy: 0.001mm
Power: 1 ø, AC220V, 50HZ
Weight: Approx.600kg
Motor: Panas-onic Servo Motor
Screw: High Precise Ball Screw
Contact Now
Company Info.
Haida Equipment Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine

100kN Computer Electronic Laboratory Universal Testing Machine
A precision mechanical testing instrument designed for comprehensive material strength analysis including tension, compression, bending, shear, tearing, and peeling tests.

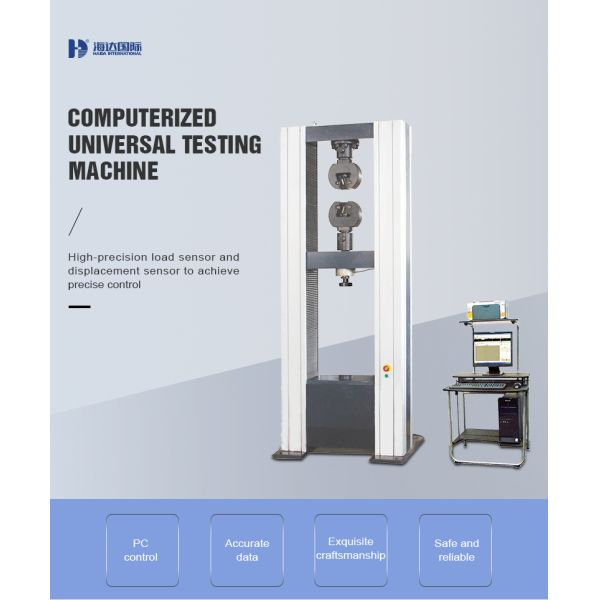

100kN Universal Testing Machine - Laboratory Testing Equipment
Product Overview
This universal materials testing machine is engineered for static load testing and comprehensive mechanical property analysis. It is ideal for testing plastic sheets, pipes, profiles, plastic films, rubber, wires and cables, steel, glass fibers, and various other materials. Essential for material development, physical testing, teaching research, and quality control applications.
Key Features
  • Motor System: Panasonic servo motor with servo driver and high-precision ball screw (Taiwan)
  • Control System: Computer-controlled with TM2101 software, automatic return to origin after testing
  • Data Transmission: RS232 interface
  • Displacement Resolution: 0.001mm precision
  • Automatic graph scaling with dynamic switching between force-elongation, force-time, elongation-time, and stress-strain displays
  • Comprehensive data recording including maximum force, yield strength, compressive strength, tensile strength, elongation, and peel interval analysis
  • Customizable material parameters including length, width, thickness, radius, and area
  • Multi-language support: Simplified Chinese and Traditional Chinese
Technical Specifications
SensorCeltron load cell
Unit SwitchoverG, KG, N, LB
Display DevicePC
Resolution1/250,000
Accuracy±0.5%
Max. Stroke1100mm (excluding fixture)
Test Speed0.01-500mm/min (adjustable)
MotorPanasonic Servo Motor
ScrewHigh Precise Ball Screw
Elongation Accuracy0.001mm
Power1 ø, AC220V, 50HZ
WeightApprox. 600kg
AccessoriesOne set tensile clamp, one set Lenovo computer, English software CD, operation video CD, English user manual
Technical Specifications Display - Universal Testing Machine
Applications
  • Tested Samples: Laminated materials, wood, leather, rubber & plastic, metal materials
  • Various Test Types: Tensile, peel, tear, heat seal, adhesive, bend, and open force testing with specialized grips
  • Deformation Analysis: Measure deformation under defined load conditions
  • Load Measurement: Test load under defined deformation parameters
  • Reporting: Software generates Word/Excel reports with comprehensive results including maximum force, elongation, tensile strength, peel strength, tear strength, and compression strength
Material Testing Applications - Universal Testing Machine
Customized Fixtures
Haida provides comprehensive fixture customization services to meet all customer testing requirements and specific material testing needs.
Custom Testing Fixtures - Universal Testing Machine Accessories
Tensile Testing Capabilities
Tensile Test Machine in Operation Tensile Testing Equipment Close-up Material Tensile Testing Process Tensile Test Machine Laboratory Setup
Company Information
HAIDA INTERNATIONAL is a professional manufacturer of testing equipment with over 20 years of industry experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products, and various other industries. Suitable for all scientific research units, quality inspection institutions, and academic applications.
HAIDA INTERNATIONAL Manufacturing Facility
Packaging & Shipping
Testing machines are carefully protected with air bubble film and securely packaged in wooden cases. Multiple transportation options available including sea, air, and land freight to accommodate global shipping requirements.
Testing Machine Packaging and Shipping Process
