| Categories | GE Turbine Control |
|---|---|
| Brand Name: | GE |
| Model Number: | DS200NATOG1A |
| Place of Origin: | US |
| MOQ: | 1pc |
| Price: | $7000 |
| Payment Terms: | T/T |
| Supply Ability: | 999pcs |
| Delivery Time: | 5-7days |
| Packaging Details: | individual box packing |
| Name: | GE DS200NATOG2A Mark V Voltage Feedback Scaling Board |
| Product ID: | DS200NATOG2A |
| Series: | Mark V |
| Function: | Voltage Feedback Scaling Board |
| Product Net Depth/Length: | 330mm |
| Product Net Height: | 200mm |
| Product Net Width: | 100mm |
| Product Net Weight: | 2kg |
| Warranty: | 1year |
| Company Info. |
| Sumset International Trading Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Attribute | Value |
|---|---|
| Name | GE DS200NATOG2A Mark V Voltage Feedback Scaling Board |
| Product ID | DS200NATOG2A |
| Series | Mark V |
| Function | Voltage Feedback Scaling Board |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 year |

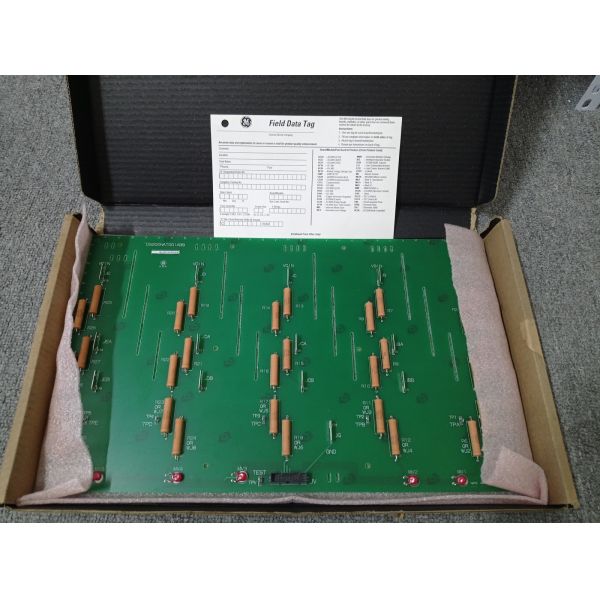

The DS20NATOG1 (NATO board) is a specialized voltage feedback scaling board engineered to precisely attenuate both AC and DC voltages from an SCR bridge, enabling accurate bridge voltage feedback for industrial control systems. Designed for seamless integration, it operates in tandem with a VME backplane and a gate distribution and status board to deliver reliable performance in high-voltage industrial environments.

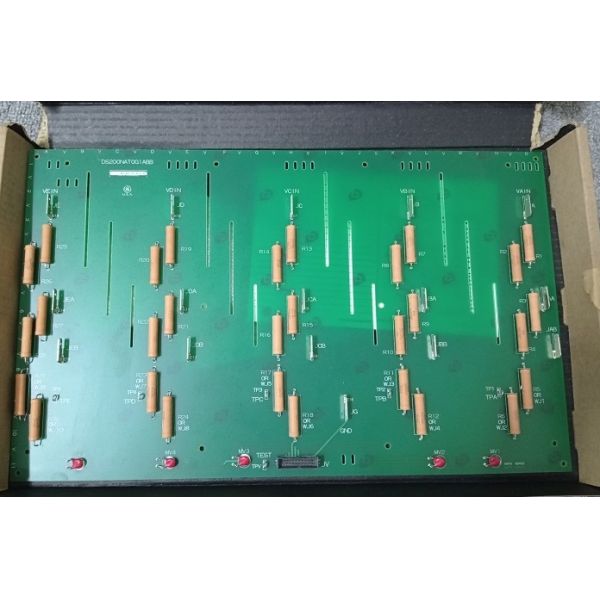

The NATO board features five identical series-connected precision
resistor strings, purpose-built to handle high-voltage inputs:
1,Three strings dedicated to the three AC phases of the SCR bridge
2,Two additional strings for positive and negative DC bus voltage
monitoring
Each resistor string is highly configurable via three distinct
input stab connectors and two wire jumpers, supporting attenuation
for input voltages ranging from 1200V to 6900V (including 2200V,
3300V, and 4200V options).
|
