Product Overview

G.657.A2 bending insensitive single-mode optical fiber is specially designed for modern high-speed optical communication networks. It offers excellent bend resistance, low attenuation, and strong compatibility with existing fiber systems. Compared with conventional single-mode fibers, G.657.A2 fiber maintains stable transmission performance even under small bending radius conditions, making it ideal for FTTH, indoor cabling, access networks, data centers, and high-density optical cable structures.

Fully compatible with G.652.D fiber systems, this fiber can be easily deployed in existing network infrastructures, helping network operators, cable manufacturers, and solution providers improve installation efficiency, reduce bending loss, and enhance overall network reliability.

Features

Excellent Bend Performance

G.657.A2 fiber is engineered to deliver very low additional loss under tight bending conditions. It is highly suitable for complex routing environments, limited installation spaces, and compact cable designs.

Compatible with G.652.D Fiber

This fiber is fully compatible with G.652.D single-mode optical fiber, allowing seamless integration into existing transmission networks without major system modifications.

Low Attenuation and Stable Transmission

With low attenuation at both 1310 nm and 1550 nm wavelengths, G.657.A2 fiber ensures reliable long-distance and high-speed signal transmission.

Ideal for FTTH and Indoor Applications

Optimized for fiber-to-the-home and indoor installation environments, this fiber performs exceptionally well in wall corners, cable ducts, distribution boxes, and terminal access points.

High Mechanical Reliability

The fiber offers excellent tensile strength, durability, and environmental stability, meeting the requirements of manufacturing, installation, and long-term field operation.

Advantages

• Outstanding bend resistance for tight installation environments
• Fully compatible with G.652.D networks
• Low bending loss and low transmission attenuation
• Suitable for high-density and compact optical cable designs
• Improves installation flexibility and reduces deployment difficulty
• Ideal for FTTH, access networks, and data center cabling

Applications

G.657.A2 bending insensitive single-mode optical fiber is widely used in:

• FTTH networks
• Indoor optical cables
• Access networks and metropolitan area networks
• Data center cabling systems
• Fiber patch cords and pigtails
• High-density optical cable structures
• Narrow spaces and complex routing installations

Technical Specifications

Parameter	Typical Value
Fiber Type	Single-mode optical fiber
Standard	ITU-T G.657.A2 / Compatible with G.652.D
Operating Wavelength	1310 / 1550 nm
Attenuation @ 1310 nm	≤ 0.35 dB/km
Attenuation @ 1550 nm	≤ 0.21 dB/km
Cut-off Wavelength	In accordance with relevant standards
Mode Field Diameter @ 1310 nm	8.6–9.5 μm
Cladding Diameter	125.0 ± 0.7 μm
Coating Diameter	245 ± 10 μm
Bend Performance	Excellent, suitable for small bending radius applications
Application Environment	Indoor, FTTH, access network, data center

Why Choose Our G.657.A2 Optical Fiber

We provide high-quality bending insensitive single-mode optical fiber manufactured in accordance with international standards. Our products are designed to deliver reliable optical performance, strong mechanical properties, and long-term stability in demanding network environments.

With mature production technology and strict quality control, we are able to provide dependable fiber solutions for global customers in telecommunications, cabling, and network infrastructure industries.

What We Offer

• Consistent product quality
• Stable bulk supply capacity
• Custom specification support
• Professional technical assistance
• Fast response for international business needs

FAQ

1. What is G.657.A2 optical fiber?

G.657.A2 optical fiber is a bending insensitive single-mode fiber designed for applications that require tight bending performance and stable signal transmission. It is widely used in FTTH, indoor cabling, access networks, and high-density fiber installations.

2. What is the difference between G.657.A2 and G.652.D fiber?

G.657.A2 fiber offers much better bend resistance than standard G.652.D fiber, especially in small-radius installation environments. At the same time, it remains compatible with G.652.D systems, making it suitable for both new deployments and network upgrades.

3. Is G.657.A2 fiber compatible with existing G.652.D networks?

Yes. G.657.A2 fiber is fully compatible with G.652.D optical fiber systems, which allows easy integration into existing telecom and broadband networks without major infrastructure changes.

Related product

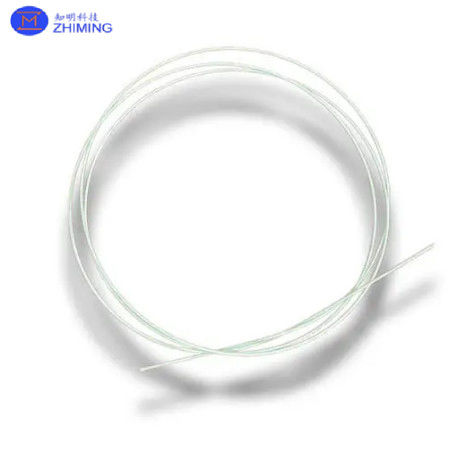

YAG Fiber For Optic Communication Network Tensile Strength >2200 MPa Dia 25-500 Μm A-axis, C-axis
