| Categories | Oil Injected Screw Compressor |
|---|---|
| Brand Name: | AIRERA |
| Model Number: | AGCD-30D C |
| Certification: | ISO、CE、TUV |
| Place of Origin: | made in China |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | TT/LC,Western Union,D/P,D/A |
| Supply Ability: | 2,000-3,000 per month |
| Delivery Time: | 5-15 days |
| Packaging Details: | wooden case |
| Cooling air flow（m3/hr）: | 9200 |
| Application: | Medical, Pharmaceutical, Food Processing |
| Oil Content: | Oil inject |
| Working Pressure: | 0.7-1.3Bar |
| Cooling type: | Air cooling |
| Driven type: | Direct driven |
| Company Info. |
| Shanghai Bestcomp Compressor Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures on request.

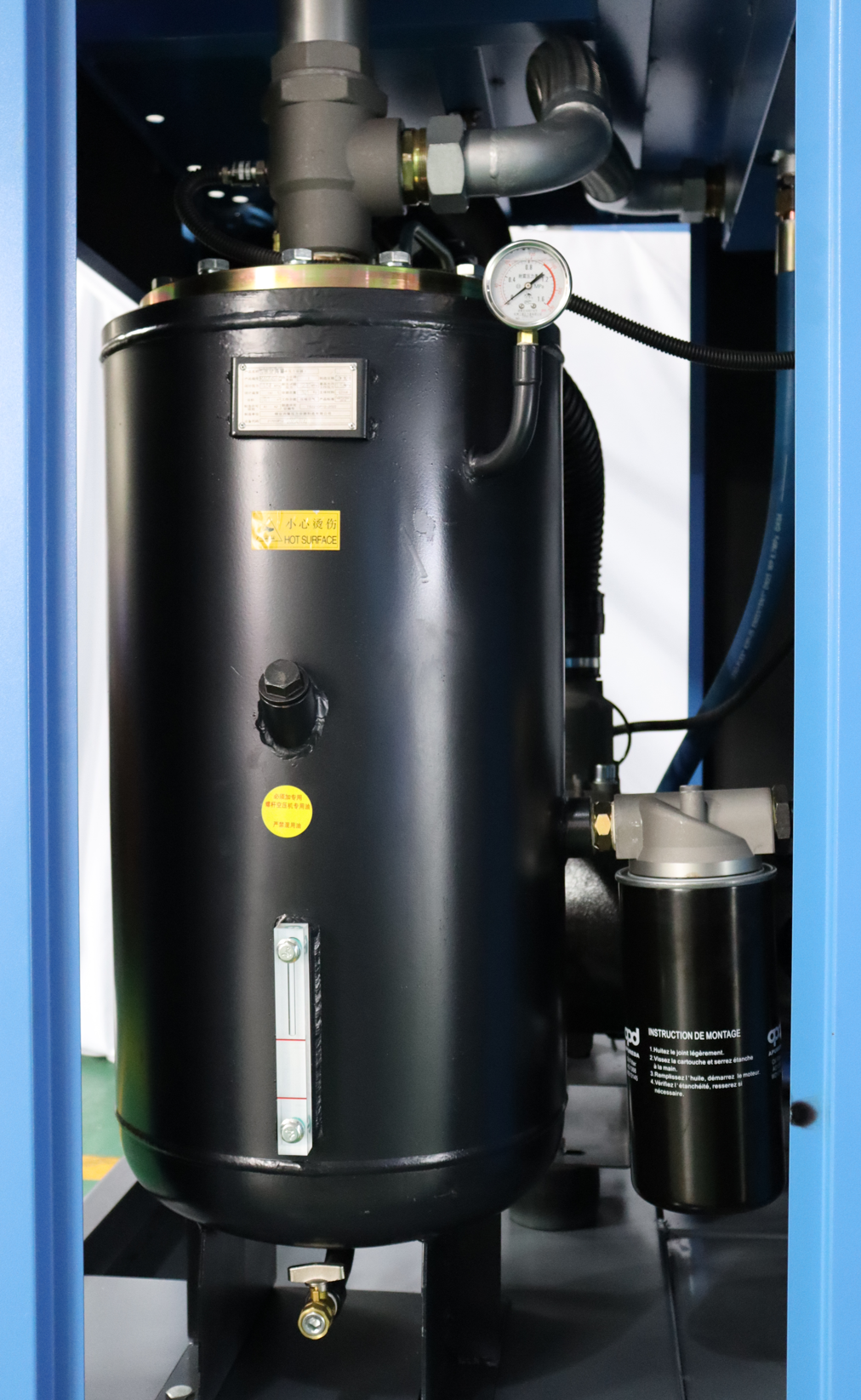

The amount of oil in the units is determined in such a way as to extend the oil change intervals (depending on ambient conditions). An oil level sensor is integrated as standard and is read by the controller. All the units in this series have a horizontal oil separation vessel in which the oil is separated from the compressed air highly efficiently at low speeds.
| ITEM | UNIT | MODEL AGCD-30 |
|---|---|---|
| Free air delivery | m³/min | 5.2~3.6 |
| Max. working pressure | MPa | 0.7~1.3 |
| Compressor type | Oil inject screw compressor | |
| Cooling type | Air cooling | |
| Driven type | Direct driven | |
| Inlet status - Temperature | ℃ | ≤45 |
| Inlet status - Pressure | MPa | Atmospheric pressure |
| Inlet status - Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤72 |
| Residual oil content | ppm | ≤2 |
| Drive rotor speed | rpm | 2950 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m³/hr | 9200 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.77 ~ 1.43 |
| Lubricating oil volume | L | 30 |
| Compressed air outlet connection | G1-1/2 | |
| Dimension - L | mm | 1400 |
| Dimension - W | mm | 1000 |
| Dimension - H | mm | 1400 |
| Net Weight | kg | 715 |

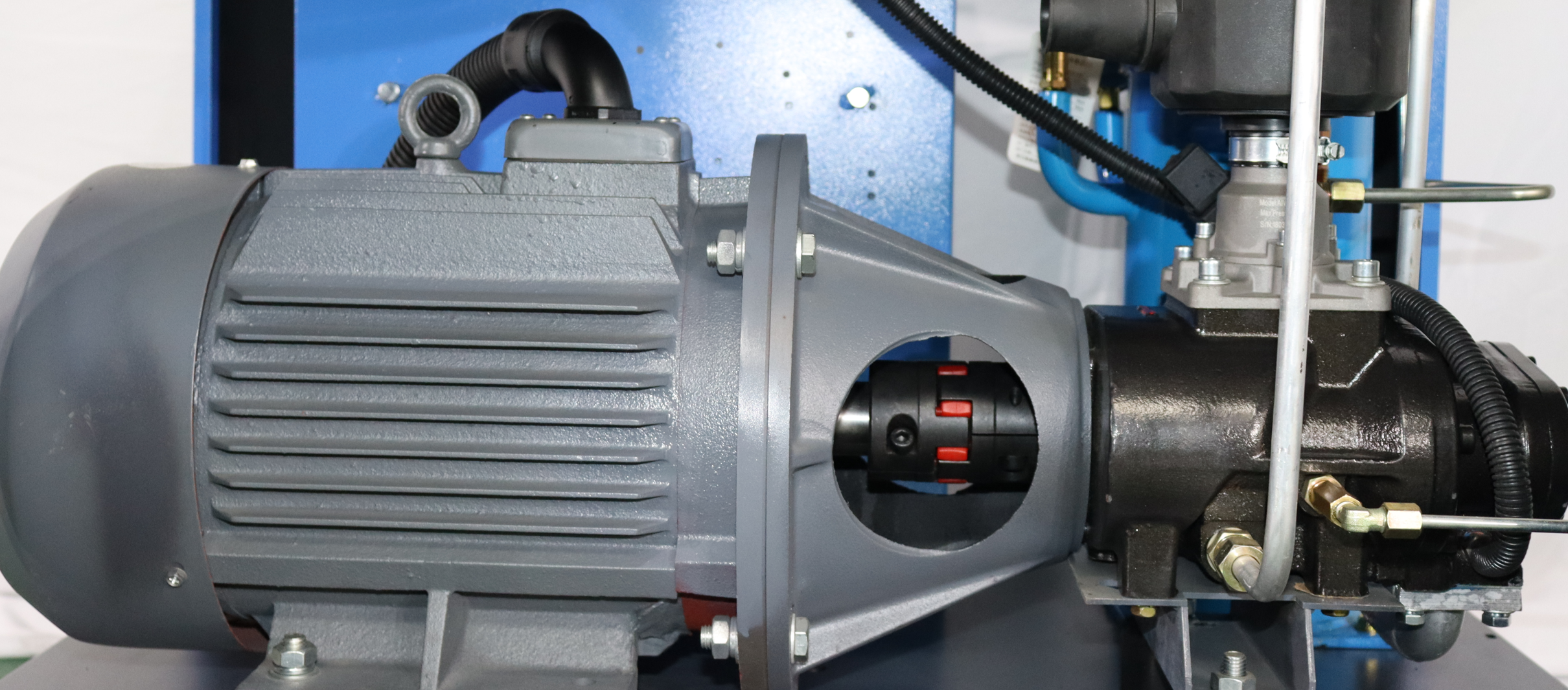

| Motor - Model | Y2180L1-2 | |
| Motor - Speed | rpm | 2950 |
| Motor - Rated Power | KW | 30 |
| Motor - Service factor | 1.2 | |
| Motor - Efficiency | IP55 | |
| Motor - Startup mode | Y-Δ starting | |
| Motor - Voltage | V | 380 (Special on request) |
| Motor - Frequency | Hz | 50 (Special on request) |
| Motor - Rated current | A | 56.9 |
| Motor - Weight of motor | kg | 232 |
