The High-flow 850-2 Mud Pump Boasts Strong Power

Categories Drilling Rig Mud Pump
Brand Name: Shitan
Product Name: BW 850/2 Mud Pump
stroke mm: 150
Horse Power: 37KW
Engine: Diesel Engine/Motor power
MOQ: 1 set
Cylinder bore mm: 82
Output: 850L/min
Packing Size: 2000*1030*1400mm
weight kg: 1500
Model Number: BW850/2 Mud Pump
Certification: ISO
Place of Origin: Jinzhou ,China
Packaging Details: Wooden Box
Price: Negotiable
Payment Terms: TT,Western Union
Supply Ability: 1000 sets per month
Delivery Time: 7 days after payment
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

The High-flow 850-2 Mud Pump Boasts Strong Power

High-flow 850-2 Mud Pump with Strong Power
Factory Price BW850/2 Mud Pump for Drill Rig Equipment. The BW850/2 mud pump is a horizontal double-cylinder single-acting reciprocating piston pump, serving as essential equipment in drilling operations. It efficiently circulates mud water under pressure, transports rock debris to the surface, cools the drill bit, lubricates tools, and protects the wellbore, directly impacting drilling efficiency and operational safety.
Product Specifications
AttributeValue
Product NameBW 850/2 Mud Pump
Stroke150 mm
Pump Speed180 mm
Cylinder Diameter82 mm
Flow Rate850 L/min
Power2.0 MPa
Horse Power4105
EngineDiesel Engine/Motor Power
Packing Size2000 * 1030 * 1400 mm
Weight1500 kg
Core Working Principle
The power machine drives the gear transmission inside the crankcase, converting rotary motion into the reciprocating motion of the crosshead and piston rod. This drives the piston to advance and retreat alternately within the cylinder liner. When the piston retreats, the suction chamber volume increases and pressure decreases, causing the suction valve to open and draw in mud. When the piston advances, the suction chamber volume decreases and pressure increases, closing the suction valve and opening the discharge valve to pump high-pressure mud through the pipeline to the drilling site.
The dual-cylinder, dual-acting design ensures stable displacement. Combined with a variable speed mechanism for adjustable stroke frequency, it enables switching between different flow rates (850/600 L/min) and corresponding pressures (2.0/3.0 MPa), meeting various drilling requirements.
Common Fault Handling
  • Insufficient displacement / no liquid discharge: Adjust immersion depth of suction tap, clear blockages, replace worn pistons/cylinder liners, and tighten seals
  • Difficulty in operation: Adjust clearance between piston and cylinder liner, and adjust fit clearance of connecting rod bearing shell
  • Significant pressure fluctuation: Check and rectify faults in suction and discharge valves
Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order

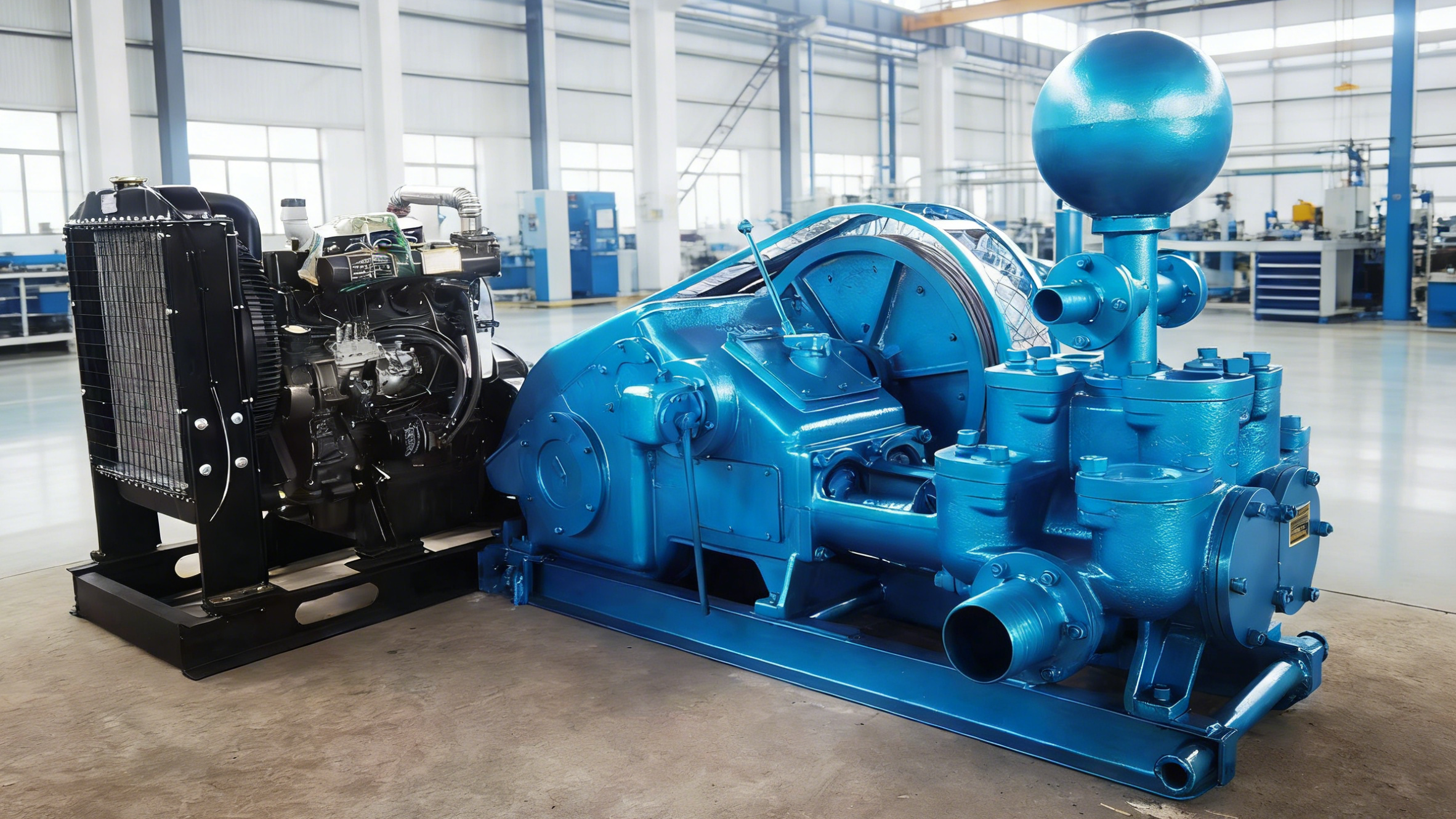

BW850 Mud Pump front view

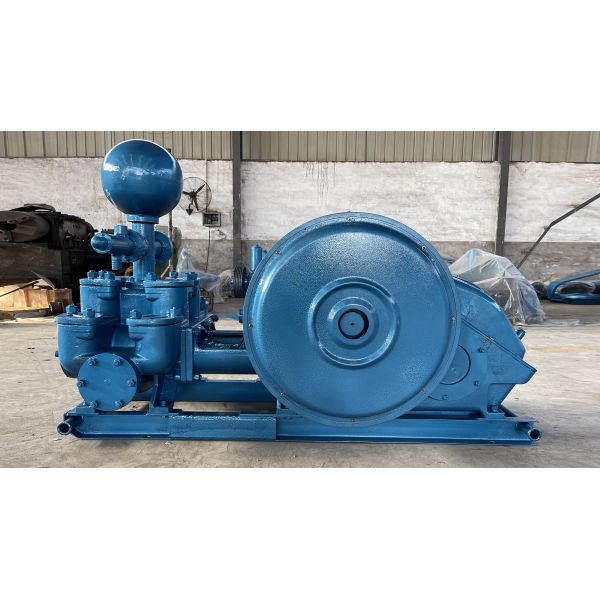

BW850 Mud Pump side view
BW250 Mud Pump side view with detailed components
BW250 Mud Pump operational close-up
BW250 Mud Pump connection details
BW250 Mud Pump in drilling rig setup
BW250 Mud Pump maintenance view
BW250 Mud Pump industrial application
