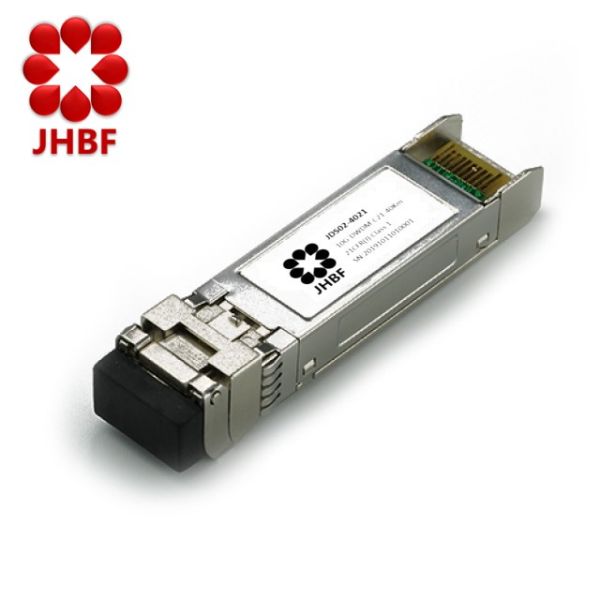

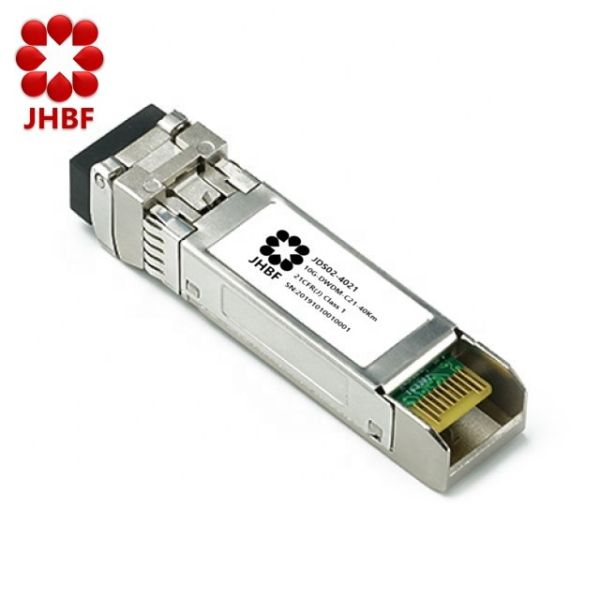

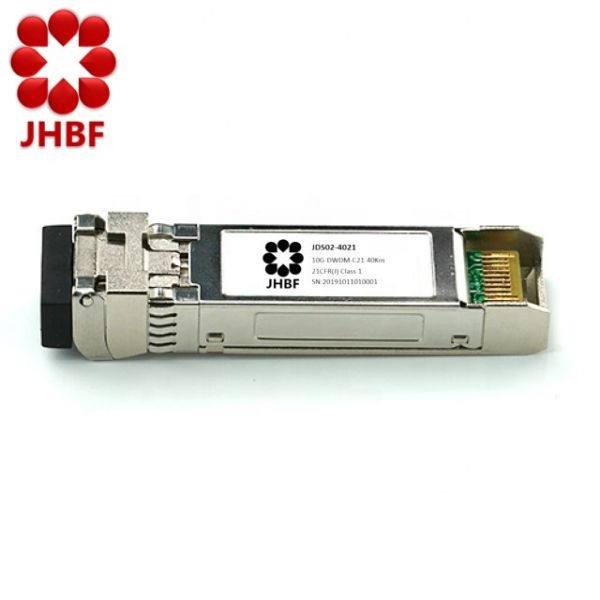

10G DWDM 40/80km C21-C60 SFP Optical Module For Network Connectivity

Categories	Others
Model Number:	JDS02
Place of Origin:	Beijing, China
Brand Name:	JHBF
Packaging Details:	10 pcs in 1 Box
Supply Ability:	500 Piece/Pieces per Month
MOQ:	2 pieces
Price:	$150.00 - $230.00/pieces
Use:	FTTX
Application:	(Data Center)
Data Rate:	1.25G-10G bits/s
Distance:	40/80km
Wavelength:	C21-C60 (1560.61-1529.55nm)
Tx/Rx Component:	EML/PIN
Temperature:	0~70
Frequency:	192.1-196.0Thz
Connector:	LC
Compatible:	Cisco, H3c, Huawei
Power consumption:	<1w
Port:	Tianjin

Contact Now

Add to Cart

Company Info.

Tianjin Janhoo Optoelectronics Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

10G DWDM 40/80km C21-C60 SFP Optical Module For Network Connectivity

Products Description

10G DWDM 40/80km C21-C60 SFP+ Optical Module for DWDM equipments

JHBF DWDM SFP/SFP+ optical transceiver series support 100M -10Gbits/s and 40Km/80km/120km transmission. It adopts standard LC interface and standard SFP/SFP+ metal case and has good EMI/ESD performance.
JHBF DWDM SFP/SFP+ optical transceiver series conform to the international standards (ITU-T and IEEE), and strictly follow the MSA
(Multi-Source Protocol), which are compatible with the interfaces of all brands optical equipment manufacturers.
They are widely used in optical transport network (DWDM/OTN equipment), 5G mobile back haul and front haul network, and data center interconnection.

Details Images

Features

* Support multi-service, such as STM1/4/16/64, FC2/4/8/10, CPRI1/2/3/4/5/6/7/10, FE/GE/10GE, OTU1/OTU2 and so on.
* Support all ITU-T DWDM wavelength C21-C60. Combined with the DWDM multiplexer. It can transport multi-channel service in one fiber.
* Low power consumption, reduces the heat dissipation requirement of equipment.
* Metal shell. It has good heat dissipation and EMI/ESD performance.
* Comply with SFF-8472 MSA and SFP+ MSA compatible with the interfaces of all brands optical equipment manufacturers.
* Conform to Class 1 laser safety standards (IEC 60825-1 and IEC 60825-2).
* Conform to Rohs6 standard.

Applications

It can be widely used in 2G/3G/4G/5G base staion for mobile fronthual and mobile backhaul network. And it can be used in routers or switches or OTN/DWDM equipment in data center or carrier central office.
* 100M/1000M/10G Ethernet
* SDH /SONET(STM-1/4/16/64)
* Fiber channel, FC1/2/4/8/10

* Mobile fronthual (CPRI option1/2/3/4/5/6/7/10)

* OTN (OTU1, OTU2)

Specifications

Number	Data rate	Wavelength	Tx/Rx	Tx power	Overload	Sensitivity	Distance
Number		(bit/s)	ITU-T CH		(dBm)	(dBm)	(dBm)	(Km)
JDS22-40xx	100M~1.25G	C21-C60	DWDM EML/PIN	(-2,3)	-3	-22	40
JDS22-80xx	100M~1.25G	C21-C60	DWDM EML/APD	(-2,3)	-3	-26	80
JDS22-T2xx	100M~1.25G	C21-C60	DWDM EML/PIN	(0,5)	-7	-32	120
JDS02-40xx	1.25~11.3G	C21-C60	DWDM EML/PIN	-4.7~+4	-1	-15	40
JDS02-80xx	1.25~11.3G	C21-C60	DWDM EML/APD	0~+5	-7	-23	80

Certifications

ISO9001 Quality Management System Certificate

ISO14000 Environmental Management System Certificate

ISO18000 Occupational Health And Management System Certificate

Trade Mark-JHBF

Registration for foreign trade

Certificate of Credit Rating-AAA

More Products

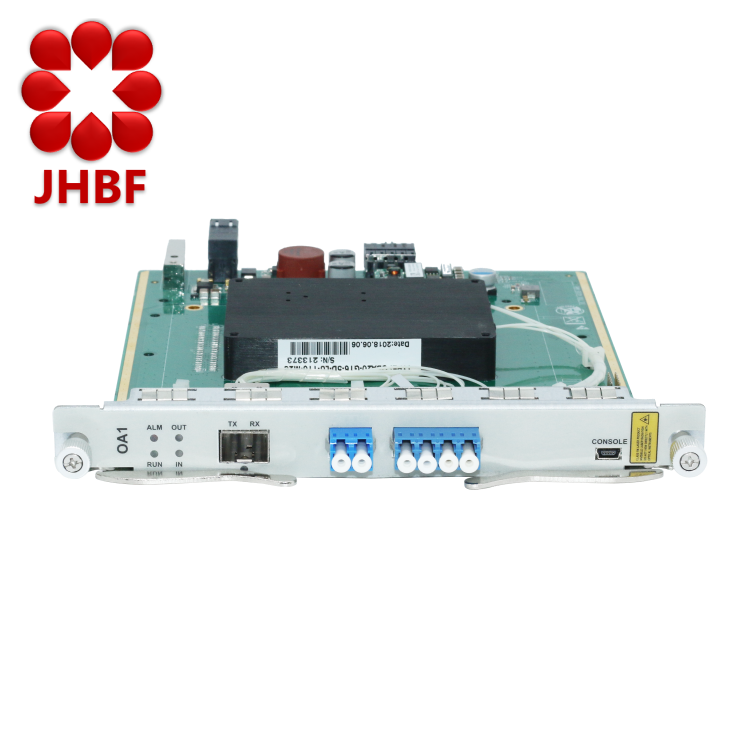

Optical Amplifier Card, DWDM EDFA.

XFP EDFA Mini Optical Amplifier 17dBm for DWDM C band.

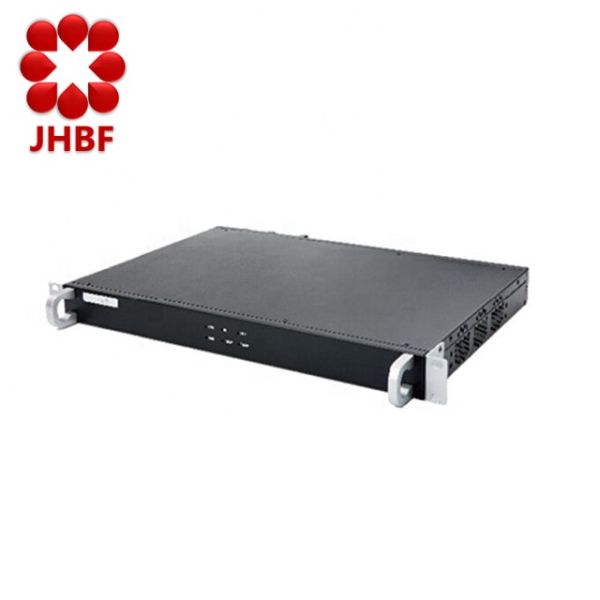

1U Rack High Output Power 26dBm EDFA

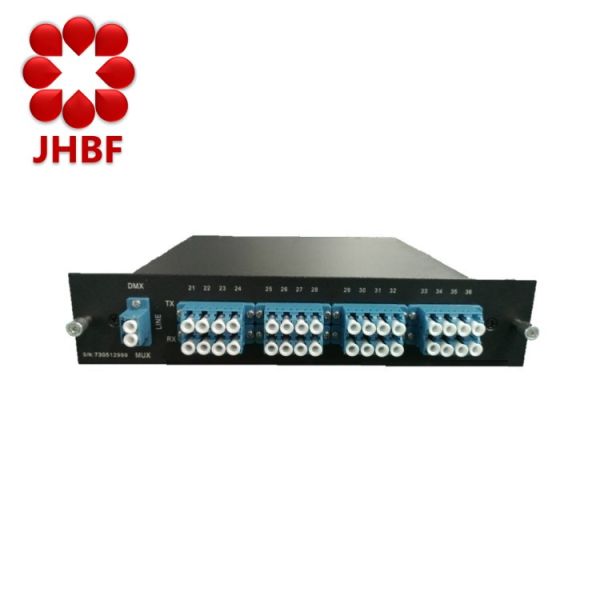

DWDM 4ch 8ch 16ch 32ch 40ch Multiplexer

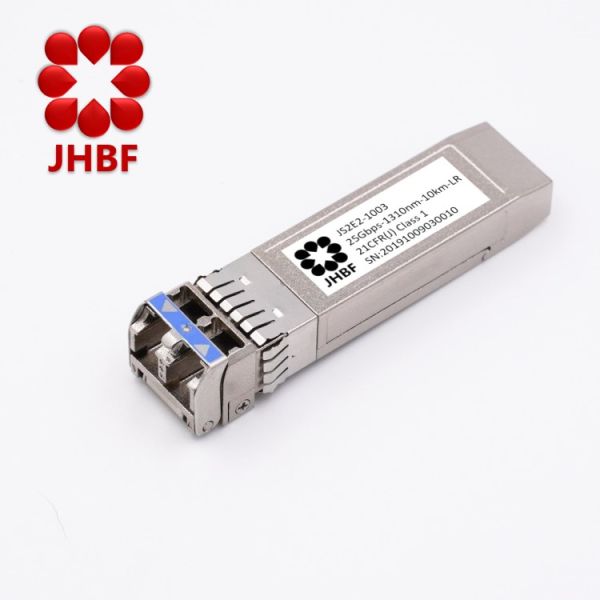

DWDM 25G 10G 1.25G SFP28 SFP+ SFP
