Model NYB White Color SS304 Pressure Leaf Filter with Insulate
Jacket
The NYB high efficiency plate hermetic filter is a high-efficient,
energy-saving and hermetically operated fine filtration equipment.
It is widely used in chemical, petroleum, painting, foodstuff,
pharmaceutical and many other industries.
Product Application

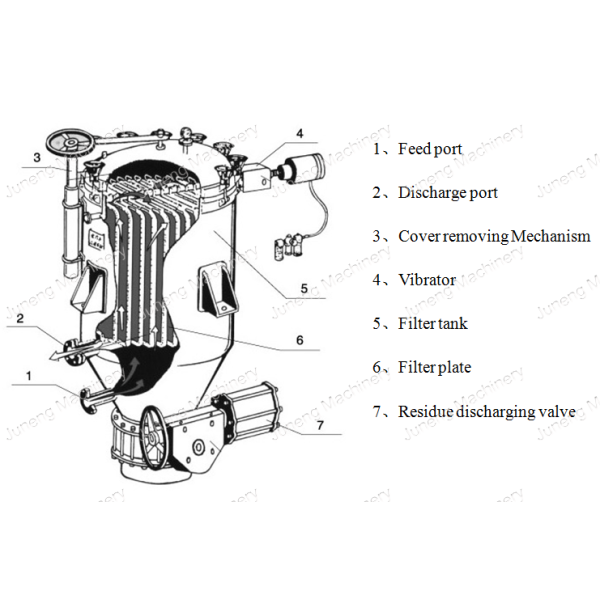

The filter is composed of shell, filtration plate, cover, and
automatic dump device. The filtration plate is made of multiple
layers of stainless steel filtration materials and installed on the
central liquid collection pipe, allowing for convenient dismantling
and cleaning.
Technical Specifications
| Model | Filtration area (㎡) | Filter cake volume (L) | Treatment Capacity - Oil | Treatment Capacity - Resin | Treatment Capacity - Beverage | Rated pressure (Mpa) | Max pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 1-1.5 | 0.1-0.4 | 0.1-0.4 | 0.5 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 2-3 | 2-5 | | | | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 3-6 | 4-7 | | | | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 5-8 | 6-9 | | | | 800 |
| NYB-12 | 12 | 240 | 2-4 | 6-9 | 8-11 | | | | 1000 |
| NYB-15 | 15 | 300 | 3-5 | 7-12 | 10-13 | | | | 1300 |
| NYB-20 | 20 | 400 | 4-6 | 9-15 | 12-17 | | | | 1680 |
| NYB-25 | 25 | 500 | 5-7 | 12-19 | 16-21 | | | | 1900 |
| NYB-30 | 30 | 600 | 6-8 | 14-23 | 19-25 | | | | 2300 |
| NYB-36 | 36 | 720 | 7-9 | 16-27 | 23-31 | | | | 2650 |
| NYB-40 | 40 | 800 | 8-11 | 21-34 | 30-38 | | | | 2900 |
| NYB-45 | 45 | 900 | 9-13 | 24-34 | 36-44 | | | | 3200 |
| NYB-52 | 52 | 1040 | 10-15 | 27-45 | 42-51 | | | | 3800 |
| NYB-60 | 60 | 1200 | 11-17 | 30-52 | 48-60 | | | | 4500 |
| NYB-70 | 70 | 1400 | 12-19 | 36-60 | 56-68 | | | | 5800 |
| NYB-80 | 80 | 1600 | 13-21 | 40-68 | 64-78 | | | | 7200 |
Main Features
- No cloth or filter paper required, significantly reducing
filtration costs
- Fully closed operation is environmentally friendly and prevents
material loss
- Vibration residue falling reduces labor intensity and enables
continuous operation
- Residue discharging through pneumatic valve reduces worker labor
intensity
- Suitable for activated carbon filtering or bleaching filtering,
completely replacing plate and frame filters
NYB-12 Example Configuration
- 11 filter leaves provide 12 sqm filtration area
- Leaves surrounded by heavy box channel made from 1.8 mm 316L
material
- Topside of leaf with reinforcement and one vibrator fork per leaf
(SS 316 material)
- Leaf bottom with outlet nozzle featuring "O" ring seal (SS 316
nozzle with Viton rubber "O" ring)
Butterfly Valve
NYB-12 Example Configuration
- DN 400 butterfly valve WAFER TYPE for dry cake discharge at filter
bottom
- First quality butterfly valve with NH-S seat material (up to 150°C
high temperature)
- Valve complete with pneumatic actuator double acting type with 5.5
Bar air supply
Certifications
Our company has obtained various international certifications

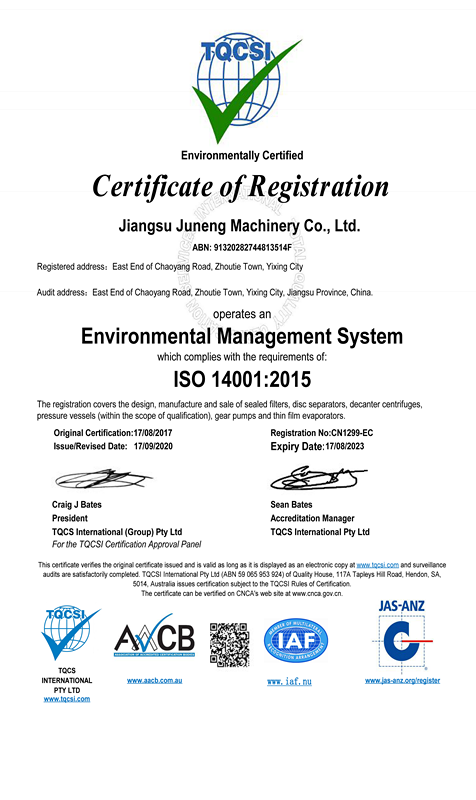

including ASME U (Certificate No.: 38793), ISO 9001:2015
